Desoutter Delta 7D - Timeout; 1 St Threshold (THR 1)

Part Number
Issue
Date
Page
6159938880
13
01/2018
147 / 249
147 (249) 01/2018

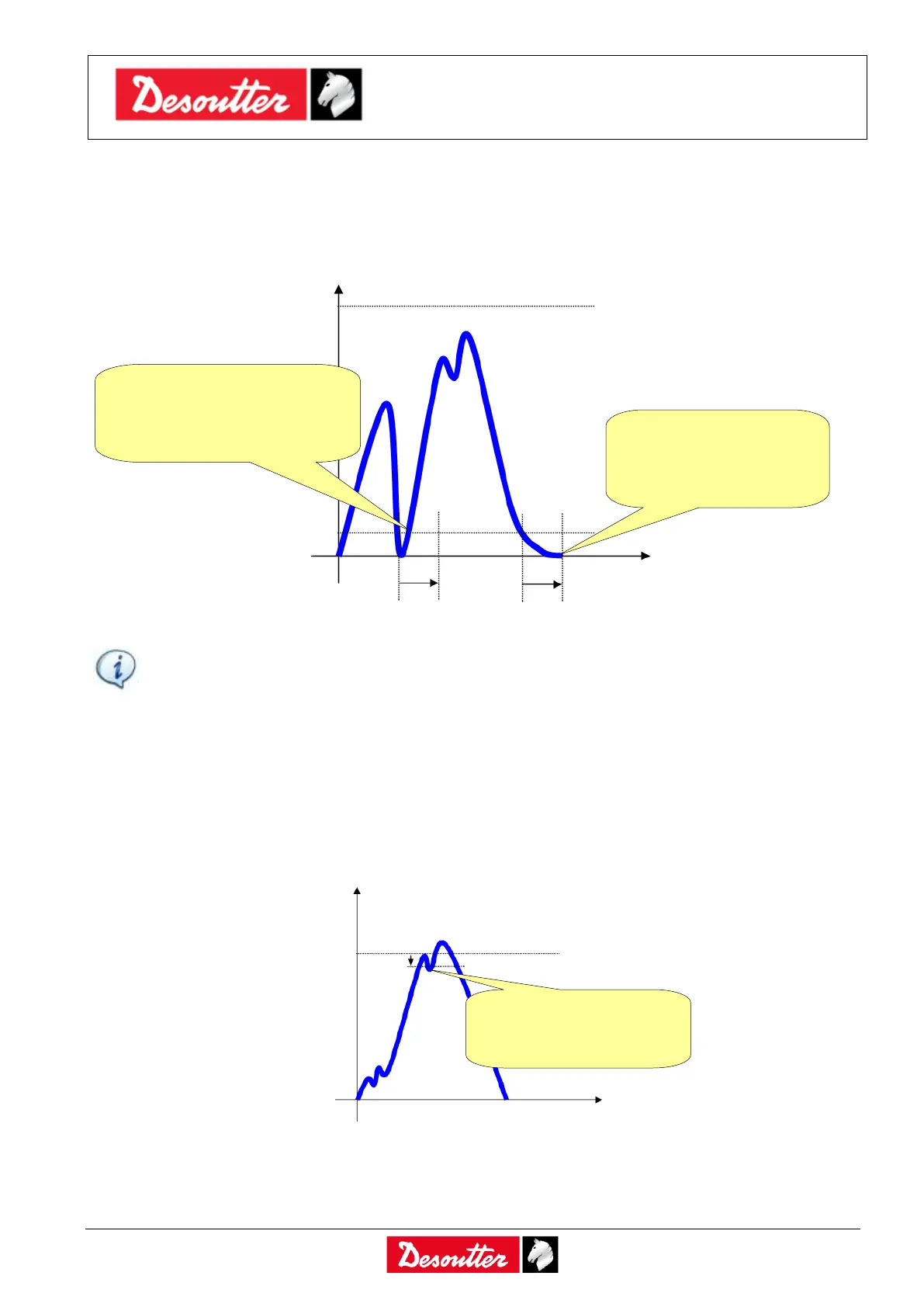

11.1.1 Timeout
The “Timeout” defines the end of the test. When the torque goes and remains below the transducer
minimum load (that is normally the 10% of the transducer full scale) for the given timeout, the test
ends.
NOTE: The “Timeout” can be set from 100 ms up to 5000 ms. The default value is 100 ms.
11.1.2 1st threshold (THR 1)
The “1
st
threshold” is used to detect the click point of the wrench.
The torque must continuously decrease from the measured peak at least for the specified value, in
order that it can be considered the click point.
The 1
st
threshold default value is 2%, and it is calculated on the relative torque peak value reached
during the test:
Torque
The test ends when
torque remains under
the transducer minimum
load for the timeout
If torque goes over
transducer minimum load
before the timeout, the test
continues
Time
Timeout
Timeout
Transducer full scale
Transducer min. load
Click point
1
st
threshold
If torque goes below the
1
st
threshold, the click-
point is detected
Torque
Time
