Deutz 2012 - 2.3 Lube Oil Circuit Schematic

Engine Description

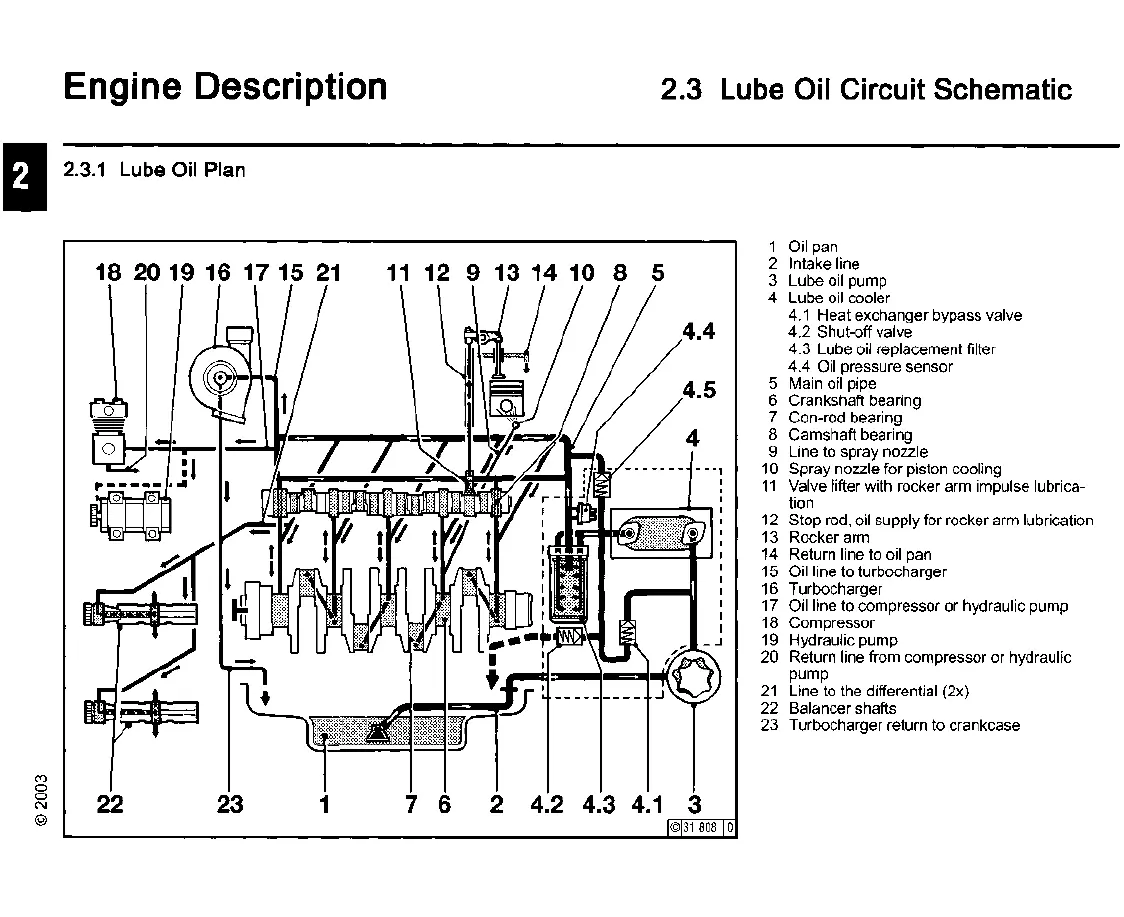

I 2.3.1 Lube Oil Plan
2.3 Lube Oil Circuit Schematic
18 20 19 16 17 15 21
(\')
o
o
C'J
©
22 23
1
11 12
7 6
5
2 4.2 4.3 4.1 3
1 Oil pan
2 Intake line
3 Lube oil pump
4 Lube oil cooler
4.1 Heat exchanger bypass valve
4.2 Shut-off valve
4.3 Lube oil replacement filter
4.4 Oil pressure sensor
5 Main oil pipe
6 Crankshaft bearing
7 Con-rod bearing
8 Camshaft bearing
9 Line to spray nozzle
10 Spray nozzle for piston cooling
11 Valve lifter with rocker arm impulse lubrica-
tion
12 Stop rod, oil supply for rocker arm lubrication
13 Rocker arm
14 Return line to oil pan
15 Oil line to turbocharger
16 Turbocharger
17 Oil line to compressor or hydraulic pump
18 Compressor
19 Hydraulic pump
20 Return line from compressor or hydraulic
pump
21 Line to the differential (2x)
22 Balancer shafts
23 Turbocharger return to crankcase
