Deutz 2012 - 9.2 Screw Tightening Torques

Technical Specification

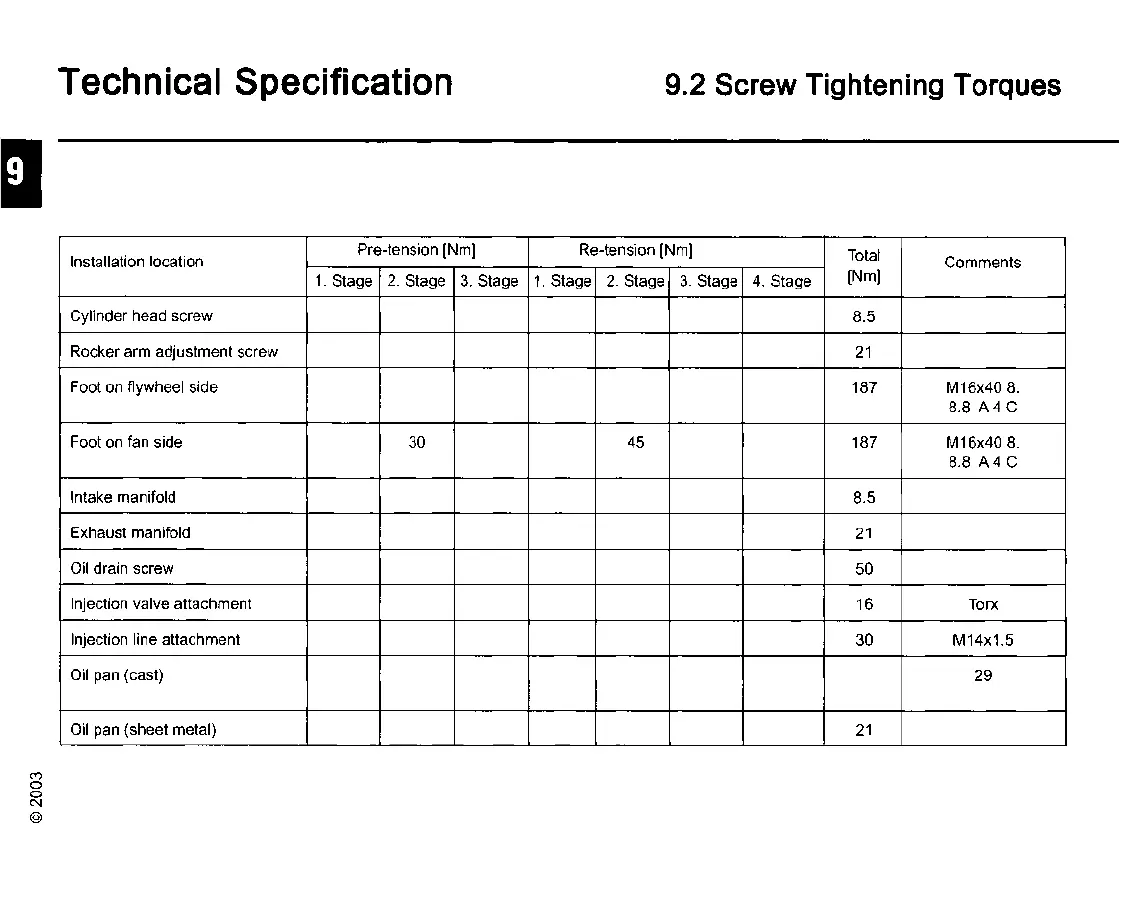

9.2 Screw Tightening Torques
('I")
o
o
""
@
Installation location
Pre-tension [Nm]
Re-tension [Nm]
Total
Comments
1. Stage 2. Stage
3. Stage 1. Stage 2. Stage
3. Stage 4. Stage
[Nm]
Cylinder head screw
8.5
Rocker arm adjustment screw
21
Foot on flywheel side
187 M16x40
8.
8.8 A4 C
Foot on fan side
30 45 187
M16x40
8.
8.8 A4 C
Intake manifold
8.5
Exhaust manifold
21
Oil drain screw
50
Injection valve attachment
16
Torx
Injection line attachment
30
M14x1.5
Oil pan (cast)
29
Oil pan (sheet metal)
21
