Deutz 2012 - 2.2 Engine Illustrations

Engine Description

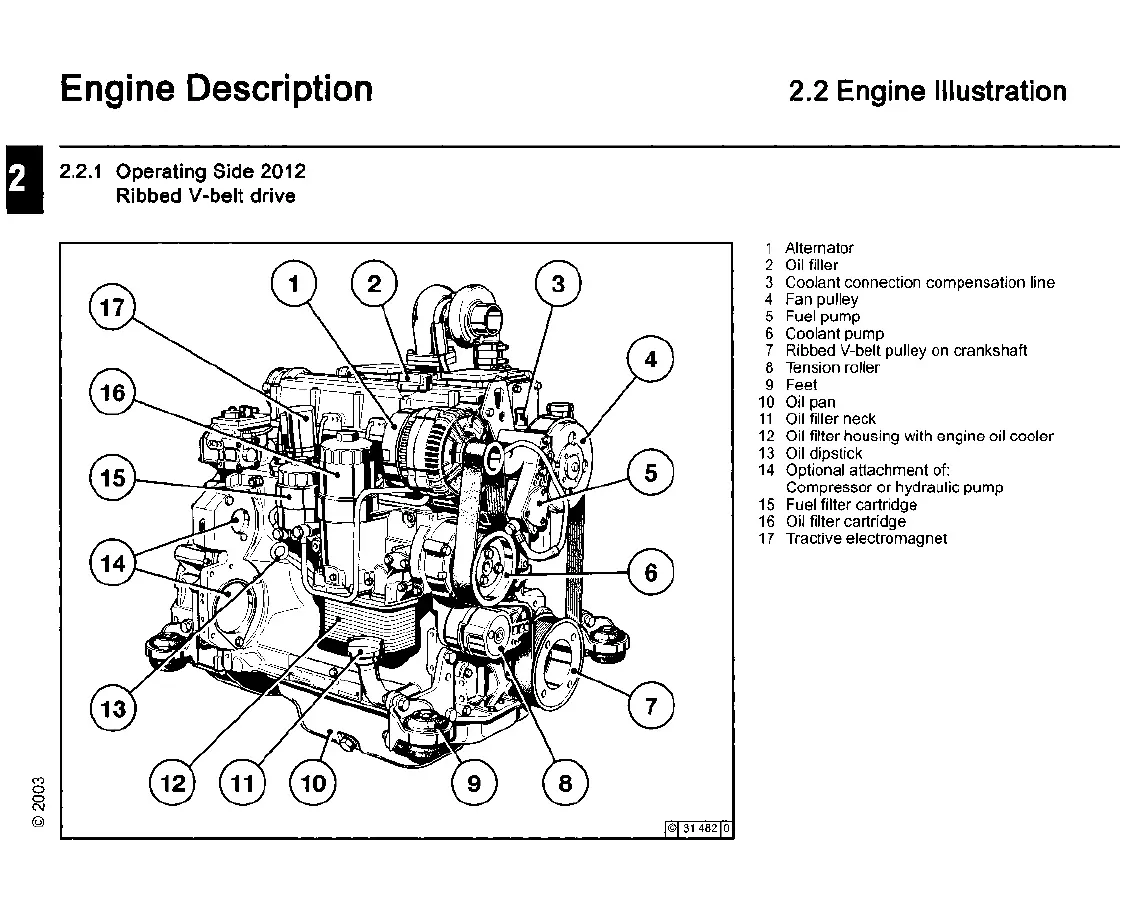

!II 2.2.1 Operating Side 2012
III Ribbed V-belt drive
2.2 Engine Illustration
('t')
o
o
N
@
1 Alternator
2 Oil filler
3 Coolant connection compensation line
4 Fan pulley
5 Fuel pump
6 Coolant pump
7 Ribbed V-belt pulley
on crankshaft
8 Tension roller
9 Feet
10 Oil pan
11 Oil filler neck
12 Oil filter housing with engine oil cooler
13 Oil dipstick
14 Optional attachment of:
Compressor or hydraulic pump
15 Fuel filter cartridge
16 Oil filter cartridge
17 Tractive electromagnet
