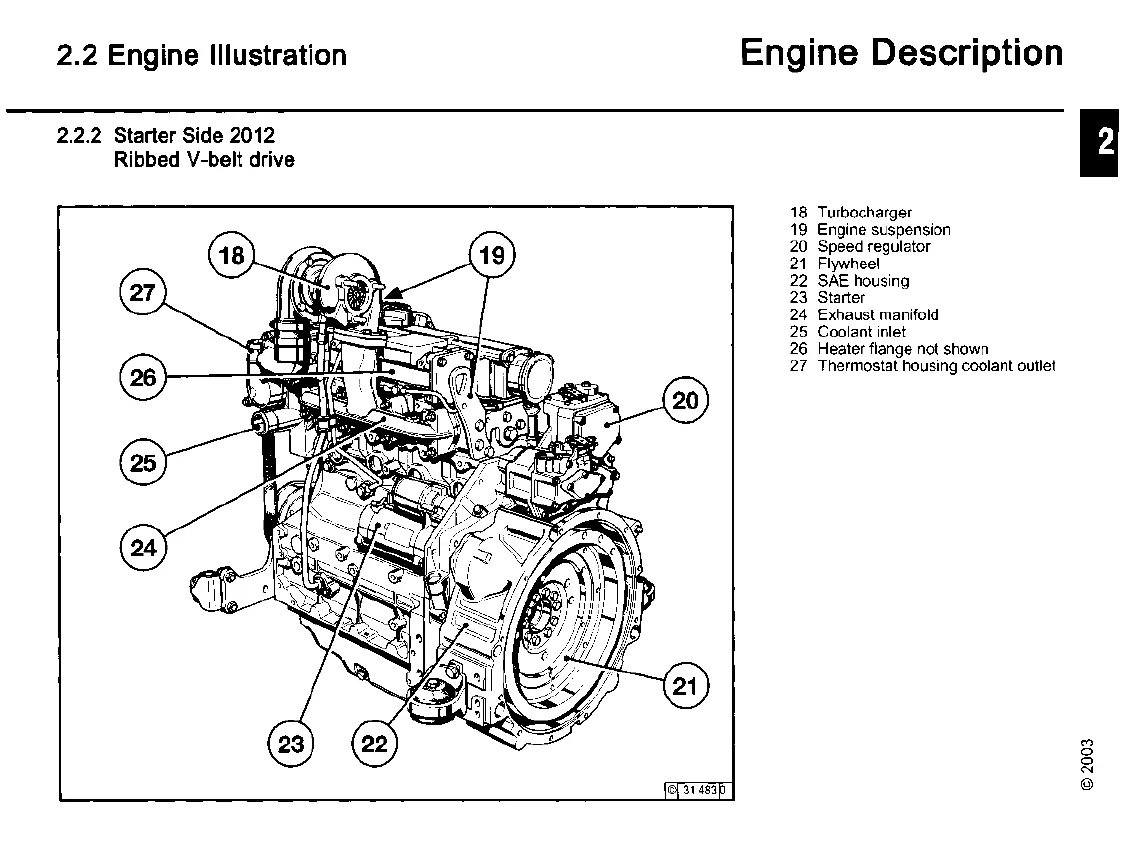

2.2 Engine Illustration
2.2.2 Starter Side 2012
Ribbed V-belt drive
Engine Description
18 Turbocharger
19 Engine suspension
20 Speed regulator
21 Flywheel
22 SAE housing
23 Starter
24 Exhaust manifold
25 Coolant inlet
26 Heater flange not shown
27 Thermostat housing coolant outlet
(\')
