Engine Description
12.2.3 Operating Side 2012

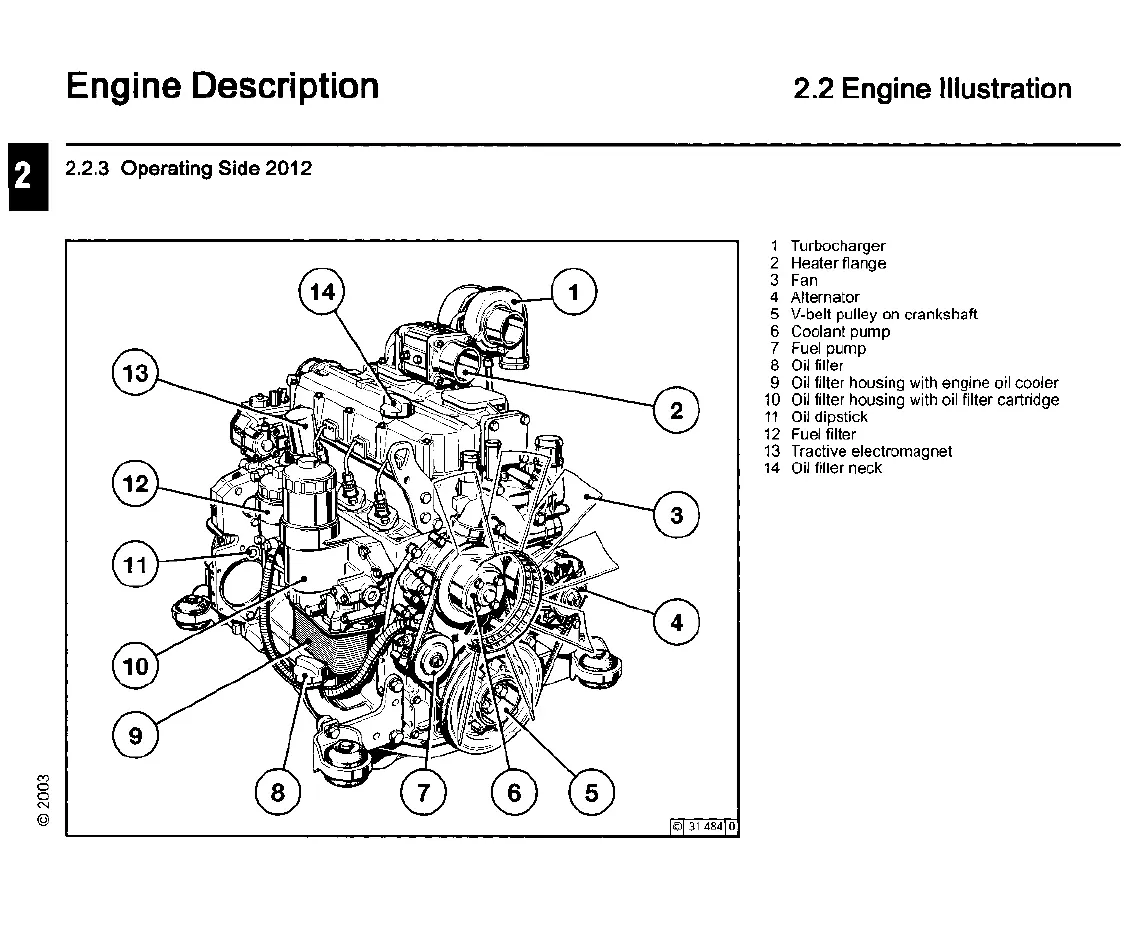

2.2 Engine Illustration
('f)
o
o
N
@
1 Turbocharger
2 Heater flange
3
Fan
4 Alternator
5 V-belt pulley
on crankshaft
6 Coolant pump
7 Fuel pump
8 Oil filler
9 Oil filter housing with engine oil cooler
10 Oil filter housing with oil filter cartridge
11 Oil dipstick
12 Fuel filter
13 Tractive electromagnet
14 Oil filler neck
