2.4 Fuel System

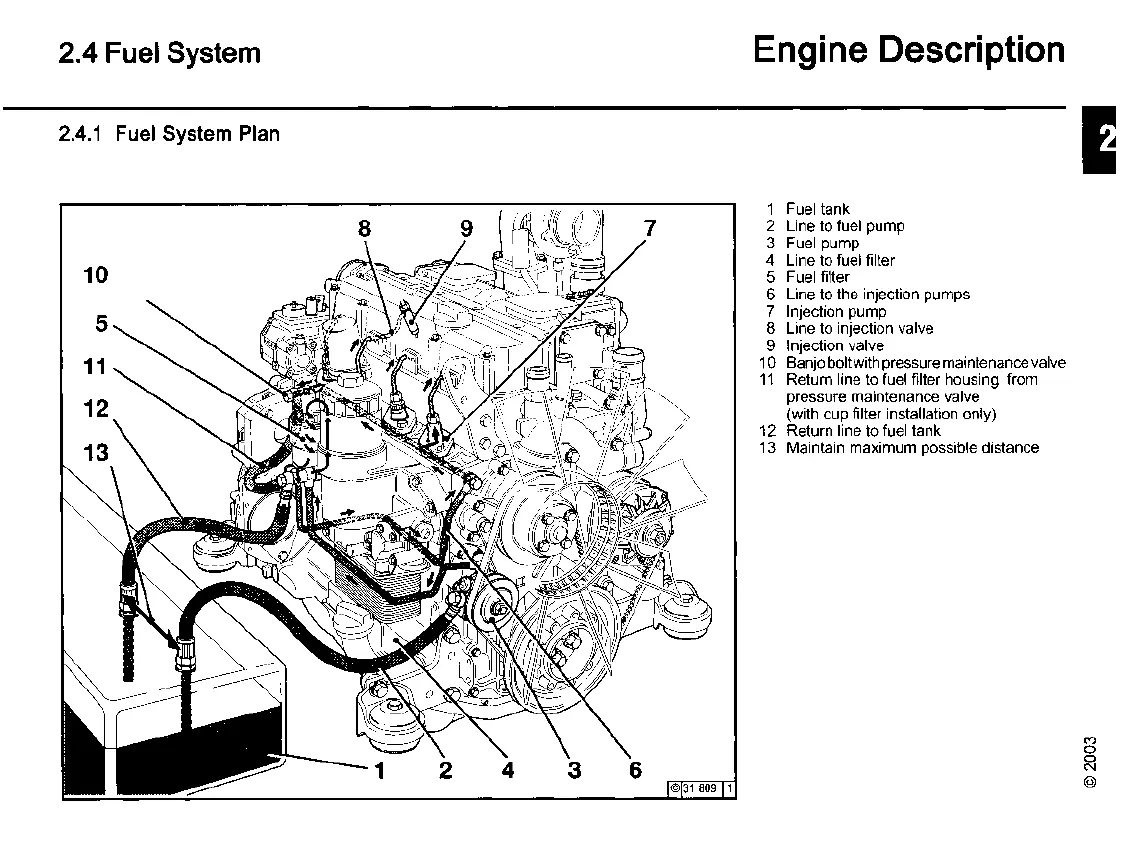

2.4.1 Fuel System Plan
Engine Description
1 Fuel tank
2 Line to fuel pump
3 Fuel pump
4 Line to fuel filter
5 Fuel filter
6 Line to the injection pumps
7 Injection pump
8 Line to injection valve
9 Injection valve
10 Banjo boltwith pressuremaintenancevalve
11 Return line to fuel filter housing from
pressure maintenance valve
(with cup filter installation only)
12 Return line to fuel tank
13 Maintain maximum possible distance
