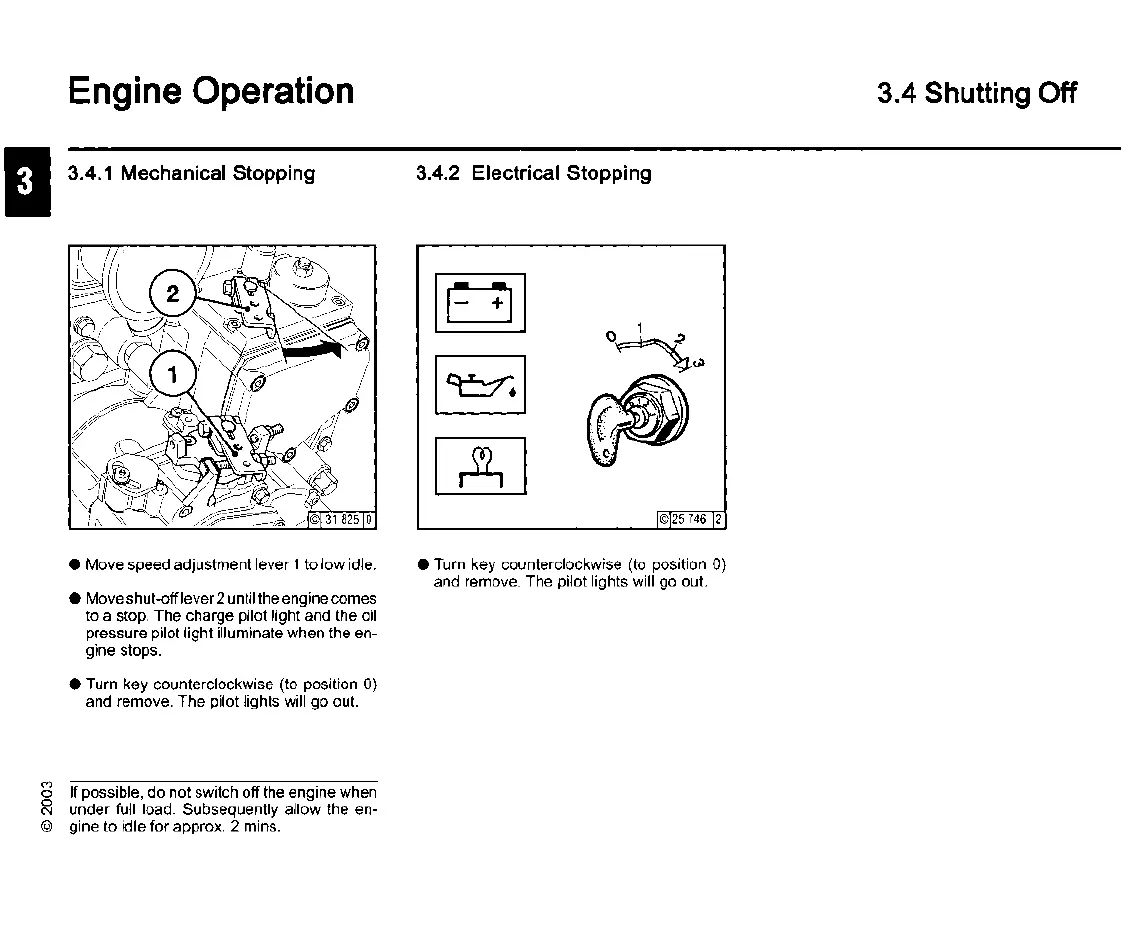

Deutz 2012 - 3.4 Shutting Off

Engine Operation
II3.4.1 Mechanical Stopping
3.4.2 Electrical Stopping
3.4 Shutting Off
• Move speed adjustment lever 1to low idle.
• Move shut-offlever2 until the engine comes
to a stop. The charge pilot light and the oil
pressure pilot light illuminate when the en-
gine stops.
• Turn key counterclockwise (to position 0)
and remove. The pilot lights will go out.
8 Ifpossible, do not switch off the engine when
~ under full load. Subsequently allow the en-
@ gine to idle for approx. 2 mins.
• Turn key counterclockwise (to position
0)
and remove. The pilot lights will go out.
