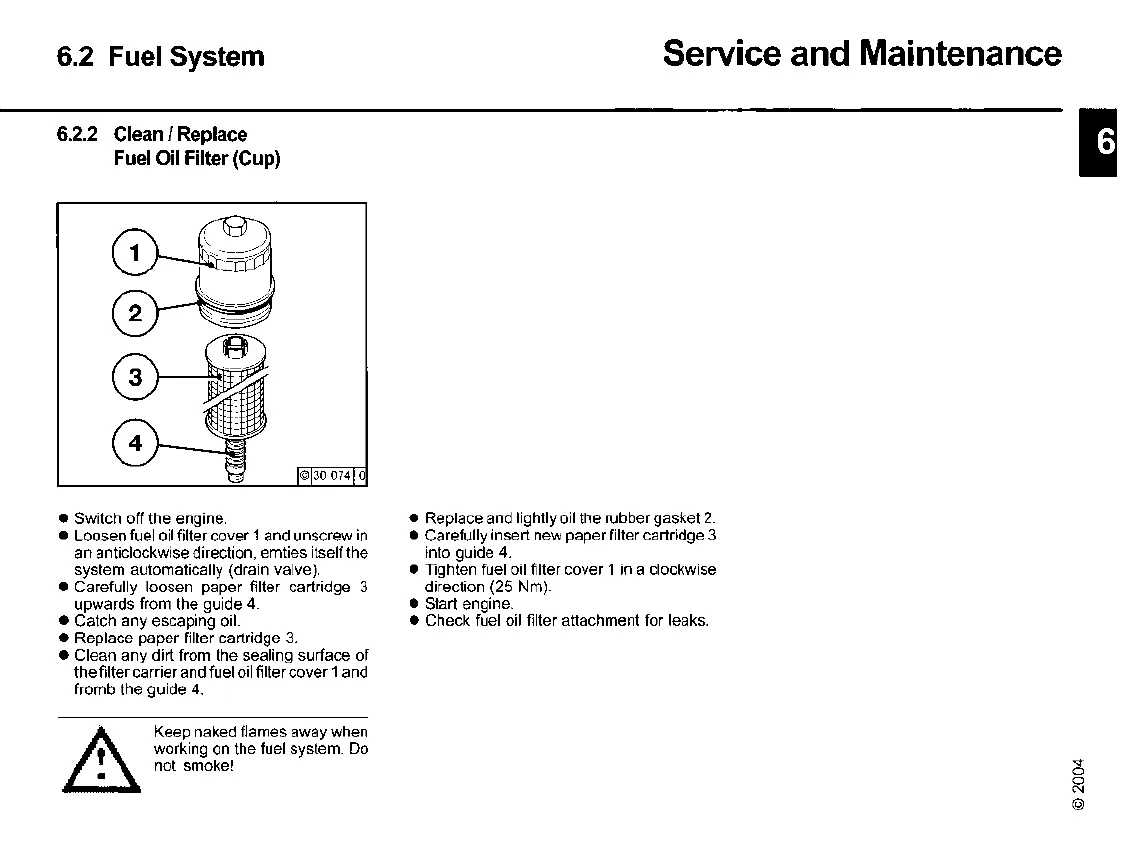

6.2 Fuel System
6.2.2 Clean I Replace
Fuel Oil Filter (Cup)
• Switch off the engine.
• Loosen fuel oil filter cover 1and unscrew
in
an anticlockwise direction, emties itselfthe
system automatically (drain valve).
• Carefully loosen paper filter cartridge 3
upwards from the guide
4.
• Catch any escaping oil.
• Replace paper filter cartridge
3.
• Clean any dirt from the sealing surface of
the filter carrier and fuel oil filtercover 1and
fromb the guide
4.
&
Keep naked flames away when
...•••.
..•••...••..•.......•.... , •...•.•..•...•••.•......•...•.•... working on the fuel system. Do
not smoke!
•
Service and Maintenance
• Replace and lightly oil the rubber gasket 2.
• Carefully insert new paper filter cartridge 3
into guide
4.
• Tighten fuel oil filter cover 1 in a clockwise
direction (25 Nm).
• Start engine.
• Check fuel oil filter attachment for leaks.
~
