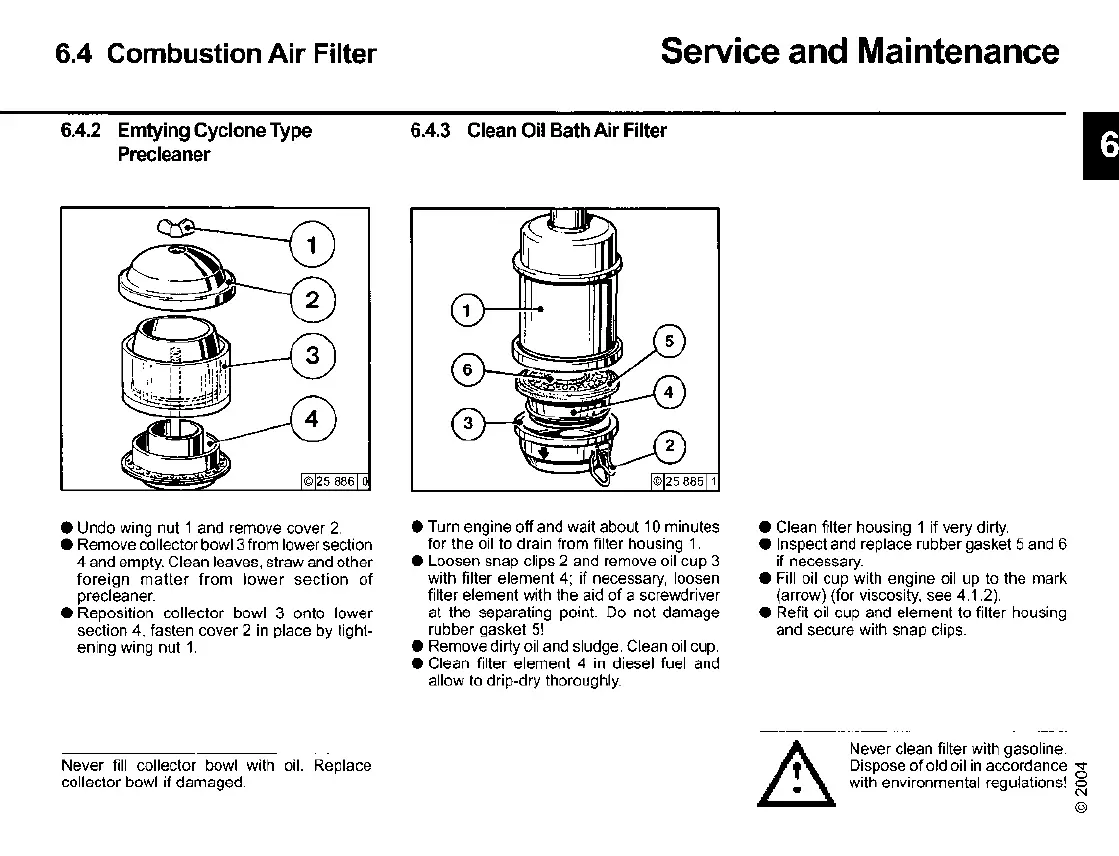

6.4 Combustion Air Filter
6.4.2 Emtying Cyclone Type
Precleaner
Service and Maintenance
6.4.3 Clean Oil Bath Air Filter
• Undo wing nut 1 and remove cover
2.
• Remove collector bowl 3from lowersection
4 and empty. Clean leaves, straw and other
foreign
matter
from
lower
section
of
precleaner.
• Reposition collector bowl 3 onto lower
section
4,
fasten cover 2
in
place by tight-
ening wing nut
1.
• Turn engine off and wait about 10 minutes
for the oil to drain from filter housing
1.
• Loosen snap clips 2 and remove oil cup 3
with filter element
4;
if necessary, loosen
filter element with the aid of a screwdriver
at the separating point.
Do
not damage
rubber gasket
5!
• Remove dirty oil and sludge. Clean oil cup.
• Clean filter element 4
in
diesel fuel and
allow to drip-dry thoroughly.
• Clean filter housing 1 if very dirty.
• Inspect and replace rubber gasket 5 and 6
if necessary.
• Fill oil cup with engine oil up to the mark
(arrow) (for viscosity, see 4.1.2).
• Refit oil cup and element to filter housing
and secure with snap clips.
Never fill collector bowl with oil. Replace
collector bowl if damaged.
Never clean filter with gasoline.
Dispose ofold oil
in
accordance 3
with environmental regulations!
~
@
