4.3. Remote Unit

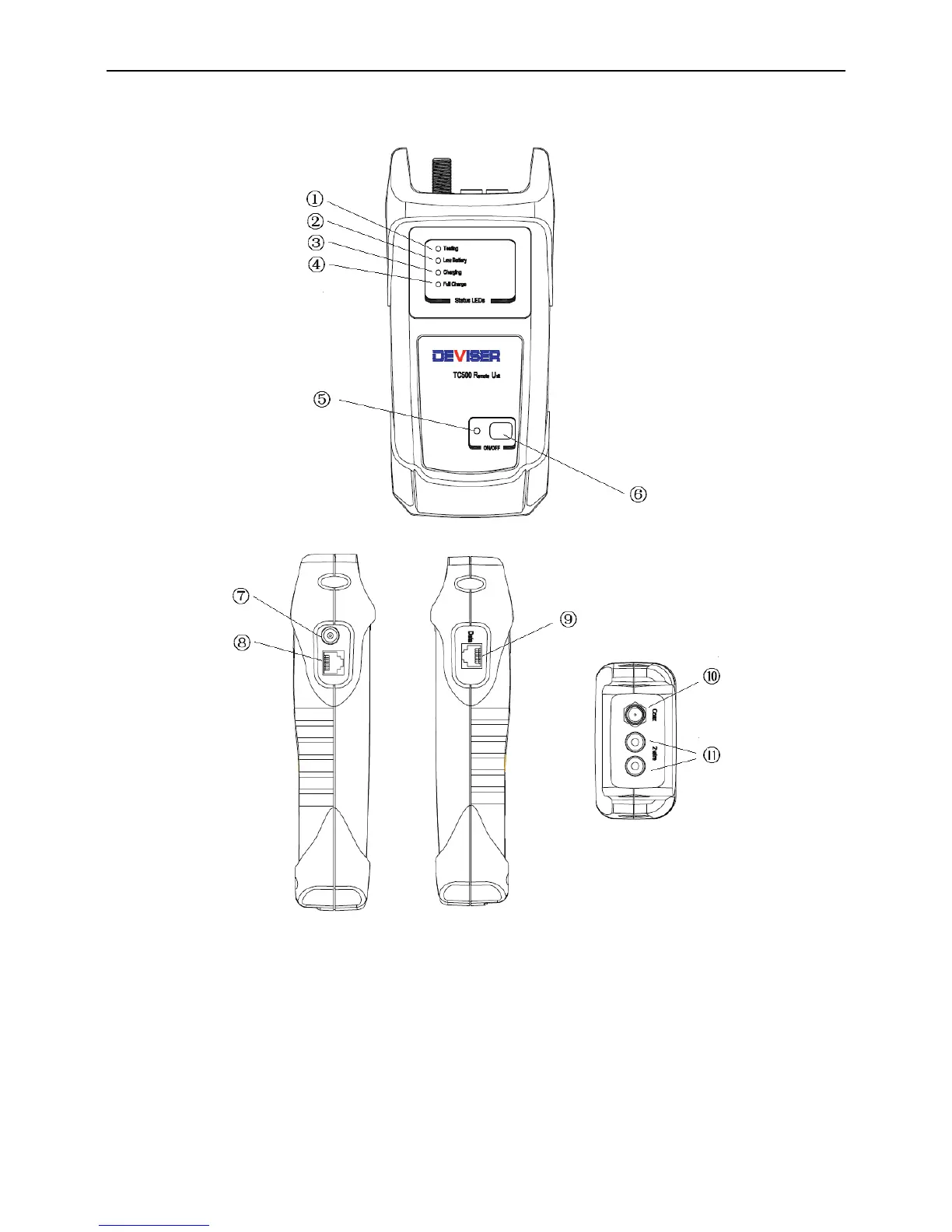

Figure2 Remote Unit
① Testing LED ② Low Battery LED ③ Charging LED
④ Full Charge LED
⑤ On/Off LED ⑥ On/Off Key
⑦ Connector for the ac adapter ⑧ RJ11 connector---Connect telephone cable
⑨ RJ45 connector---Connect UTP/STP data cable ⑩ F connector---Connect coax
⑪ Banana jacks---Connect 2-wire cable
