Deviser TC500 - Basic Features

TC500 Ethernet Cabling Certifier Operation Manual
4
4. Basic Features
4.1. Main Unit

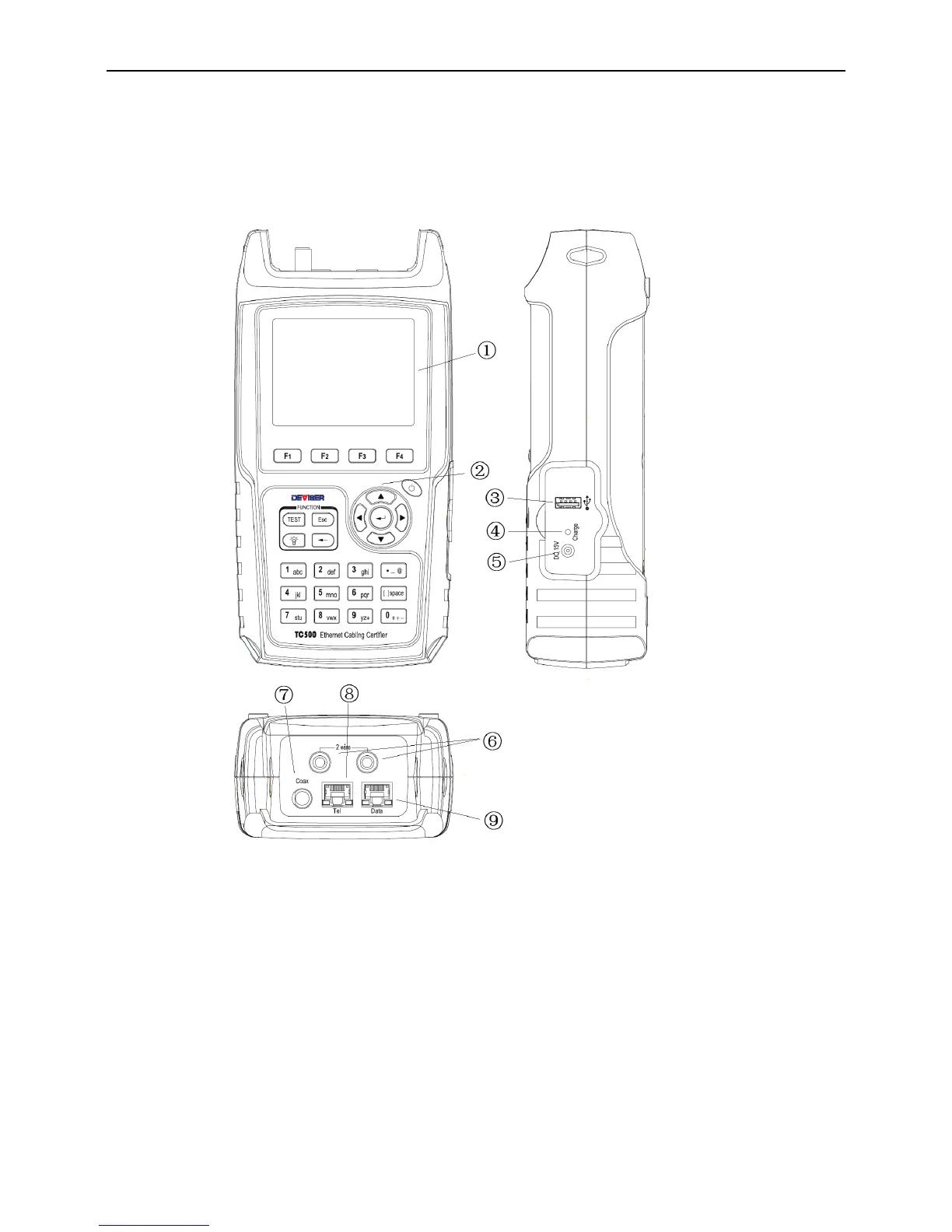

Figure1 Main Unit
① LCD ② Key Pad ③ USB Port ④ Charging LED
⑤ Connector for the ac adapter ⑥ Banana jacks---Connect 2-wire cable ⑦ F connector---Connect coax
⑧ RJ11 connector---Connect telephone cable ⑨ RJ45 connector---Connect UTP/STP data cable
