Push button
Use the ID button to dene the module address via software. Detailed information how to use the button is
available in chapter: "Installing EPAD2/CPAD2 modules in DEWESoft, Module reset".

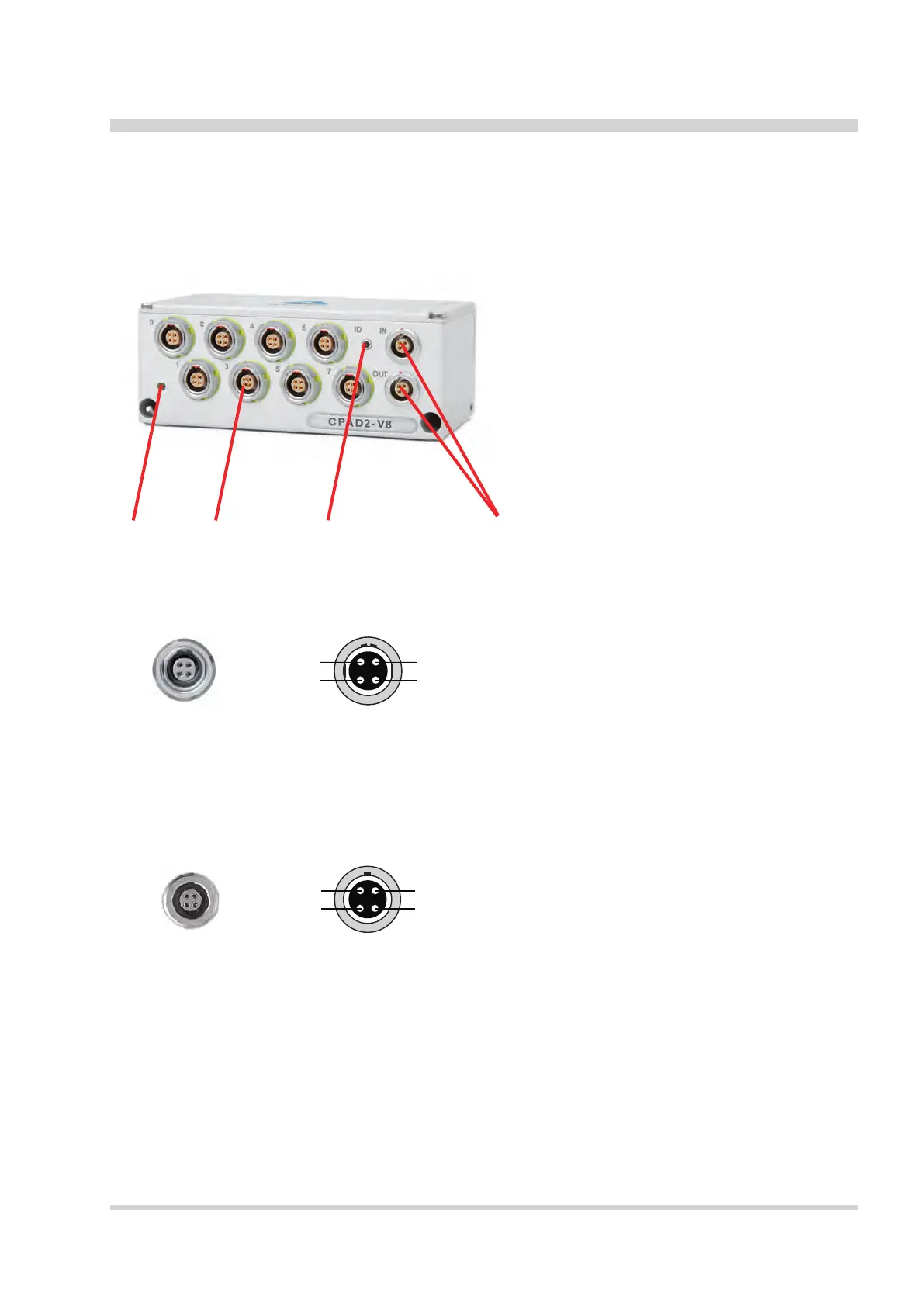

Connection
1 Voltage input connectors
2 State LED
3 ID button
4 2x xPAD2 interface connector
12 3
4
Voltage input connector
The xPAD2-V8-L1B module offers 8 differential voltage input channels.
1
2
4
3
Pin assignment:
1 Power supply (+)
2 IN (+)
3 IN (-)
4 Power supply (-)
Shield is on housing
Schematic
ECA.1B.304
xPAD2 interface connector
This connector can be used to connect the module to the EPAD-BASE2 module or other xPAD2 series
1
2
4
3
Pin assignment EPAD2:
1 RS-485 (A)
2 RS-485 (B)
3 Power supply (+)
4 GND
Pin assignment CPAD2:
1 CAN high
2 CAN low
3 Power supply (+)
4 GND
Schematic
4 pin LEMO series
connector
Programming information
The xPAD2-V8-L1B programming information is available in the DEWE-MODULES Programmers Reference
Manual.
