46

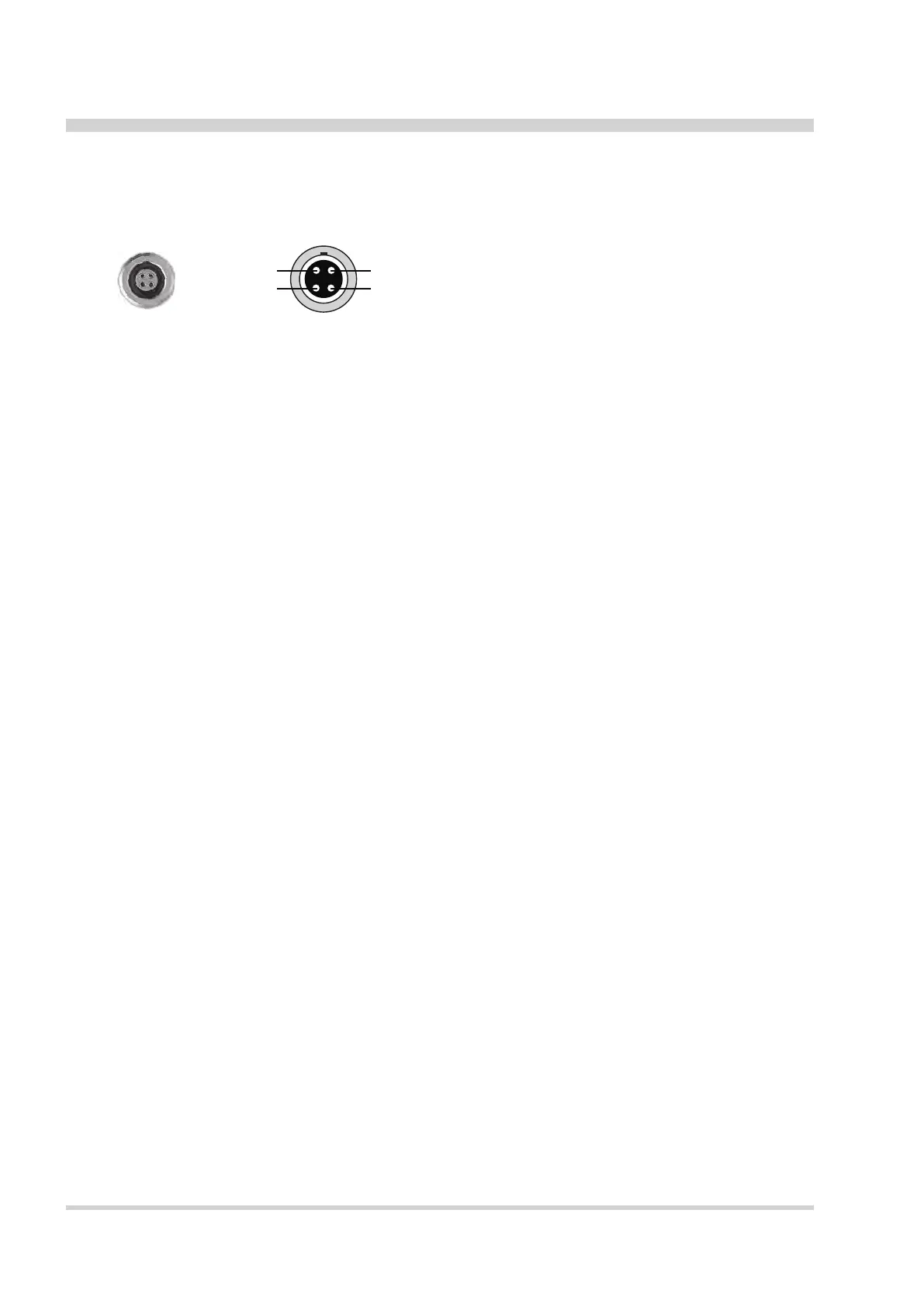

xPAD2 interface connector
This connector can be used to connect the module to the EPAD-BASE2 module or other xPAD2 series
1
2
4
3
Pin assignment EPAD2:
1 RS-485 (A)
2 RS-485 (B)
3 Power supply (+)
4 GND
Pin assignment CPAD2:
1 CAN high
2 CAN low
3 Power supply (+)
4 GND
Schematic
4 pin LEMO series
connector
Programming information
The xPAD2-TH8-P-x programming information is available in the DEWE-MODULES Programmers Reference
Manual.
EPAD2/CPAD2-TH8-P Module
