Conguration examples

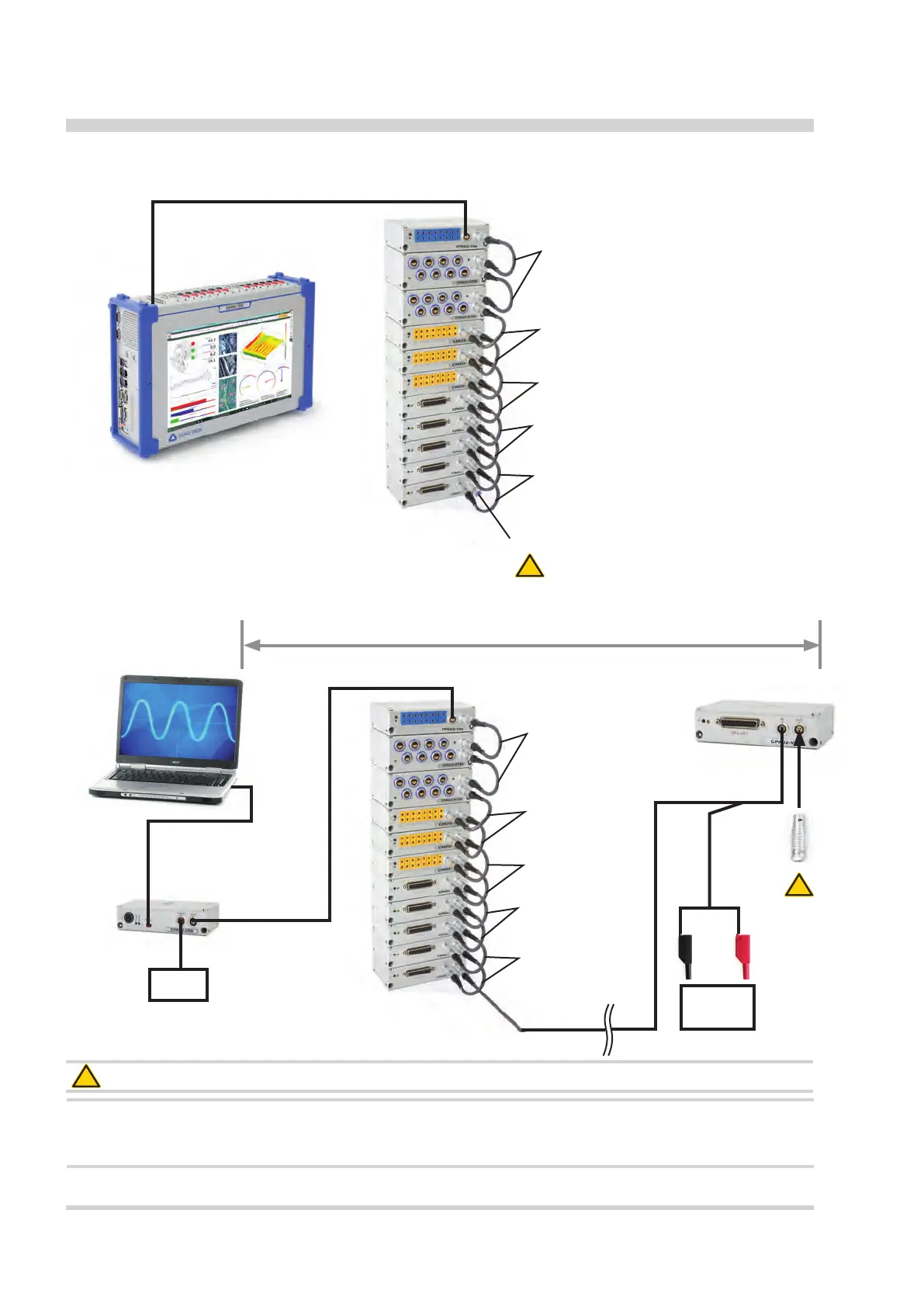

Conguration example with EPAD2 modules
EPAD-CBL-LL-x
to EPAD interface
EPAD-CBL-LL-x
EPAD-CBL-LL-x
EPAD-CBL-LL-x
EPAD-CBL-LL-x
EPAD-CBL-LL-x
XPAD-TERM-L
!
DC
7 to 40 V
DC
EPAD-CBL-LL-x
EPAD-CBL-LL-x
EPAD-CBL-LL-x
EPAD-CBL-LL-x
EPAD-CBL-LL-x
EPAD-CBL-LL-x
XPAD-TERM-L
CPAD-CBL-LD9-x-POW
!
Note: In each case the last DEWE-xPAD2 module has to be terminated!
!
USB
DC
up to 300 m
EPAD-CBL-LL-x
Note: Due to output resistance with longer cables an external DC power supply might be necessary. In
this case, DEWETRON offers the CPAD-CBL-LD9-X-POW cable with two additional banana plugs
for 7..40 V
DC
power supply. Further information see chapter: Accessories & Options.
