EPAD2/CPAD2/CPAD3 series modules • Technical Reference Manual • Printing version 1.0.2 • October 04, 2016

Conguration examples

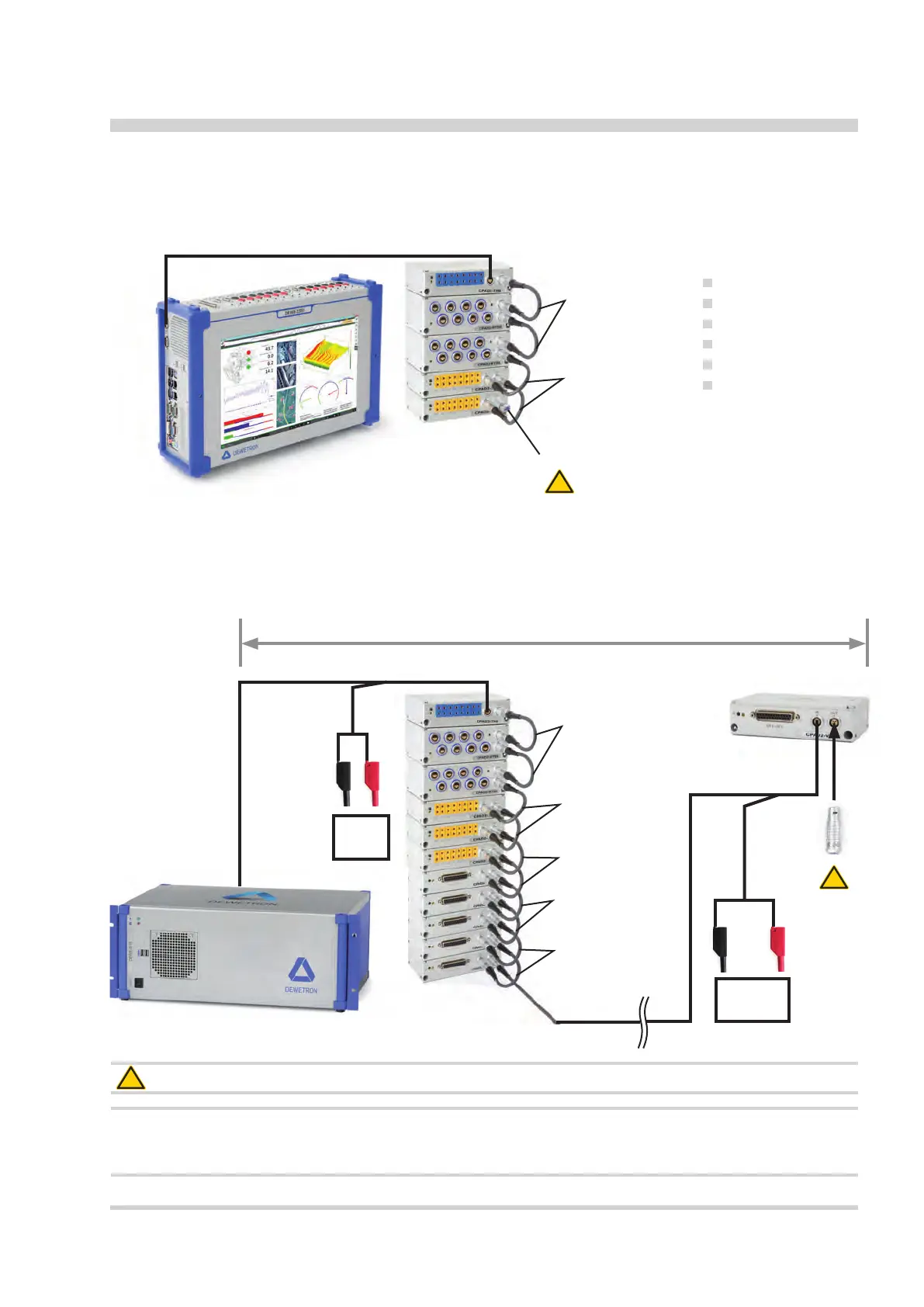

Conguration example with CPAD2/CPAD3 modules

EPAD-CBL-LL-x

CPAD-CBL-LD9-x

XPAD-TERM-L

CAN bus length*:

1 Mbit/s: 30 m

800 kbit/s: 35 m

500 kbit/s: 70 m

250 kbit/s: 150 m

125 kbit/s: 400 m

50 kbit/s: 800 m

*) Each additionally connected CPAD2/CPAD3 module reduces the maximum cable length by 2m.

Note: In each case the last xPAD2/CPAD3 module has to be terminated!

Note: Due to output resistance with longer cables an external DC power supply might be necessary. In

this case, DEWETRON offers the CPAD-CBL-LD9-X-POW cable with two additional banana plugs

for 7..40 V

power supply. Further information see chapter: Accessories & Options.

7 to 40 V

up to 1000 m

EPAD-CBL-LL-x

CPAD-CBL-LD9-x-POW

to CAN interface

EPAD-CBL-LL-x

XPAD-TERM-L

CPAD-CBL-LD9-x-POW
