EPAD2/CPAD2/CPAD3 series modules • Technical Reference Manual • Printing version 1.0.2 • October 04, 2016

Push button

The ID button is used to RESET the module. To reset the module just unplug all cables from the module.

Press and hold the ID button. Plug-in the RS-485 to power up the module. Now the module is set to standard

settings.

NOTE: To run the EPAD2-AO4 module in DEWESoft™ the plugin "PAD out (AO1, AO4, DO7)

plugin" must be installed. Further information regarding plugin installation and setup of the

EPAD-AO4 module please refer to the "PAD out (AO1, AO4, DO7) plugin" technical

reference manual.

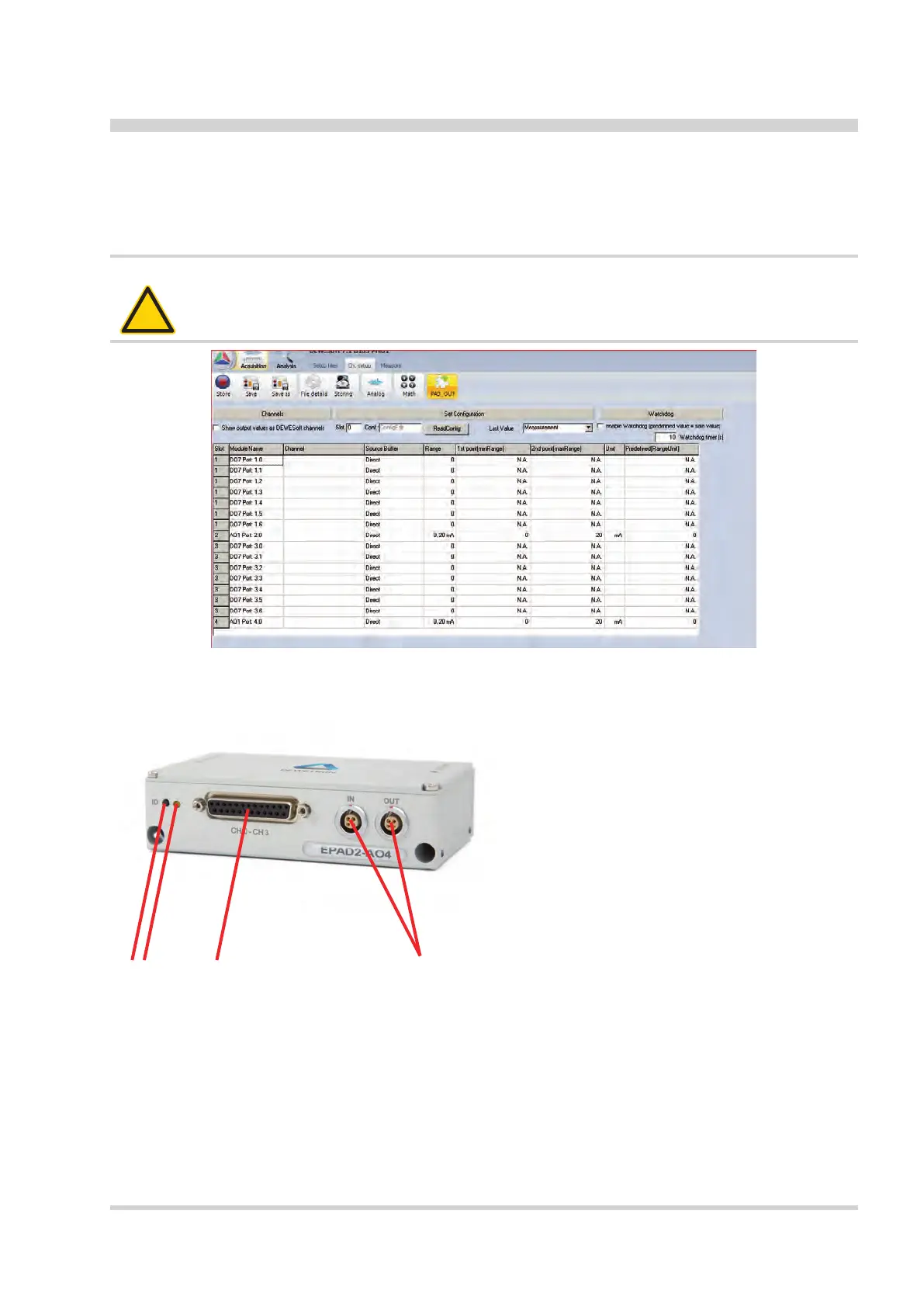

PAD OUT plugin setup screen

Connection

1 Analog output connector

2 State LED

3 ID button

4 2x EPAD2 interface connector

12 3 4

EPAD2-AO4 Module
