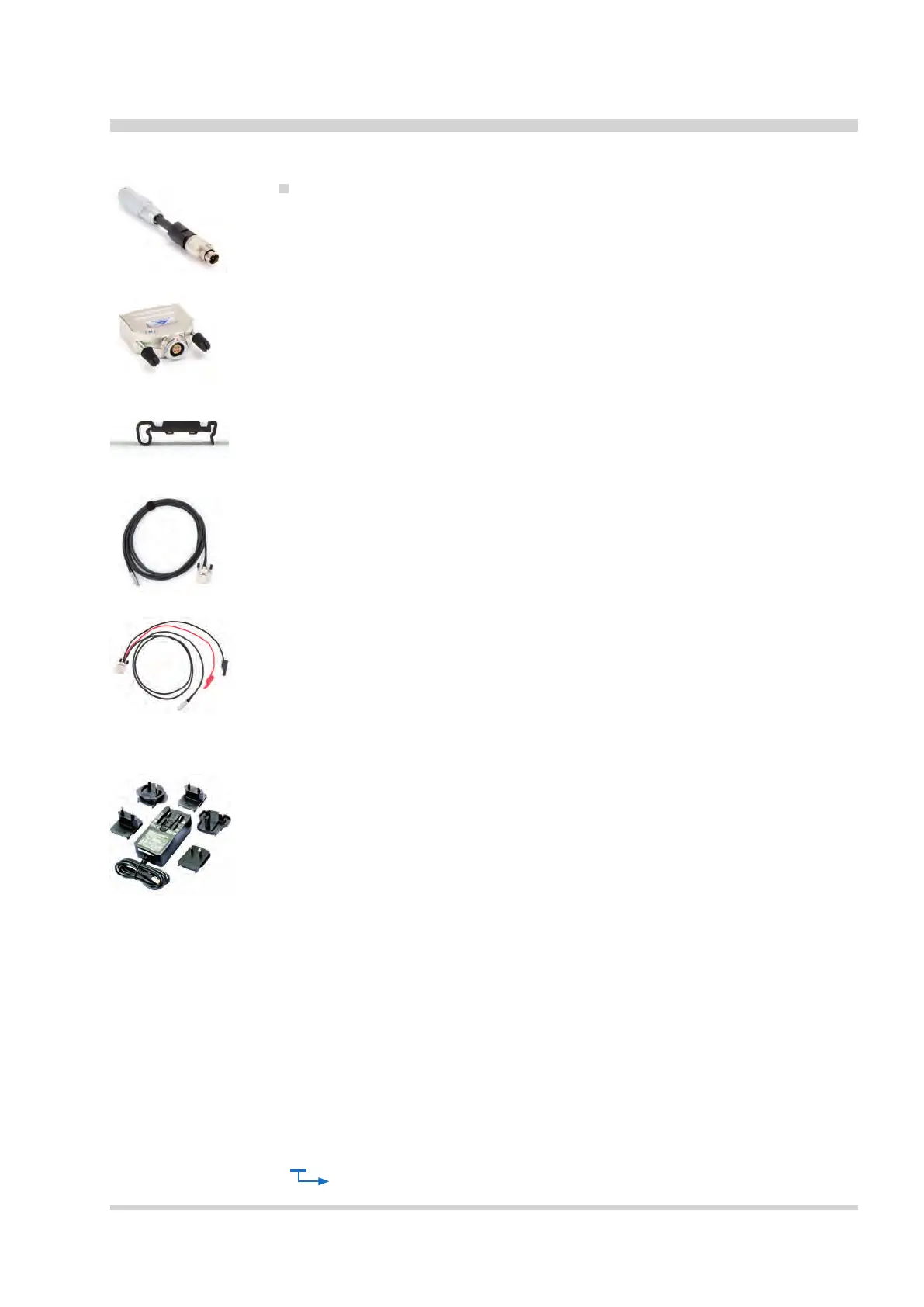

EPAD-ADAP-LB Adapter cable 0.1 m, converts from Lemo 1B.304 plug to Binder 712-series socket
required to connect existing EPAD modules with Binder 712-series connector to
new instruments with Lemo EGG.1B.304 EPAD interface using existing EPAD-
CBL-BB-x cables.
EPAD-ADAP-D15L Adapter to convert EPAD interface from SUB-D-15 connector
to Lemo 1B.304.
XPAD-DIN-RAIL Adapter to snap EPAD2 and CPAD2/CPAD3 modules onto a DIN rail.
CPAD-CBL-LD9-2 Adapter cable 2 m to connect CPAD series modules to CAN interface,
LEMO FGG.1B.304 plug to a SUB-D-9 socket,
use only for DEWETRON systems with power supply on CAN connector.
CPAD-CBL-LD9-2-POW Adapter cable 2 m to connect CPAD series modules to CAN interface,
LEMO FGG.1B.304 plug to a SUB-D-9 socket,
additional 2 banana plugs for module power supply.
DEWE-POW-XPAD-24W 24 W external power supply for EPAD-BASE2 & EPAD2-USB module.
Rated input voltage: 100 to 240 V
AC
(max. 90 to 264 V
AC
)
Output: 15 V
DC
(1.6 A)
PAD-OPT2 25-pin DSUB connector with screw terminal,
for all PAD modules with 25-pin SUB-D socket, except PAD-TH8-P and
xPAD2/CPAD3-TH8.
XPAD-OPT-EXT-TEMP Extended operating temperature range from -40°C to +85°C for EPAD
modules
Mating connectors for xPAD2-RTD8 and xPAD2-LA8 modules
LEMO-FFA.1S.304.CLAD42Z LEMO FFA.1S.304 mating connector, cable diameter 3.1 to 4.0 mm
LEMO-FFA.1S.304.CLAD52Z LEMO FFA.1S.304 mating connector, cable diameter 4.1 to 5.0 mm
LEMO-FFA.1S.304.CLAD62Z LEMO FFA.1S.304 mating connector, cable diameter 5.1 to 6.0 mm
Mating connector for xPAD2-V8-L1B module
LEMO-FGA.1B.304.CLADxxZ LEMO FGA.1B.304 mating connector.
Cable diameter 3.1 to 6.0 mm.
