Dexter Laundry V-Series Service Procedures And Parts Data

16
ANCHORS: 1/2" X 8" GRADE 5 BOLTS
HEADED BY 4" SQ. FISH PLATE OR EQUIV.
38 7/8"
33 7/8"
26 3/4"
31 3/4"
6 1/8"
17 1/8"
6"
4"
26 7/8"
3 1/2"
PEDESTAL SHOULD BE
REINFORCED WITH
MESH OR RODS.

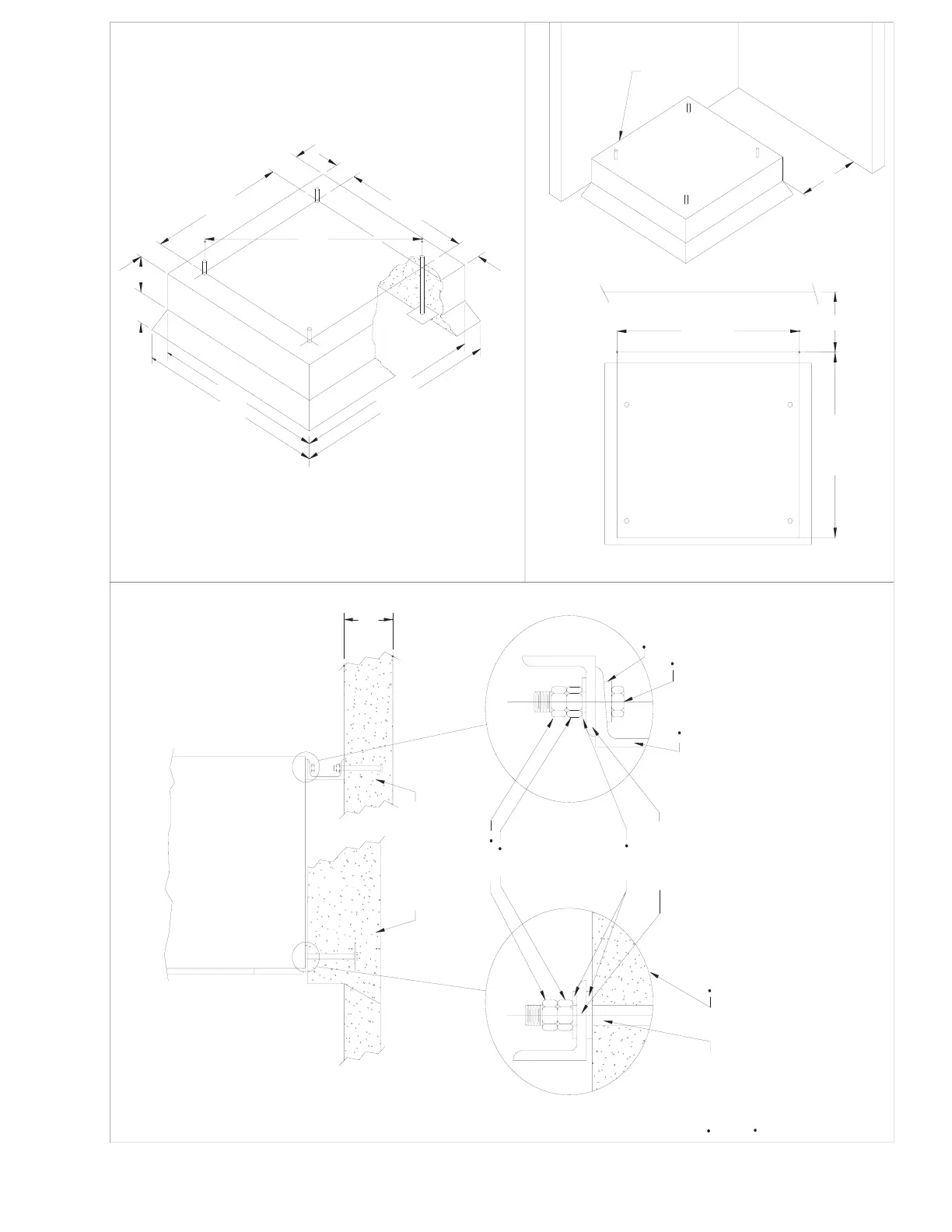

CONCRETE PEDESTAL MOUNTING
Figure 1-1
FLOOR OUTLINE
Figure 1-2
REAR WALL
24" MIN.
MACH. CLEAR
FLUSH WITH WALL
RESULTS IN 2"
MACHINE CLEARANCE
24"
MIN
(1 7/8" BOLT PROTRUSION)
3 1/2"
3 1/2"
31 7/8"
SIDE
FRONT
29 7/8"
MACHINE WIDTH
24 1/4"
MACHINE DEPTH
SIDE VIEW
NUT LOCKNUT
FLOOR
PEDESTAL
EXISTING
FLOOR
6"
MIN
Figure 1-3
MACHINE BASE
MACHINE MOUNTING DETAIL
WASHER
HEAVY
NOT FURNISHED WITH MACHINE
4" SQUARE FISH PLATE ANCHOR BOLT W/ 1/2" X 8" GD. 5
(REINFORCED) PEDESTAL MOUNTING
BASE
MOUNTING
STEEL
(GRADE 5) 1/2" X 2" BOLT
WASHER BEVEL
25 lb
