Before performing any service work, remove electrical power from the machine.
Always replace panels before putting machine into service.
Top Panel Removal
A. Remove 4 screws that hold detergent dispenser to top panel.
B. Unlock top panel lock.
C. Raise top panel, slide to the rear to release from back clips and lift off.

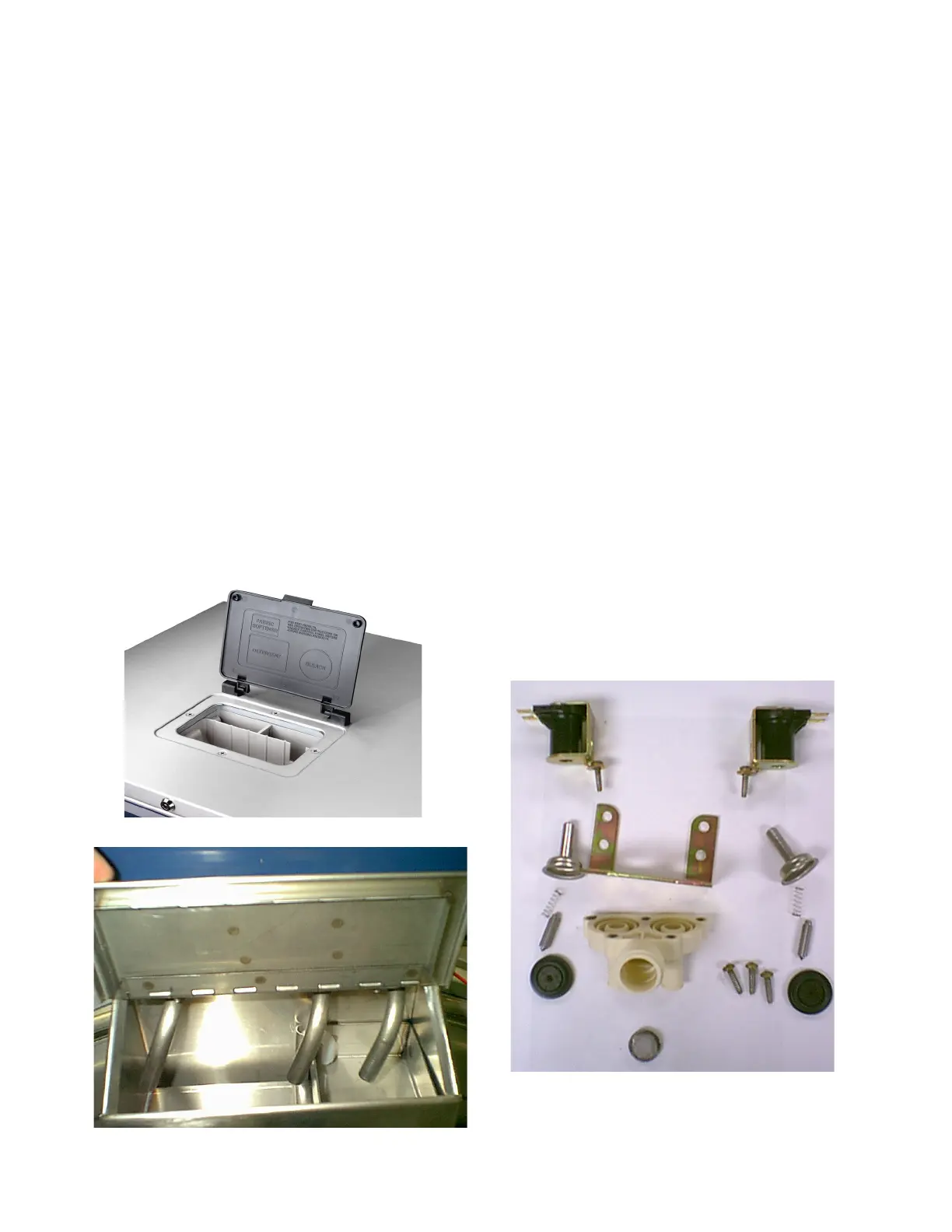

Detergent Dispenser
Remove top panel to access dispenser. (see Removing Top Panel) on 18lb; 25lb;40lb;55lb.
Detergent is flushed from the front of the compartment and fabric softener is flushed from the back. There
will be a small amount of water left in the fabric softener compartment after each use. This is normal.
Note on front mounted dispensers hot water fills thru compartment.
Vacuum Breaker
In the left rear of the cabinet is the vacuum breaker. It guides the water to the tub and dispenser and prevents
a back flow of water.
Water Valves
Remove top panel to access water valves. (see Removing Top Panel) The two dual outlet water valves are
mounted to the rear channel with two screws each. Always check inlet screens to be sure that they are clean.
Disassembly requires the removal of two solenoid screws and three valve body screws. Below the solenoid
coil is a solenoid guide, armature, armature spring and diaphragm. All valve parts are available individually
