Dexter Laundry V-Series Service Procedures And Parts Data

63
55 & 75 LB. Water Seals
Replacement
A. Remove cylinder from washer (see Cylinder (basket)
removal).
B. Remove water seals from the seal mounting plate on the
cylinder shaft. These are removed with your fingers.
C. The primary and secondary seals that mount on the
sealing ring may be slid over the shaft and seated on the
metal sealing ring with your fingers. In the unlikely
event that the metal ring that mounts these sealing rings
were to be damaged or moved, a new one would need to
be pressed on. The T-900 ring must be pushed against
the stop on the shaft.
After installing the seals, lubricate the faces of the
seals with silicone grease.
D. Install cylinder (see Cylinder (basket) reassembly).
Bearing Housing Assembly 55 & 75 LB.
Removal
A. Remove cylinder from washer (see Cylinder (basket) removal).
B. Remove 6 7/16" tub back to bearing housing cap screws.
C. Remove 6 3/4" bearing housing to frame bolts.
D. Remove bearing housing from frame.
E. Remove the retaining ring next to the front bearing.
F. The bearings are pressed into the housing and must be pressed back out.
Reassembly
A. When installing new bearings into a bearing housing, first press the front (large) bearing into the
housing until it bottoms and install the snap ring. With the bearing spacer in place, press the
rear bearing in until the spacer is snug between the two bearings.
Note: If the tub-back water-seal mating ring has been moved it must be cleaned and resealed
with silicone rubber around all 6 bolt holes and around the outer edge.
B. Set bearing housing on frame.
C. Install and torque 6 tub back to bearing housing cap screws according to the previous chart.
D. Install and torque 6 bearing housing to frame bolts according to the previous chart.
E. Install cylinder (see Cylinder (basket) reassembly).

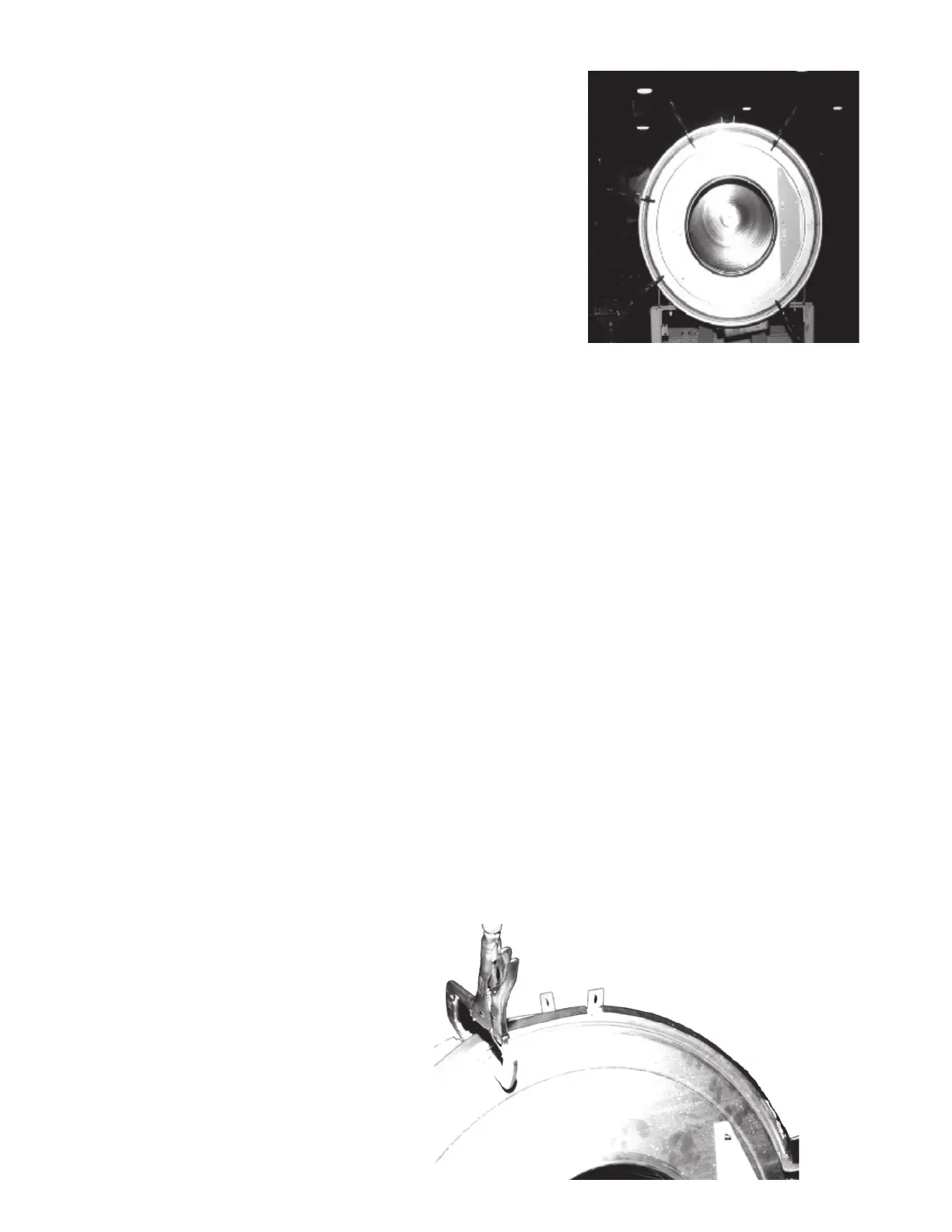

Outer Tub 55 & 75 LB.
Removal
A. The outer tub can easily be removed when the tub front, cylinder and bearing housing has been
removed as outlined previously.
B. At that point the only attachments to the chassis are the two front strap mounting bolts.
Reassembly
A. See Cylinder (basket) reassembly.
