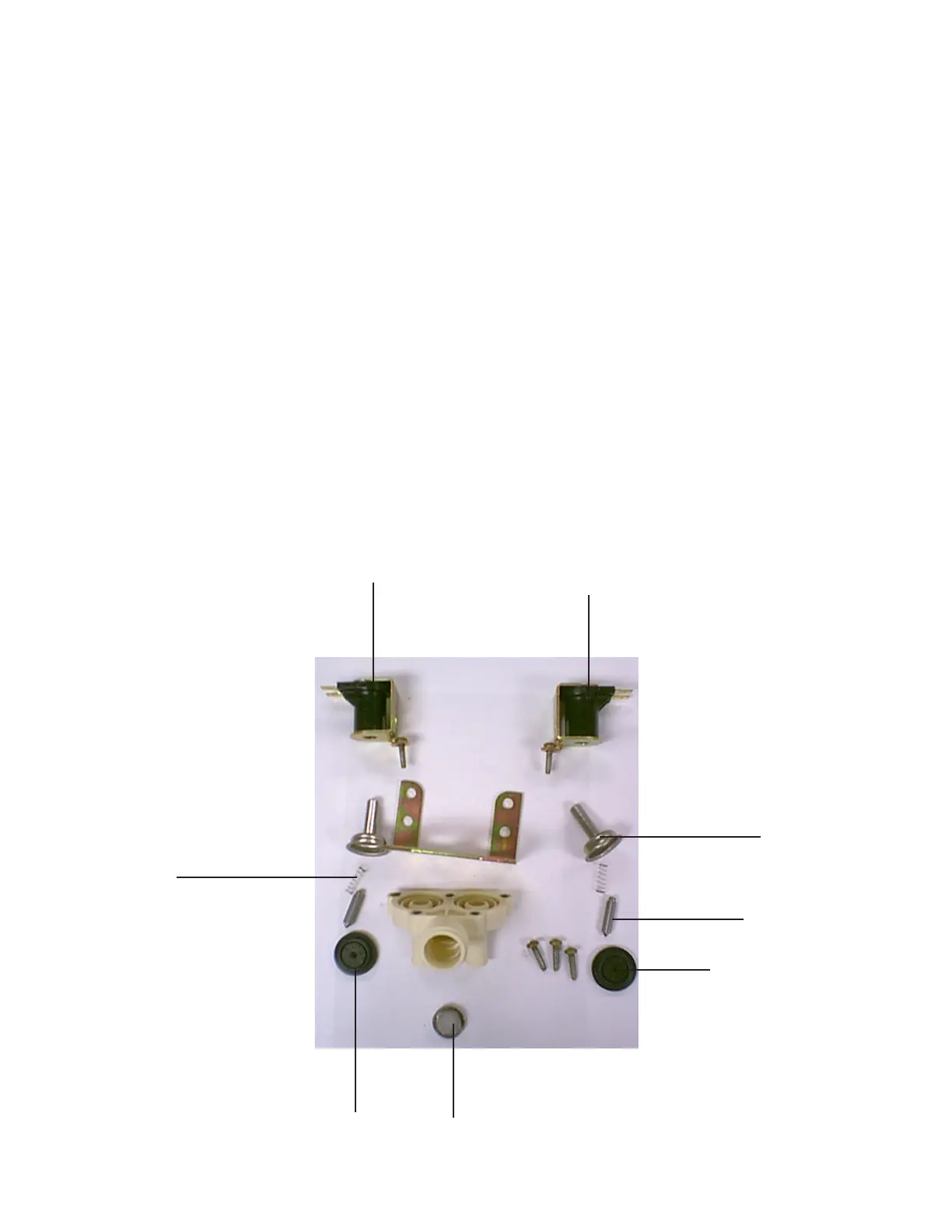

WATER INLET VALVE BREAKDOWN
WCVD-18, WCVD-25, WCVD-40, WCVD-55
Key Part Number Description
* 9379-183-003 Valve, Water Inlet (includes 1 thru 6) .......................................... 2
1 9555-056-001 Screen, Inlet end of valve .......................................................... 2
2 9089-017-001 Coil Assy., 120 V ........................................................................ 2
3 9118-049-001 Diaphragm .................................................................................. 2
4 9211-021-002 Guide, Solenoid .......................................................................... 2
5 9015-008-001 Armature .................................................................................... 2
6 9534-298-001 Spring, Armature ........................................................................ 2
* 9545-008-026 Screw, Valve Mtg .......................................................................... 2
WCVD-75
* 9379-192-001 Valve, Water Inlet double outlet ................................................... 2
* 9379-194-001 Valve, Water Inlet single outlet ..................................................... 2
6
2
2
4
5
3
3
1
