LOADING DOOR GROUP 75LB.

180` DOOR

KEY PART NUMBER DESCRIPTION

* 9960-274-004 Loading Door, Complete ( includes #1thru #10) .................. .1

1 9487-265-002 Loading Door Ring 180 degree.............................................. .1

2 9206-419-001 Gasket, Loading Door.............................................................. 1

3 9635-016-001 Window, Loading Door.......................................................... .1

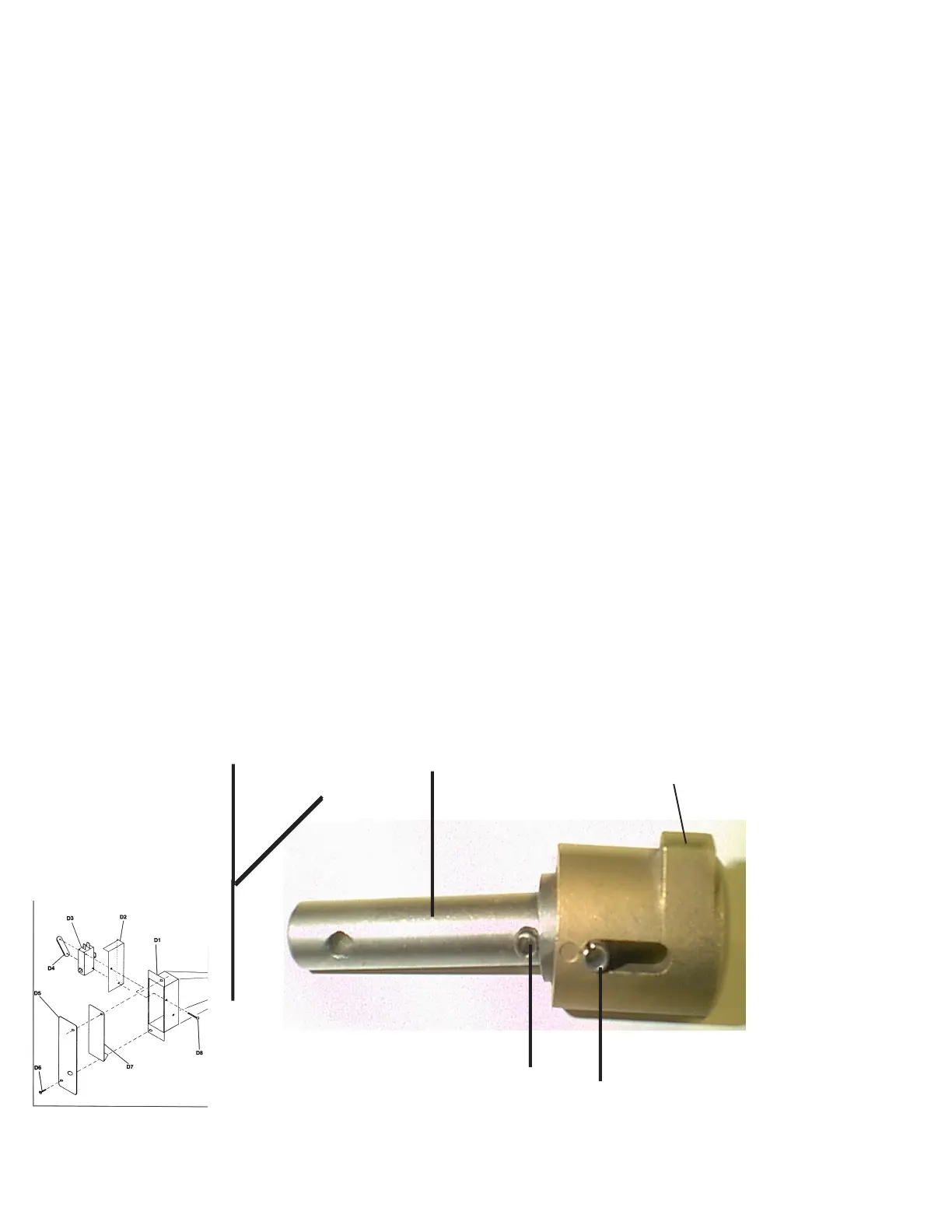

4 9913-134-003 Shaft Assy. Locking (includes #5 thru #8).see below.................... .1

5 9537-195-002 Shaft, Door Locking.............................................................. .1

6 9095-040-001 Cam, Locking........................................................................ 1

7 9451-181-005 Pin, Groove (1 1/4 )................................................................ .1

8 9451-181-005 Pin, Groove (3/4)..................................................................... 1

9 9534-360-002 Spring, Lock Cam .................................................................. 1

10 9244-080-003 Handle, Door ........................................................................... .1

17 9451-181-006 Roll Pin, Door Handle (groove) .................................................. 1

11 9955-030-001 Hinge Assy, Loading Door ( mounts to tub front ).... ................... .1

* 9545-014-009 Screw, Hinge Mtg...................................................................... 3

* 8641-582-009 Lockwasher............................................................................. 3

* 9552-036-001 Shim, Loading Door Hinge, Thin............................................ .AR

* 9552-036-002 Shim, Loading Door Hinge, Thick............................................... .AR

12 9845-005-003 Top, Loading Door Leaf Hinge.with pin.......................................... 1

13 9845-005-002 Bottom, Loading Door Leaf Hinge ........................................... 1

16 9545-056-002 Screw, Loading Door Hinge Mtg. ..................................................3

15 9950-060-002 Ring, Masking w door switch hole ............................................... 1

* 8640-413-002 Nut.................................................................................... .4

* 9059-063-002 Band Edge Protector ............................................................... .1

* 9801-089-001 Switch assembly Door Closure 1

D1 9041-087-001 Switch Box 1

* 9053-067-003 Bushing Insulating 1

D3 9539-461-007 Switch Micro 1

D2 9550-159-001 Switch Shield 1

D4 8640-401-001 Nut Special Twin #4-40 1

D8 9545-020-001 Screw 4-40x5/8 2

D7 9008-004-001 Door Switch Actuator 1

# 4 # 5 # 6

* Not Illustrated

Dexter Laundry V-Series Service Procedures And Parts Data
