Dexter Laundry V-Series Service Procedures And Parts Data

66
Reassembly
A. Make sure that the tolerance ring is in place inside the pulley.
B. The shoulder inside the pulley that holds the tolerance ring should face the back of the washer
when installed correctly.
C. Use a stack of flat washers and a longer bolt to press the pulley onto the basket shaft.
D. Reinstall the retaining bolt, lock washer and flat washer. The shaft end bolt with washer should
be installed with a torque of 45 ft/lbs.

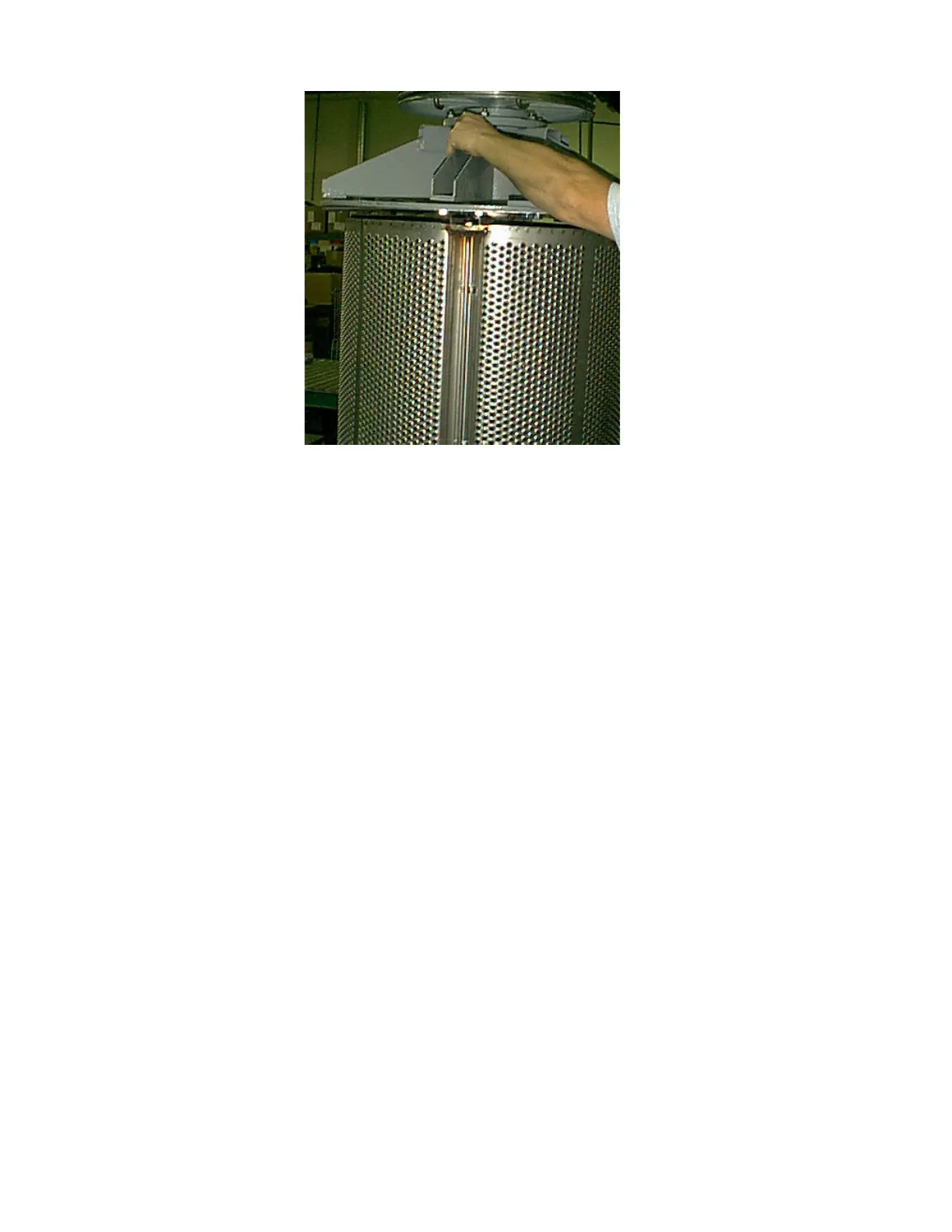

Bearing Housing, Water Seals and Tub Back 18lb., 25lb.,40lb.
Removal From Basket Shaft
A. Remove assembly from washer (see Tub Back, Bearing and Cylinder (basket) Assembly
removal).
B. Remove basket pulley (see Basket Pulley removal above).
C. It is necessary to use a puller (Grip-O-Matic #1038 for 25lb., #1045 for 40lb. to remove the
bearing housing assembly from the cylinder shaft. There is a flange on the bearing housing that
should be used with this three armed puller.
