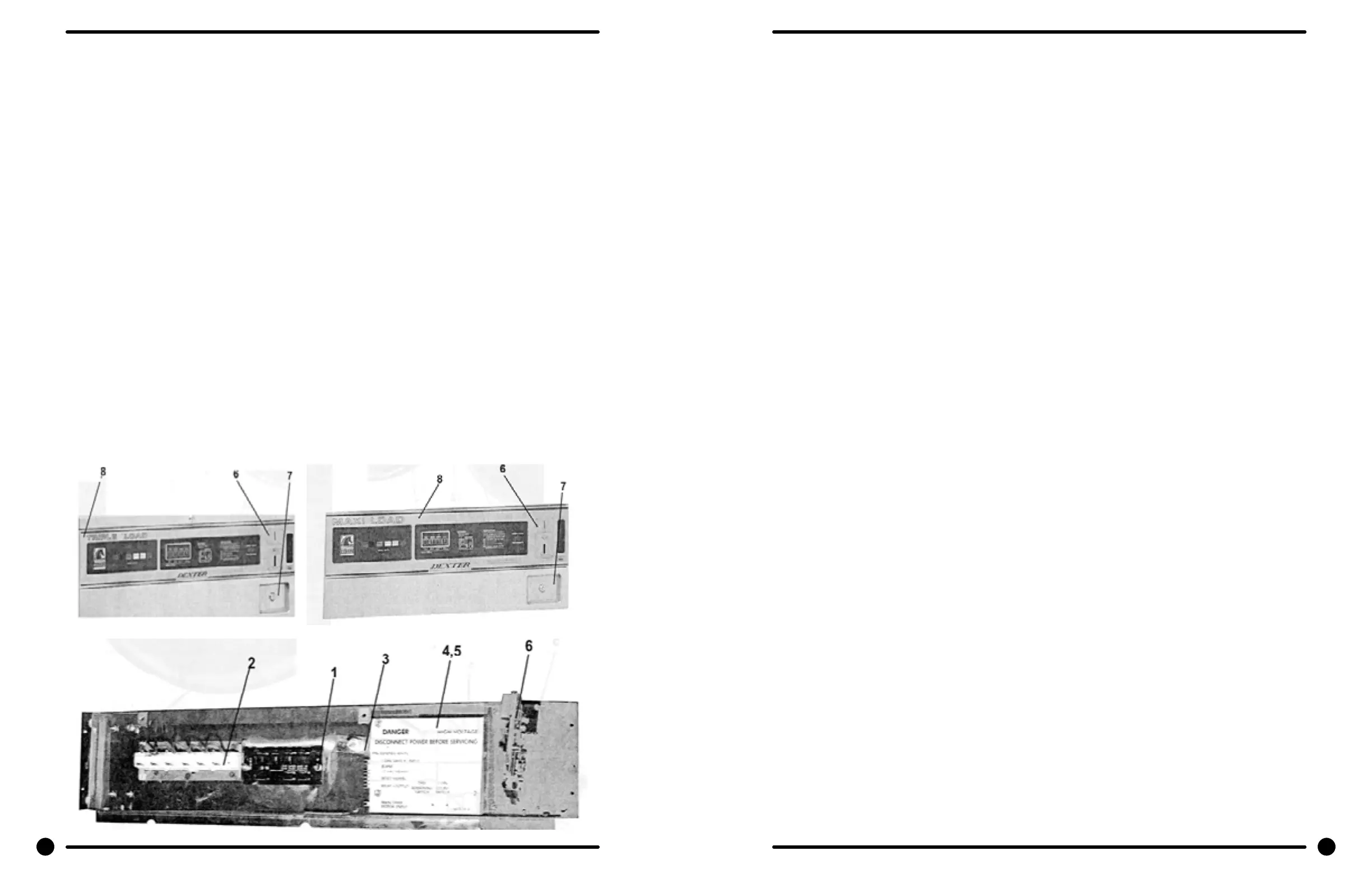

Control Panel Part # by Model
Key Part Number Description Qty
1 9539-479-009 Switch, Push-button (cycle selector) 1
* 8640-412-005 Nut, Switch Mtg 2
2 3310-041-001 Light, Cycle Control 1
* 9206-100-001 Gasket, Light 2
3 3310-042-001 Light, Bleach 1
4 9020-005-001 Accumulator, Coin with Time Remaining 1
* 9627-682 001 Wiring Harness, Accumulator 1
* 9538-157-005 Short Spacer #8x 1/8 (between board and shield) 3
5 9550-174-001 Shield, Circuit Board with Timer Remaining 1
* 8640-412-005 Nut, Hx 3
* 9538-157-003 Long Spacer (between panel and board) 3
6 9021-001-010 Acceptor, Coin (See Coin Handling Group) 1
7 9732-122-001 Kit, Coin Box W/Hardware 1
8 9412-076-007 Nameplate, Control Panel (one piece) WCN25 1
8 9412-076-006 Nameplate, Control Panel (one piece) WCN40 1
* 8640-412-005 Hex Nuts (mounting solenoid assy. to control panel) 3
*Not illustrated
Labels and Diagrams WCN Models
9345-789-004 Wiring Diagram (WCN25AB, 3 phase)
9345-788-004 Wiring Diagram (WCN25AA, 1 phase)
934.5-787-002 Wiring Schematic ( WCN25 1 ph / 3 ph)
9345-787-002 Wiring Schematic (WCN40 1 ph / 3 ph)
9345-788-004 Wiring Diagram (WCN40AA, 1 phase)
9345-789-004 Wiring Diagram (WCN40AB, 3 phase)
8502-614-004 Label High Voltage Warning
8502-619-003 Label Fusing & Installation (1 phase)
8502-619-004 Label Fusing & Installation (3 phase)
8502-620-001 Label Motor Connections
8502-624-002 Label Door Opening Warning
8502-639-001 Label Warning
8511-001-002 Label Quality
8507-274-001 Spin Direction Label
8502-230-001 Label Transformer Connections (WCN25AB, 3 phase)
8514-019-002 Owners Booklet (WCN25)
8514-021-002 Owners Booklet (WCN40)
