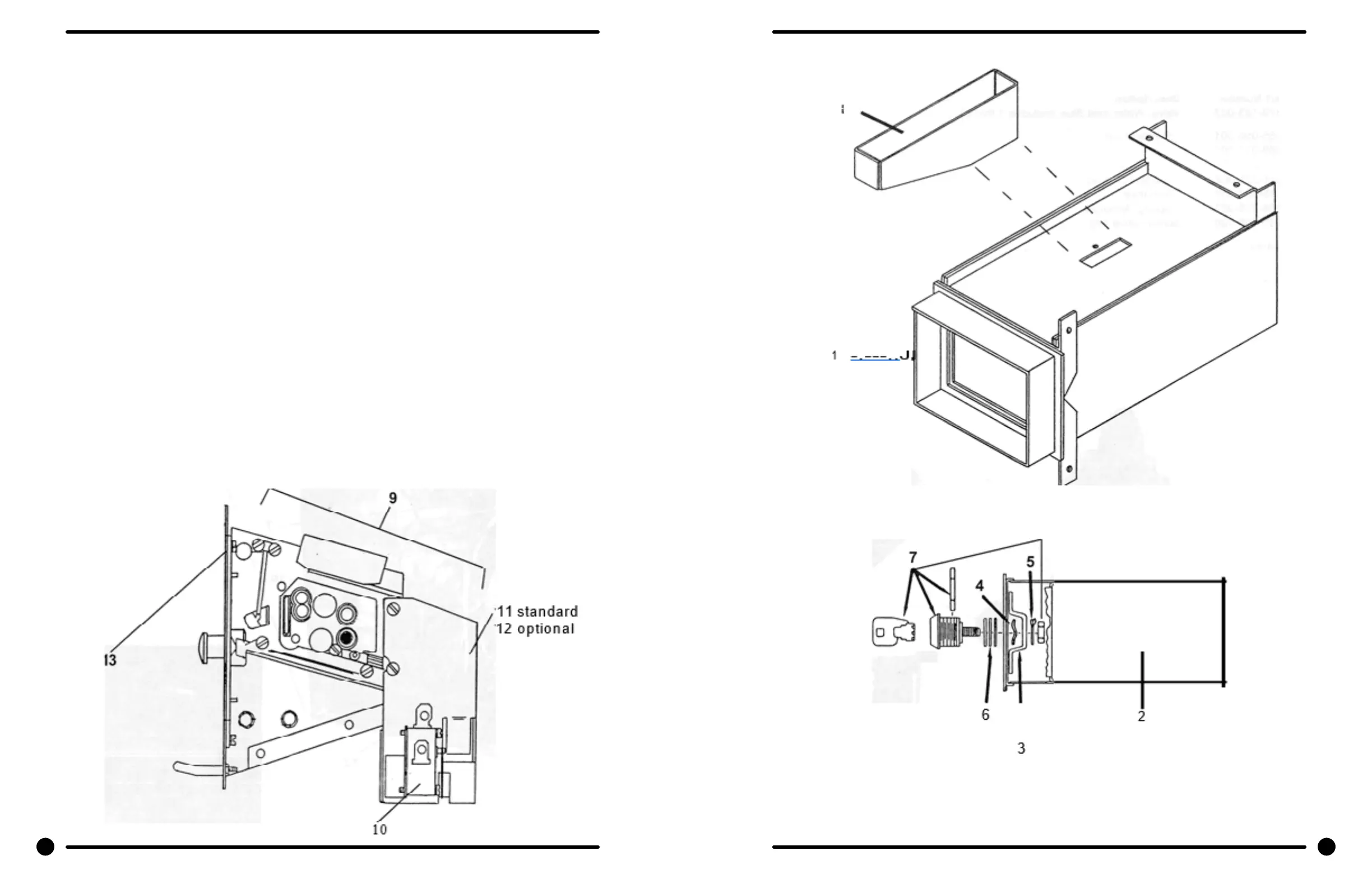

Coin Handling Group
Key Part Number Description Qty
1 9942-026-005 Vault Assy WCN25 1
1 9942-026-006 Vault Assy WCN40 1
* 9545-008-026 Screw, Vault Mtg 4
NOTE: COIN BOX AND HARDWARE KIT AND COIN BOX LOCK NOT INCLUDED WITH MACHINE.
2 9732-122-001 Kit, Coin Box W/Hardware (includes 3 thru 6) 1
3 9349-033-001 Latch, Coin Box 1
4 8641-569-002 Washer, Wave 1
5 8641-583-001 Washer, Keeper 1
6 8641-581-008 Washer, Spacer- Thick 2
6 8641-581-010 Washer, Spacer- Thin 4
7 8650-012-003 Lock, Coin Box (w/key) 1
8 9940-014-004 Chute Assy., Coin 1
* 9545-008-001 Screw, Chute Mtg 1
11 9119-025-002 Coin Acceptor chute without penny rejector (standard) 1
9 9021-001-010 Acceptor, Coin 1
* 9545-020-002 Screw, Acceptor Mtg 4
* 8640-424-002 Nut. 4
10 9732-126-001 Switch, Coin 1
12 9119-025-001 Coin Acceptor chute with penny rejector (optional) opt
13 9486-133-001 Button Coin Return retainer 1
*Not illustrated
104 105
Part # 8533-035-002 4/22 Part # 8533-035-002 4/22
