M I N I - C U B E – U S E R M A N U A L
Rev 1.3 06/2018 14/59
TECHNICAL DATA
Technical description

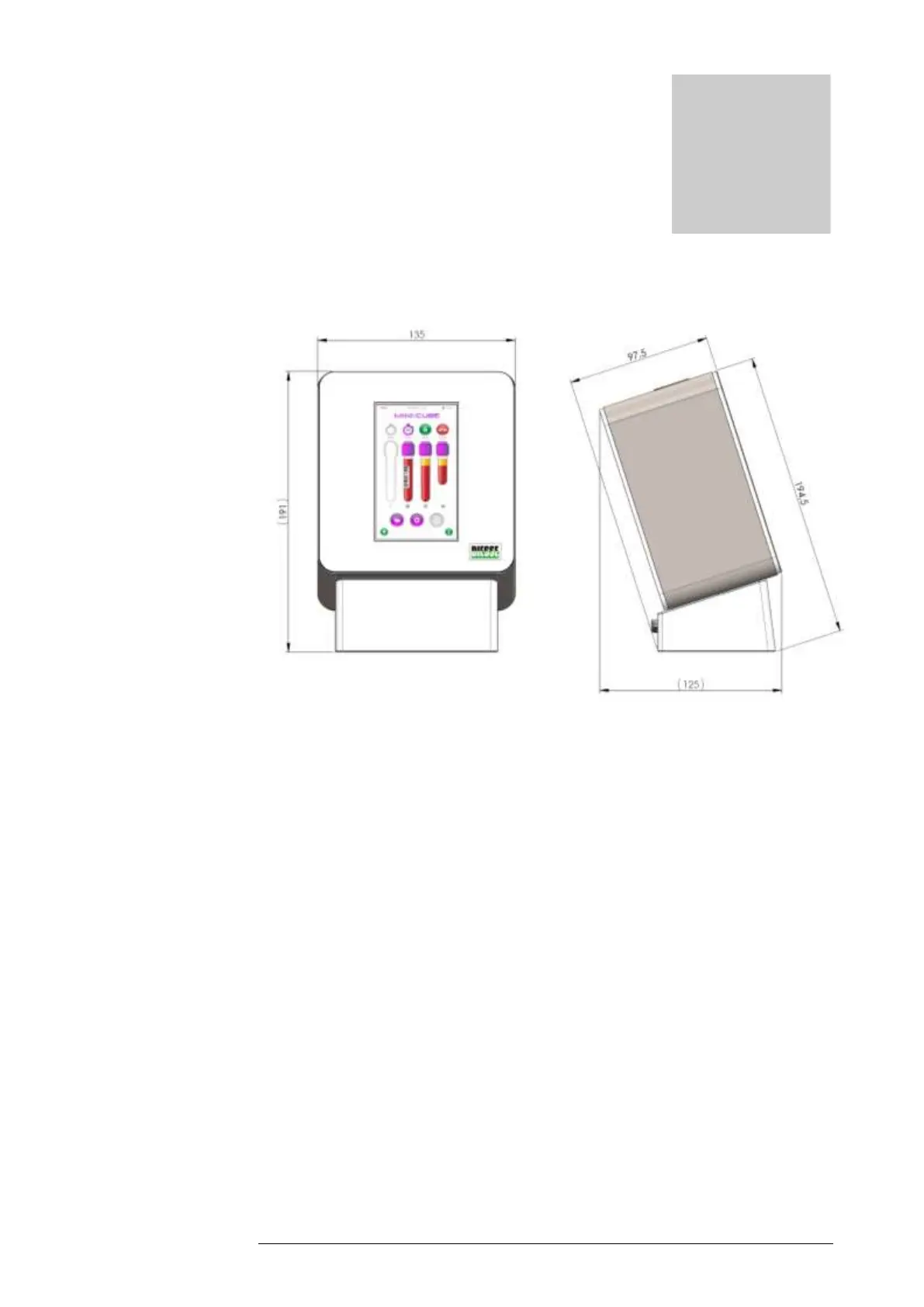

Fig. 2.0
The MINI-CUBE module consists of a single body containing all the operating
functions necessary for analyzing the sample.
The motor lifts the reading unit which utilizes four optical sensors (one per
position) to verify the suitability of the sample and detect the level at
baseline and level after 20 minutes of sedimentation.
The optical sensor of each position scans the inserted test tube, checking
that it contains an adequate volume of blood and identifying the type of
tube (4 ml EDTA or 500 µl microtainer EDTA).
The function of the alarm is to alert the operator during various stages of
the operating cycle or in the event of errors.
