M I N I - C U B E – U S E R M A N U A L
15/59 Rev 1.3 06/2018
The sample is identified by an external bar code reader (optional accessory).
The patient ID code can also be manually entered using a stylus on the keypad
display.
External connections of the instrument
The MINI-CUBE has a Bluetooth 4.0 connection for an external printer (optional
accessory) or for connection to a mobile device.

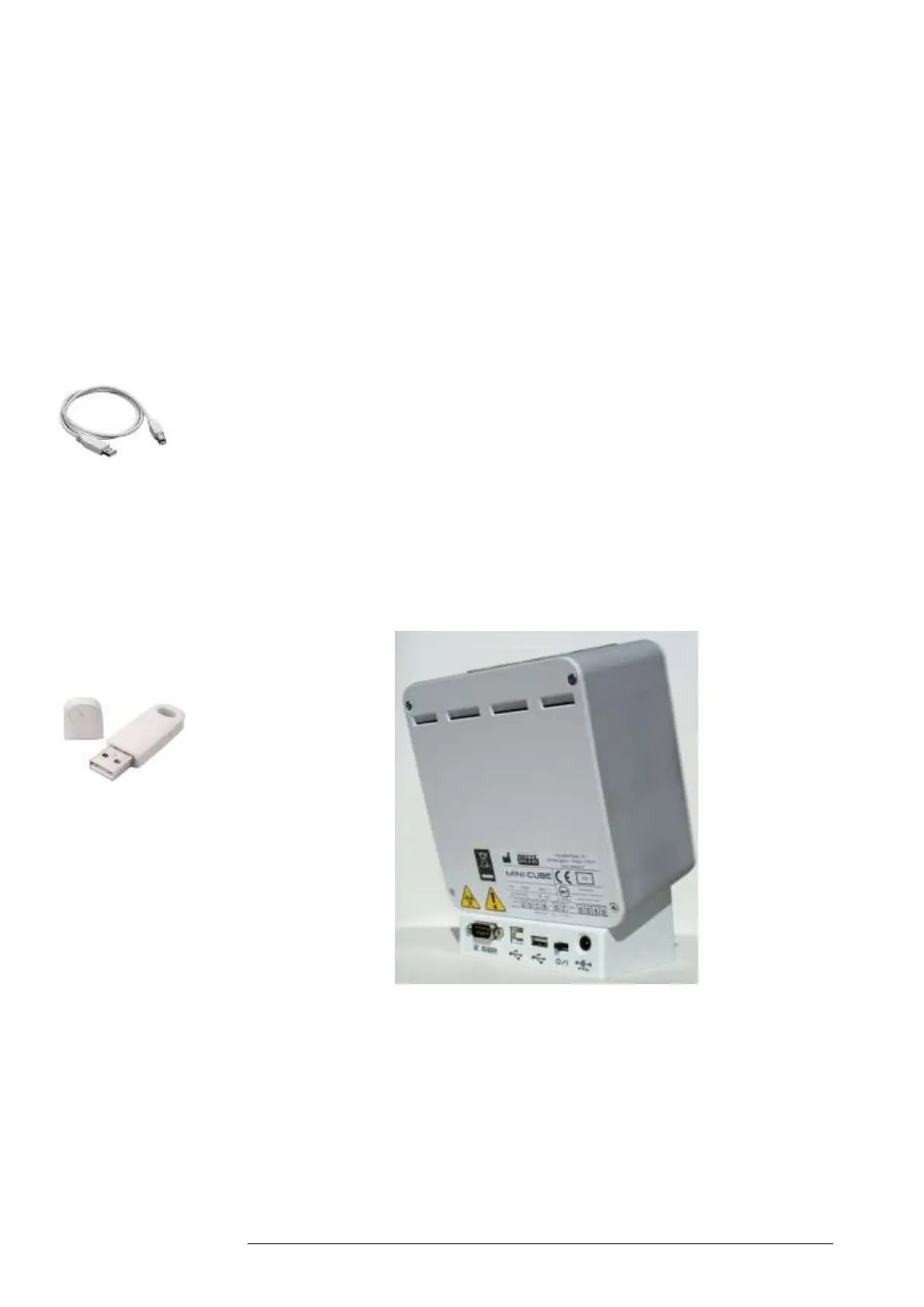

The power supply, serial/USB port for connection to the computer, a USB port
for connection to the USB mass storage device (B) that can be used to update
software or export files) and port for the external bar code reader are positioned
at the rear. The functional units of the module are described below.
Fig 2.1
