Control Buttons
Enter/Exit adjustment mode
Turn On/Off program*
Start/Stop a manual cycle
Scroll to select a program setting to adjust
Raise/Lower the selected value
*NOTE: Turning the controller OFF using the button will suspend all scheduled
programming and OFF will appear on the display. The Manual Run feature will still
function when the controller is OFF.

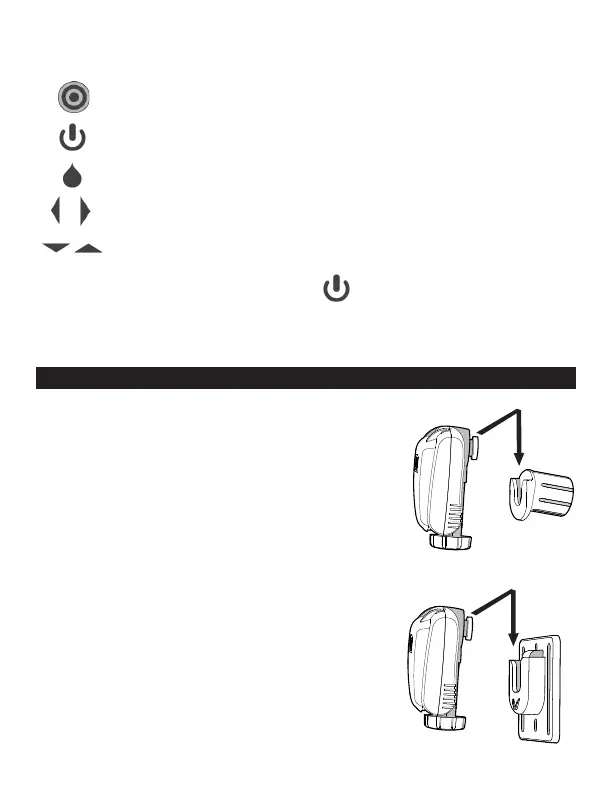

4. VALVE OR WALL MOUNTING
.
4.1 VALVE MOUNTING
1. Slide the controller q into the controller valve
mount w.
2. Press the controller with the valve onto the solenoid
in the desired position.
4.2 WALL MOUNTING
2. Place the mounting plate r on the wall and secure
using three screws (not included).
3. Slide the controller assembly eup and into the
mounting plate to secure. (Mounting solenoid sleeve
is not used).
NOTE: The length of the controller connecting
cable limits the distance between the controller and
the solenoid.
r
q
w
Figure A
Figure B
e
5
