10. MANUAL VALVE ACTUATOR INSTALLATION

Operating pressure: 20-125 PSI

Recommended operating pressure: 20-80 PSI

1. Shut off main water supply.

2. Remove the manual stem from the existing valve and temporarily remove the

anti-siphon cap (Figure P).

3. Replace any existing worn washers with the new ones provided (Figure Q).

4. Install the actuator into the manual anti-siphon valve body by turning actuator

clockwise. Tighten firmly, but do not over tighten (Figure R).

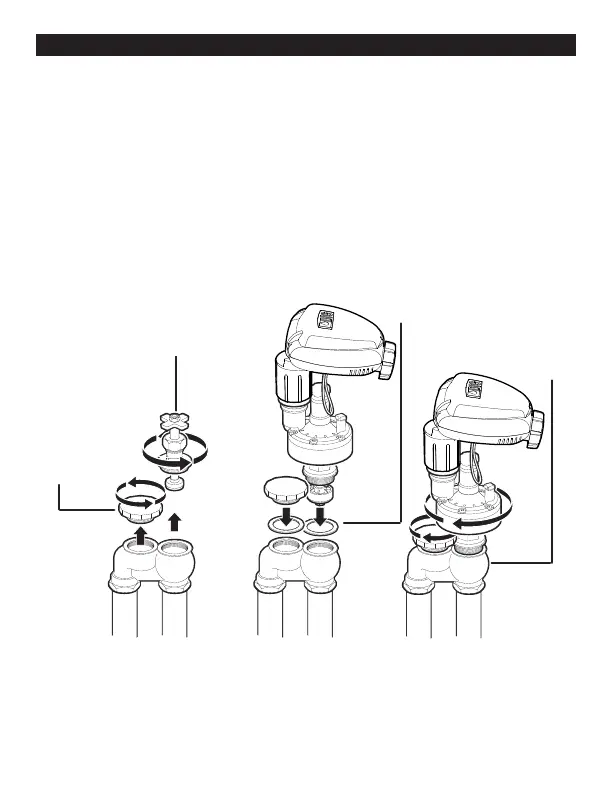

Figure P Figure Q Figure R

MANUAL STEM

ANTI-SIPHON

CAP

WASHERS

VALVE BODY
