Digi Connect ME Hardware Reference

Connectors: Ethernet Interface
16
Connectors: Ethernet Interface
The Ethernet connector is an 8-wire RJ-45 jack that meets the ISO 8877 requirements for 10/
100BASE-T. See the following figure and table for pin orientation and pin assignments.
Note: Pin orientation and assignments are the same for modules with or without a JTAG
connector.

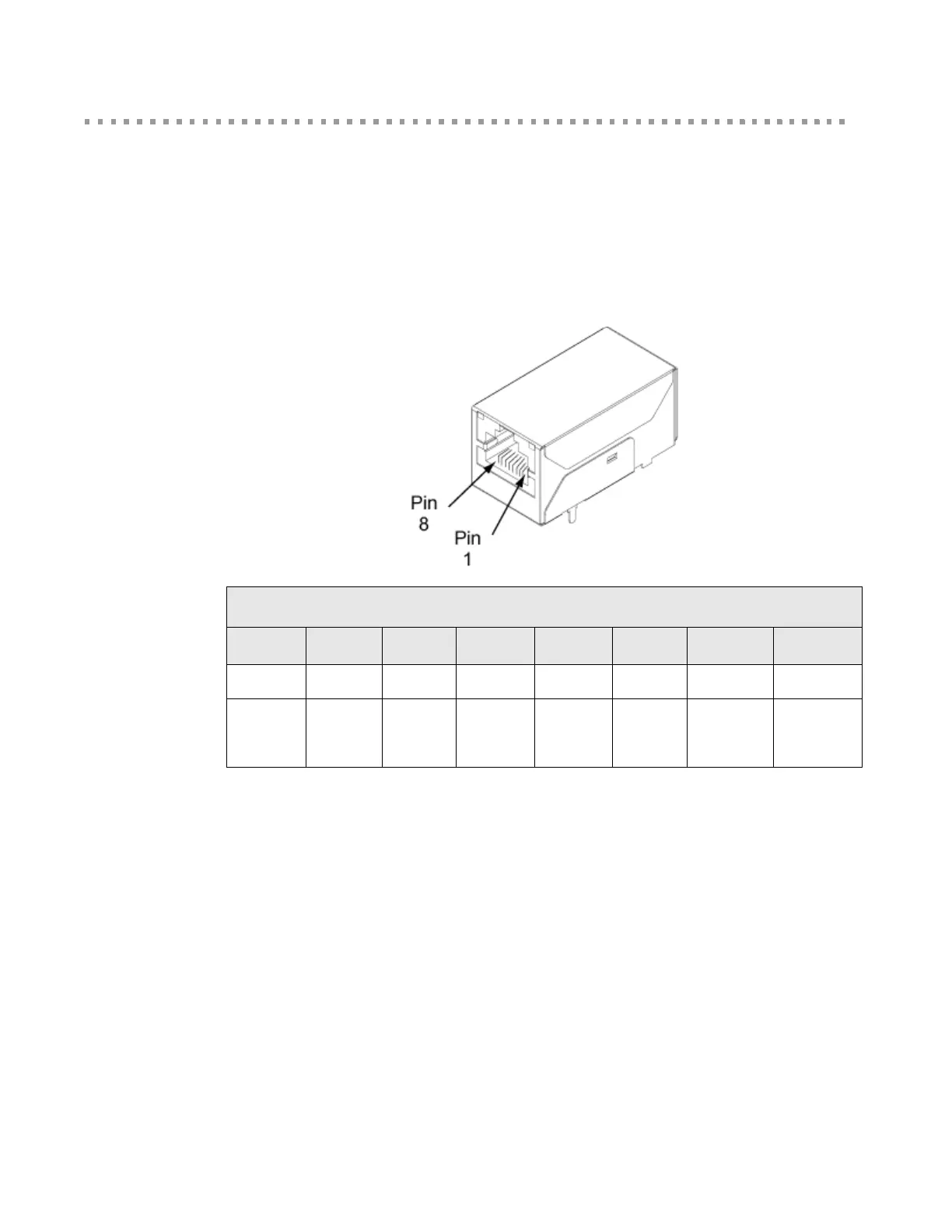

Ethernet Interface Pin Orientation
Ethernet Interface Pin Assignments
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8
TXD+ TXD- RXD+ EPWR+ EPWR+ RXD- EPWR- EPWR-
Transmit
Data +
Transmit
Data -
Receive
Data +
Power
from
Switch +
Power
from
Switch +
Receive
Data -
Power
from
Switch -
Power
from
Switch -
