Power Jack P15
The Power Jack P15 is a barrel connector that accepts 9 to 30 VDC +/- 5%. The following table
shows the polarity of the power jack.

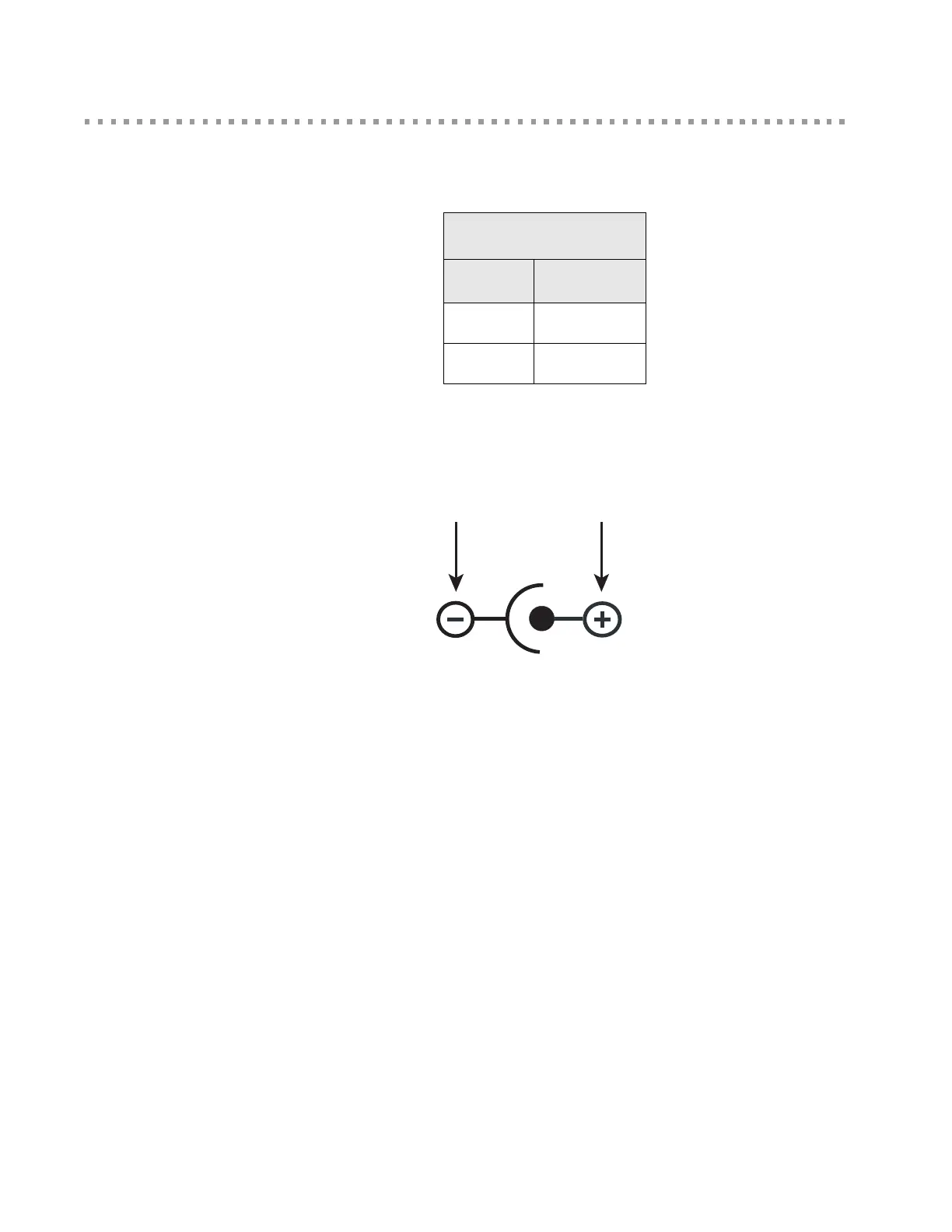

The following figure schematically represents the polarity of the power jack.
Power Jack Polarity, Schematic
Power Jack Polarity
Contact Polarity
Center +9 to +30 VDC
Outer Ground
Ground
+9 to +30 VDC

Digi Connect ME Specifications

General

Power Supply	3.3 VDC
Ethernet Ports	1
Serial Ports	1
Network Interface	10/100Base-T Ethernet
Serial Interface	RS-232/485
Operating Temperature	-40°C to 85°C
Product Type	Embedded Device Server
Protocols	TCP/IP, UDP, HTTP, FTP, SMTP, DHCP, DNS, SNMP, Telnet
