Digi Connect ME Hardware Reference

Module LEDs
19
Module LEDs

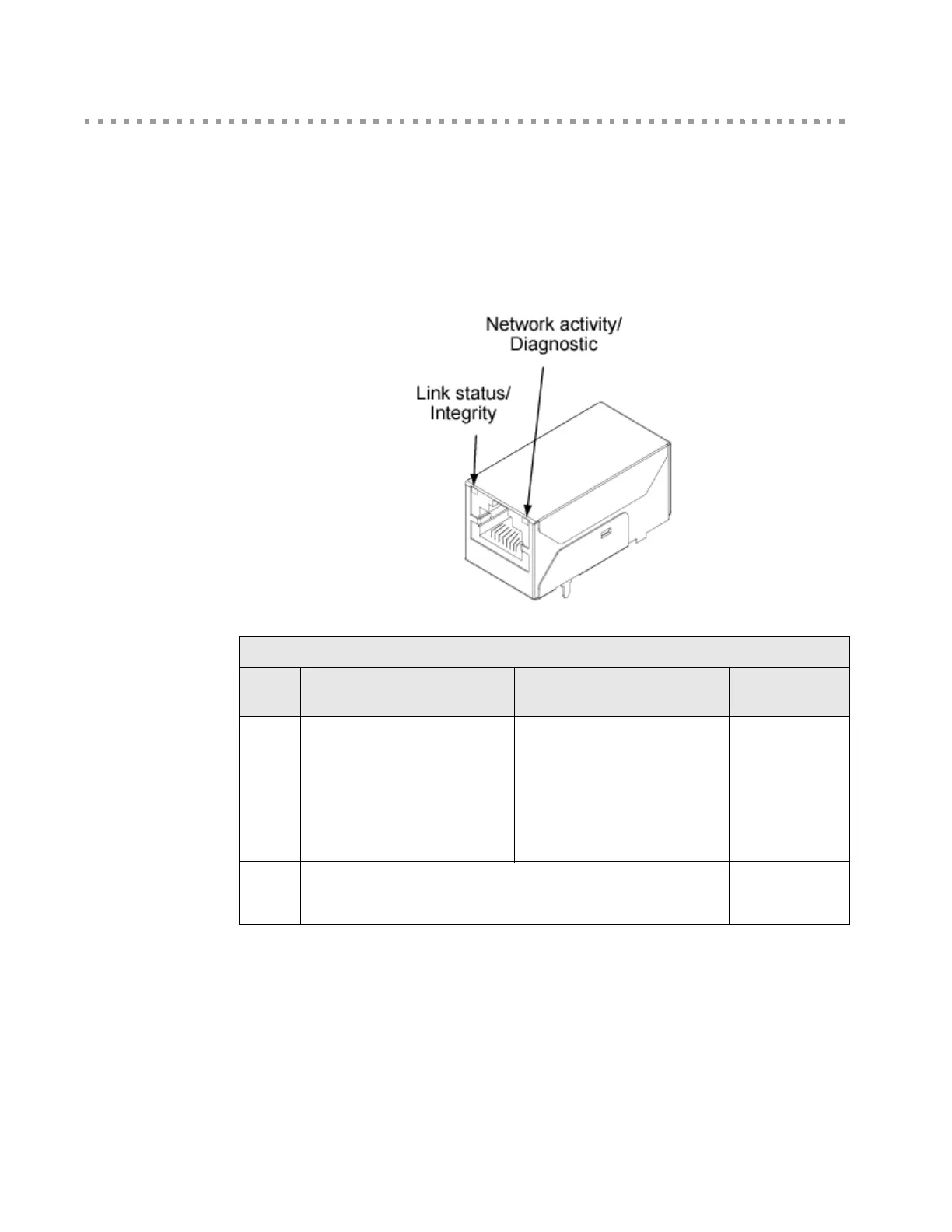

The module has two LEDs that are located near the upper corners of the Ethernet port (see the
following figure). The following table describes the LEDs.
Note: The LEDs are the same for a module with or without a JTAG connector.
LED Locations
LED Behaviors
LED
Digi Plug and Play Firmware
Digi Connect ME
Digi Plug and Play Firmware
Digi Connect Wi-ME
Customizable
Modules
Top left
(yellow)
Network link status:
Off - no link has been detected.
On - a link has been detected.
Network link status:
On - unit is associated with an
access point.
Blinking slowly - unit is in ad
hoc mode.
Blinking quickly - unit is
scanning for a network.
Same as Digi Plug-
and Play Firmware
(Network link
status).
Top
right

(green)
Network activity:
Blinking -network data is transmitted or received.
This LED is
software
programmable.
