Digi Connect ME Hardware Reference

Connectors: Module JTAG Interface
14
Connectors: Module JTAG Interface
The Module’s JTAG Interface Connector is a 14-pin female vertical header that is labeled P11 on the
development board. The connector mates with the JTAG connector on the embedded module. The
Module’s JTAG Connector pins are tied to the debugger connector (see “JTAG Debugger
Connector, P12”).
JTAG Interface Connectors
Since the modules' JTAG connectors are mounted on the bottom side of the modules, the pin 1
location is mirrored from that of the Development board's mating JTAG connector (P11). The
resulting pin mapping is indicated in the Module JTAG Interface Connector Pin Assignments table
below.

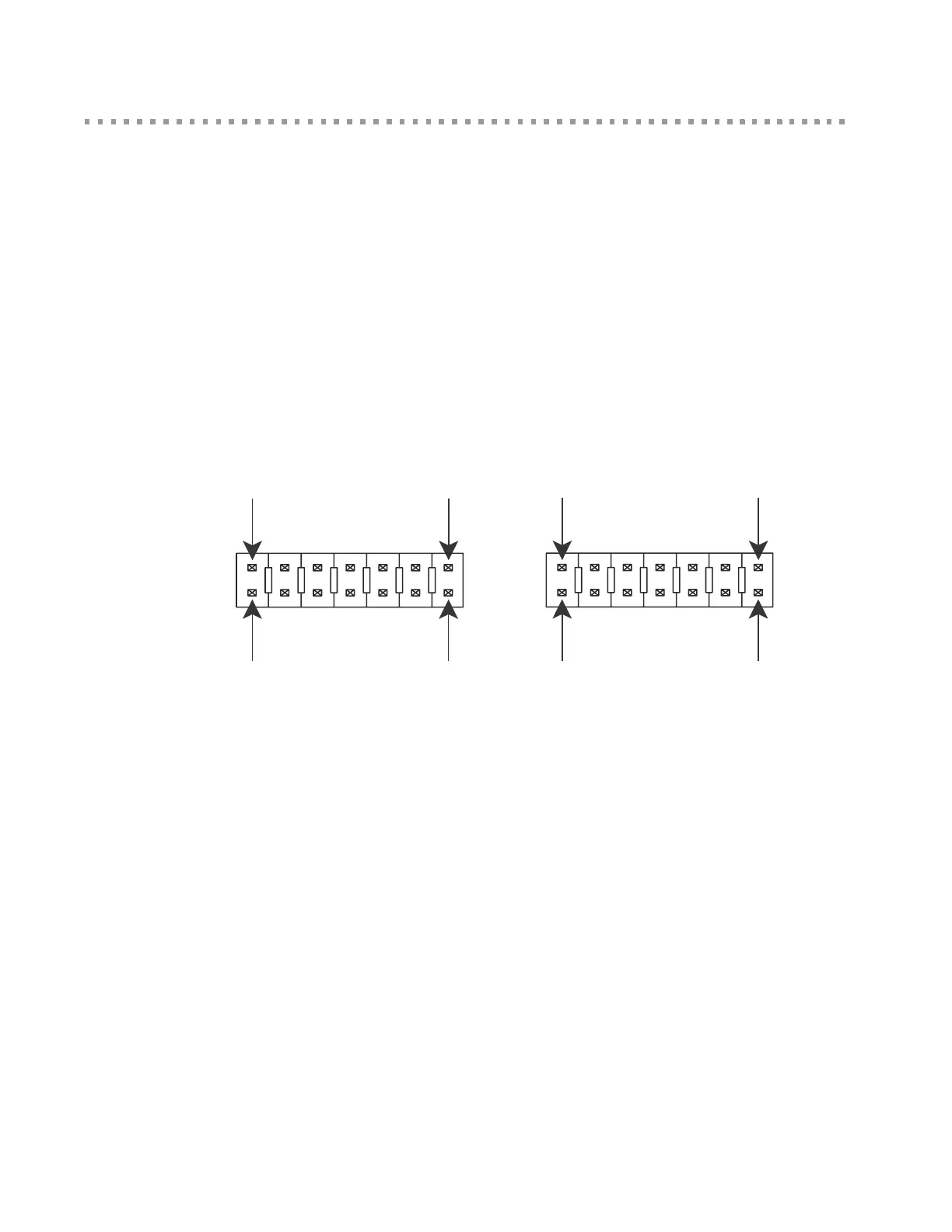

Pin 1
Bottom side of module (left) and development board from top (right)
ME JTAG Connector
Development Board
JTAG Connector (P11)
Pin 2
Pin 13
Pin 14
Pin 2
Pin 1
Pin 14
Pin 13
(Bottom View)
(Top View)
