Antenna Strength

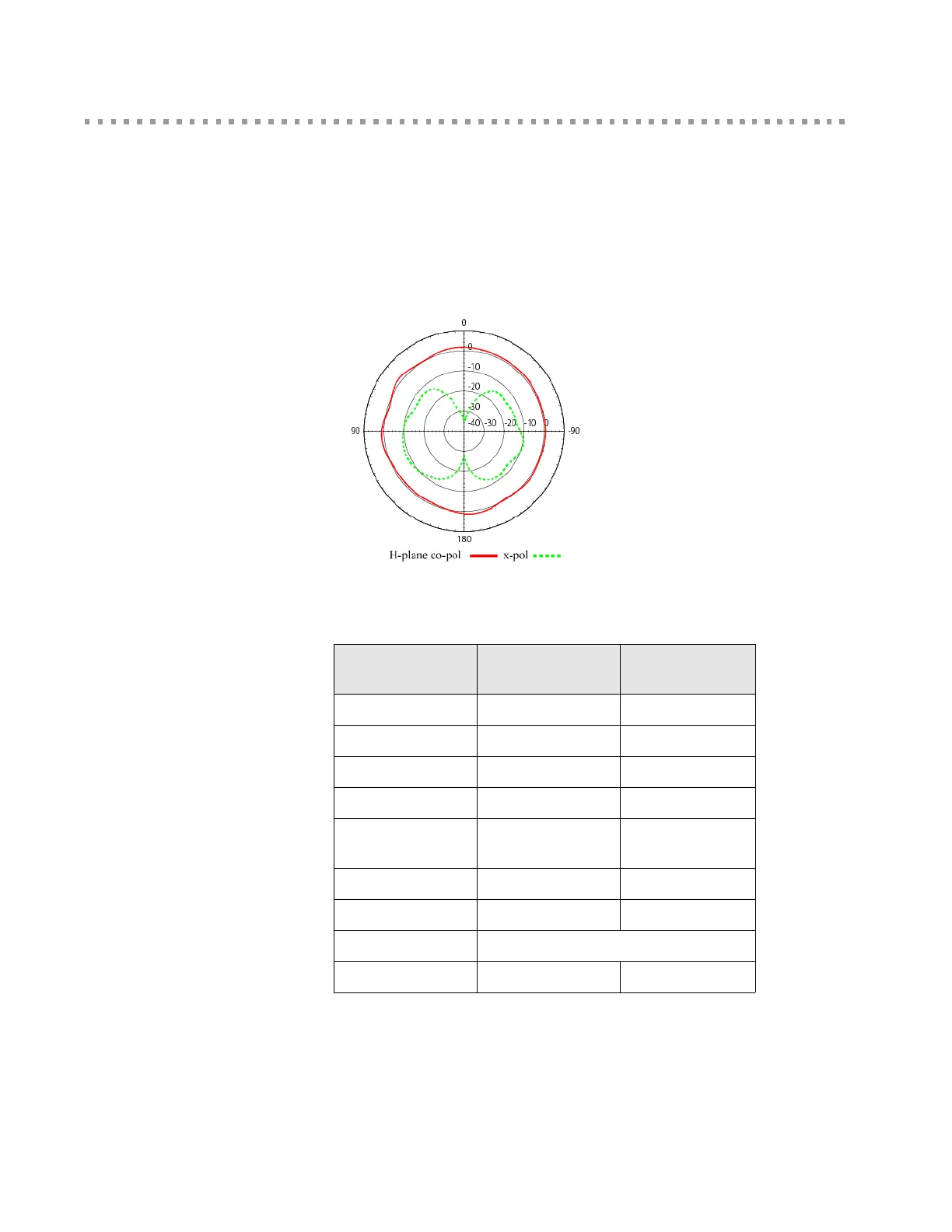

The following diagram demonstrates the strength of the signal received by the whip antenna on both
a horizontal and vertical plane. The diagram shows the magnetic field when the antenna is in a
vertical position. The outside line represents the horizontal plane and the inside dotted line
represents the vertical plane.
Radiation Patterns
Antenna Specifications
Any antenna matching the in-band and out-of-band signal patterns and strengths of the antenna,
whose characteristics are given in the Antenna Description table and the Radiation Pattern graphic
may be used with the Digi Connect Wi-ME.
Antenna
Description
Dipole Desktop
Frequency 2.4~2.5 GHz 2.4~2.5 GHz
Power Output 2 W 1 W
DB Gain 2 dBi 1.8 dBi
VSWR < or = 2.0 1.92 max.
Nominal
Impedance
50 ohm 50 ohm
Dimension 108.5 x 10.0 mm 105 x4.5 mm
Weight 10.5g 11 g
Connector RP-SMA
Part Number DG-ANT-20DP-BG DC-ANT-24DT
