3.4. Unlocking Procedure (Continued) for 5LB. To 50LB. Scales
INITIAL SET-UP PROCEDURES

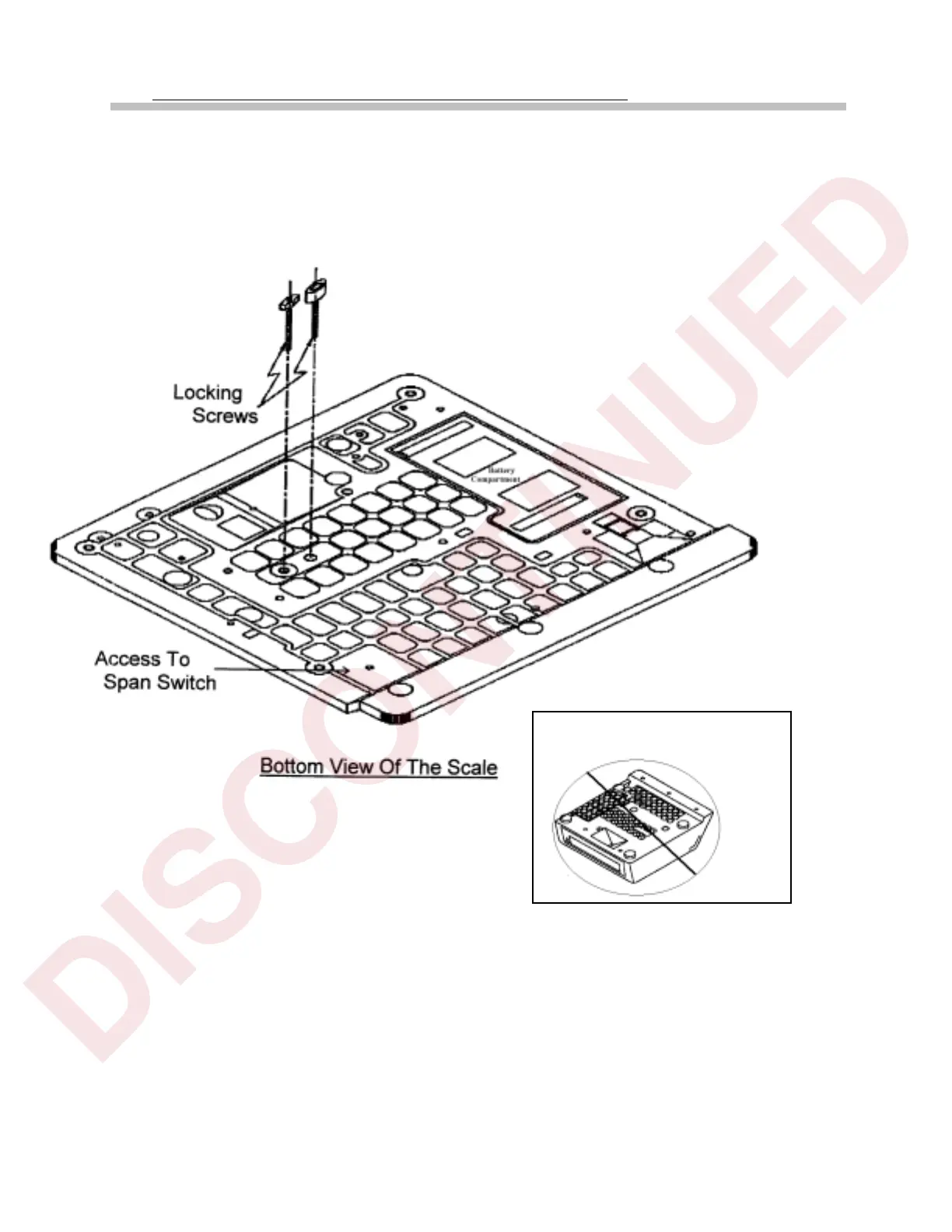

Before setting up the scale, remove the load cell locking screws
located at the bottom of the scale as shown in the diagram below.
To Lock Scale for shipping:
1. Install cap screw finger tight.
2. Install allen screw finger tight,
3. Then install nut, just snug.
Do the following steps before scale calibration.
A) Place the platter on the platter support of the scale.
B) Turn on the power and check that the scale is functioning.
C) For calibration of the scale, use a thin rod to enable the span switch.
Refer to the diagram above for the location of the span switch.
D) Please refer to instructions for Span Adjustment for more detail.
Note: For DC-180 with a remote scale, connect the remote scale before plugging the A/C.
Warning!
Do Not Turn Scale Upside Down.
