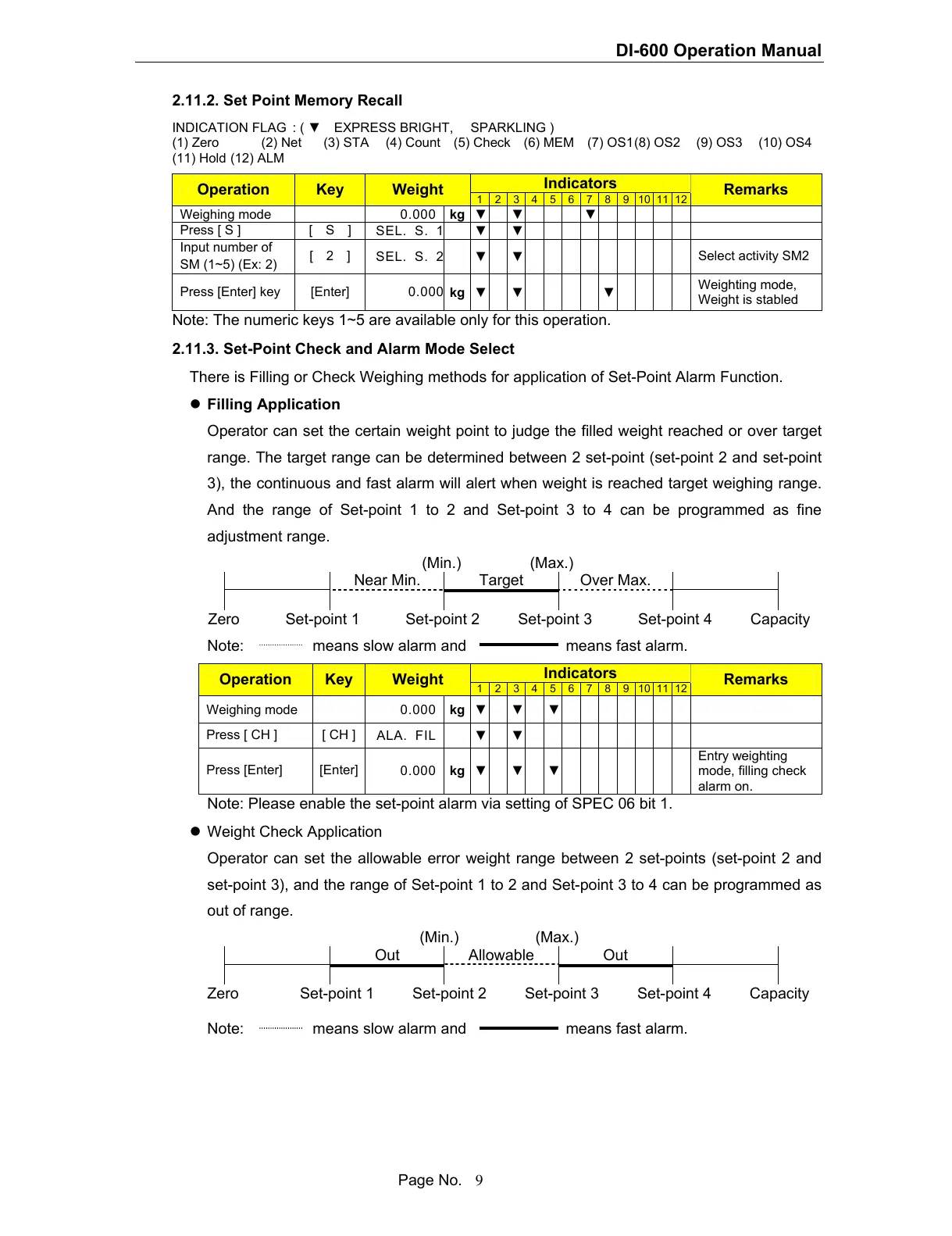

DI-600 Operation Manual
Page No.
9
2.11.2. Set Point Memory Recall
INDICATION FLAG : ( ▼ EXPRESS BRIGHT, SPARKLING )
(1) Zero (2) Net (3) STA (4) Count (5) Check (6) MEM (7) OS1 (8) OS2 (9) OS3 (10) OS4
(11) Hold (12) ALM
Indicators
Operation Key Weight
1 2 3 4 5 6 7 8 9 10 11 12
Remarks
Weighing mode 0.000
kg ▼
▼
▼
Press [ S ] [ S ]
SEL. S. 1
▼
▼
Input number of
SM (1~5) (Ex: 2)
[ 2 ]
SEL. S. 2
▼
▼
Select activity SM2
Press [Enter] key [Enter]
0.000
kg ▼
▼
▼
Weighting mode,
Weight is stabled
Note: The numeric keys 1~5 are available only for this operation.
2.11.3. Set-Point Check and Alarm Mode Select
There is Filling or Check Weighing methods for application of Set-Point Alarm Function.
z Filling Application
Operator can set the certain weight point to judge the filled weight reached or over target
range. The target range can be determined between 2 set-point (set-point 2 and set-point
3), the continuous and fast alarm will alert when weight is reached target weighing range.
And the range of Set-point 1 to 2 and Set-point 3 to 4 can be programmed as fine
adjustment range.
(Min.) (Max.)
Near Min. Target Over Max.
Zero Set-point 1 Set-point 2 Set-point 3 Set-point 4 Capacity
Note: means slow alarm and means fast alarm.
Indicators
Operation Key Weight
1 2 3 4 5 6 7 8 9 10 11 12
Remarks
Weighing mode 0.000
kg ▼
▼
▼
Press [ CH ] [ CH ]
ALA. FIL
▼
▼
Press [Enter] [Enter]
0.000
kg ▼
▼
▼
Entry weighting
mode, filling check
alarm on.
Note: Please enable the set-point alarm via setting of SPEC 06 bit 1.
z Weight Check Application
Operator can set the allowable error weight range between 2 set-points (set-point 2 and
set-point 3), and the range of Set-point 1 to 2 and Set-point 3 to 4 can be programmed as
out of range.
(Min.) (Max.)
Out Allowable Out
Zero Set-point 1 Set-point 2 Set-point 3 Set-point 4 Capacity
Note: means slow alarm and means fast alarm.
To Next Page
