DI-600 Service Manual

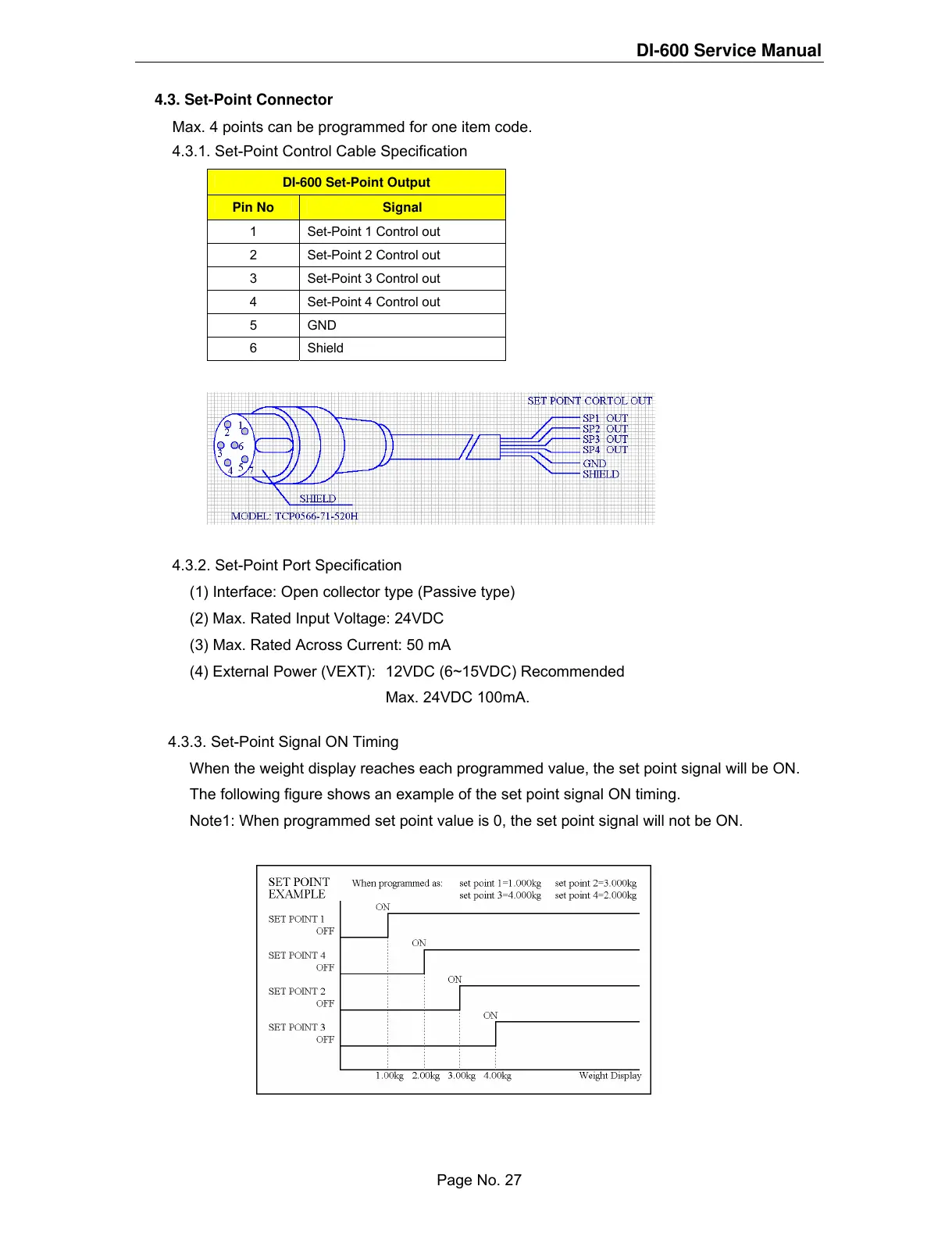

4.3. Set-Point Connector
Max. 4 points can be programmed for one item code.
4.3.1. Set-Point Control Cable Specification
DI-600 Set-Point Output
Pin No Signal
1 Set-Point 1 Control out
2 Set-Point 2 Control out
3 Set-Point 3 Control out
4 Set-Point 4 Control out
5 GND
6 Shield
4.3.2. Set-Point Port Specification
(1) Interface: Open collector type (Passive type)
(2) Max. Rated Input Voltage: 24VDC
(3) Max. Rated Across Current: 50 mA
(4) External Power (VEXT): 12VDC (6~15VDC) Recommended
Max. 24VDC 100mA.
4.3.3. Set-Point Signal ON Timing
When the weight display reaches each programmed value, the set point signal will be ON.
The following figure shows an example of the set point signal ON timing.
Note1: When programmed set point value is 0, the set point signal will not be ON.
Page No. 27
