[Enter]
0.000
kg ▼
▼
▼
Back weighing mode

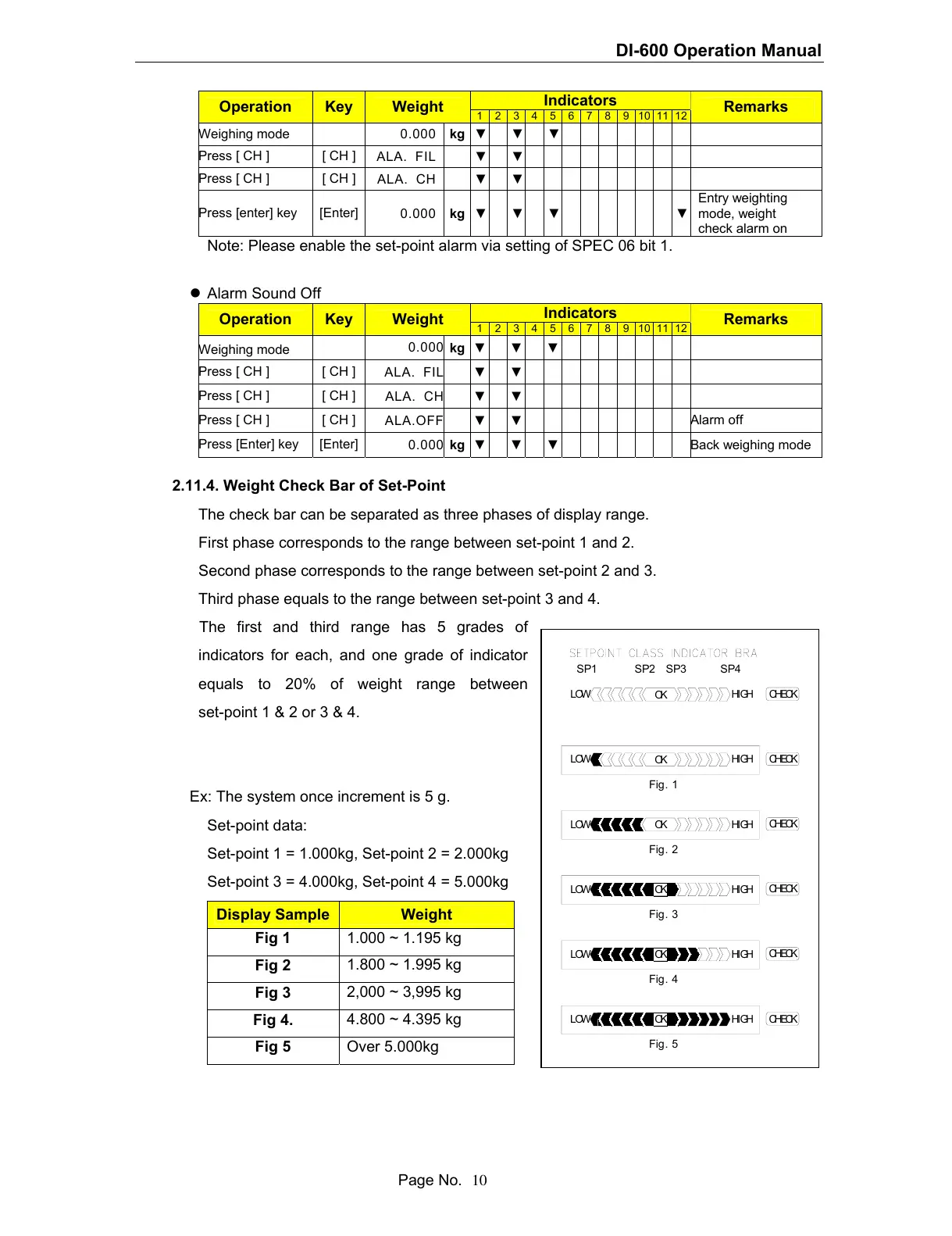

2.11.4. Weight Check Bar of Set-Point
The check bar can be separated as three phases of display range.
First phase corresponds to the range between set-point 1 and 2.
Second phase corresponds to the range between set-point 2 and 3.
Third phase equals to the range between set-point 3 and 4.
The first and third range has 5 grades of
indicators for each, and one grade of indicator
equals to 20% of weight range between
set-point 1 & 2 or 3 & 4.
Ex: The system once increment is 5 g.
Set-point data:
Set-point 1 = 1.000kg, Set-point 2 = 2.000kg
Set-point 3 = 4.000kg, Set-point 4 = 5.000kg
Display Sample Weight
Fig 1
1.000 ~ 1.195 kg
Fig 2
1.800 ~ 1.995 kg
Fig 3
2,000 ~ 3,995 kg
Fig 4.
4.800 ~ 4.395 kg
Fig 5
Over 5.000kg
LOW
OK
CH ECK
HI GH
LOW
OK
CH ECK
HI GH
LOW
OK
CH ECK
HI GH
LOW
OK
CH ECK
HI GH
LOW
OK
CH ECK
HI GH
LOW
OK
CH ECK
HI GH
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
SP1 SP2 SP3 SP4
