18

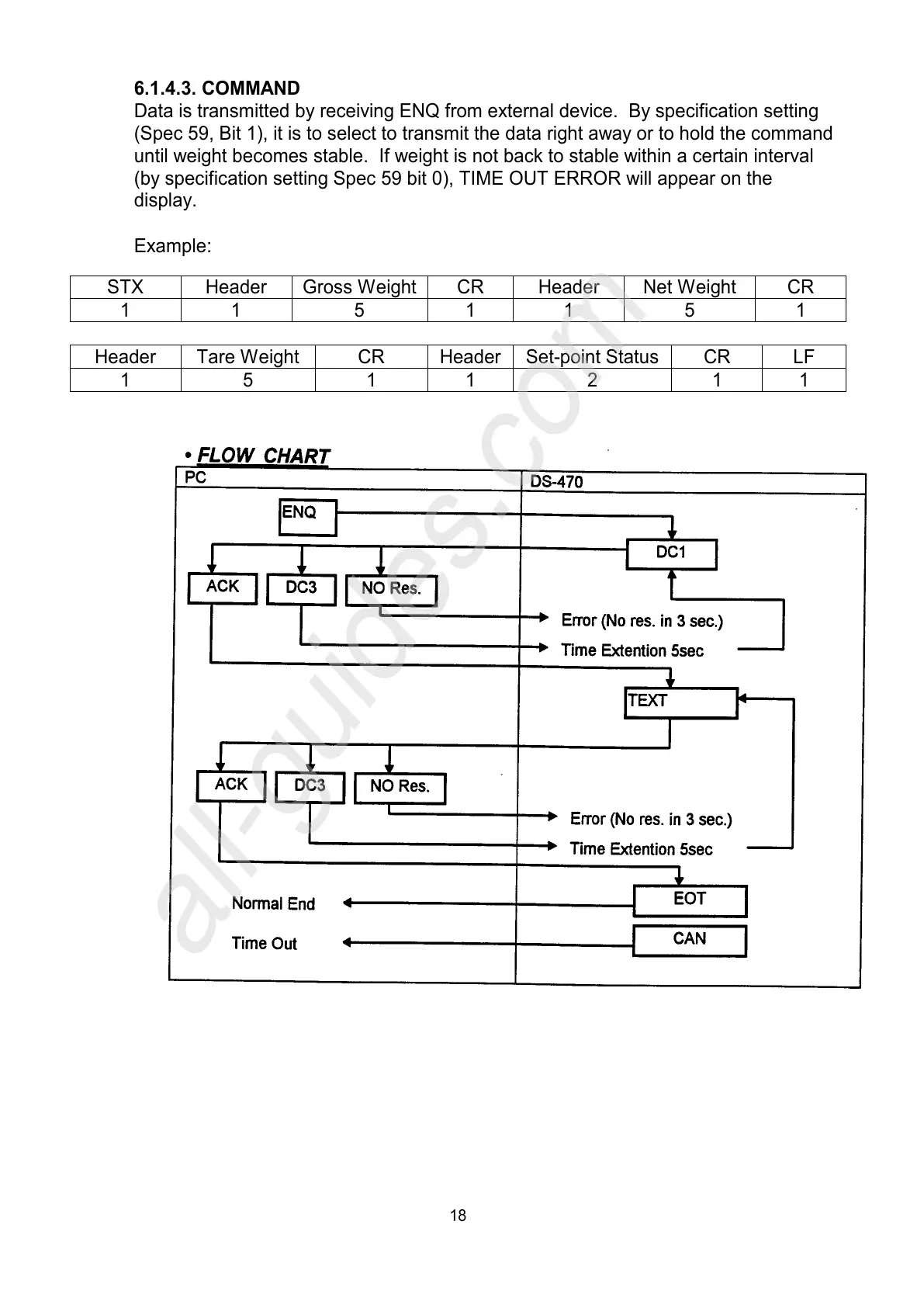

6.1.4.3. COMMAND
Data is transmitted by receiving ENQ from external device. By specification setting
(Spec 59, Bit 1), it is to select to transmit the data right away or to hold the command
until weight becomes stable. If weight is not back to stable within a certain interval
(by specification setting Spec 59 bit 0), TIME OUT ERROR will appear on the
display.
Example:
STX Header Gross Weight CR Header Net Weight CR
1 1 5 1 1 5 1
Header Tare Weight CR Header Set-point Status CR LF
1 5 1 1 2 1 1
To Next Page
