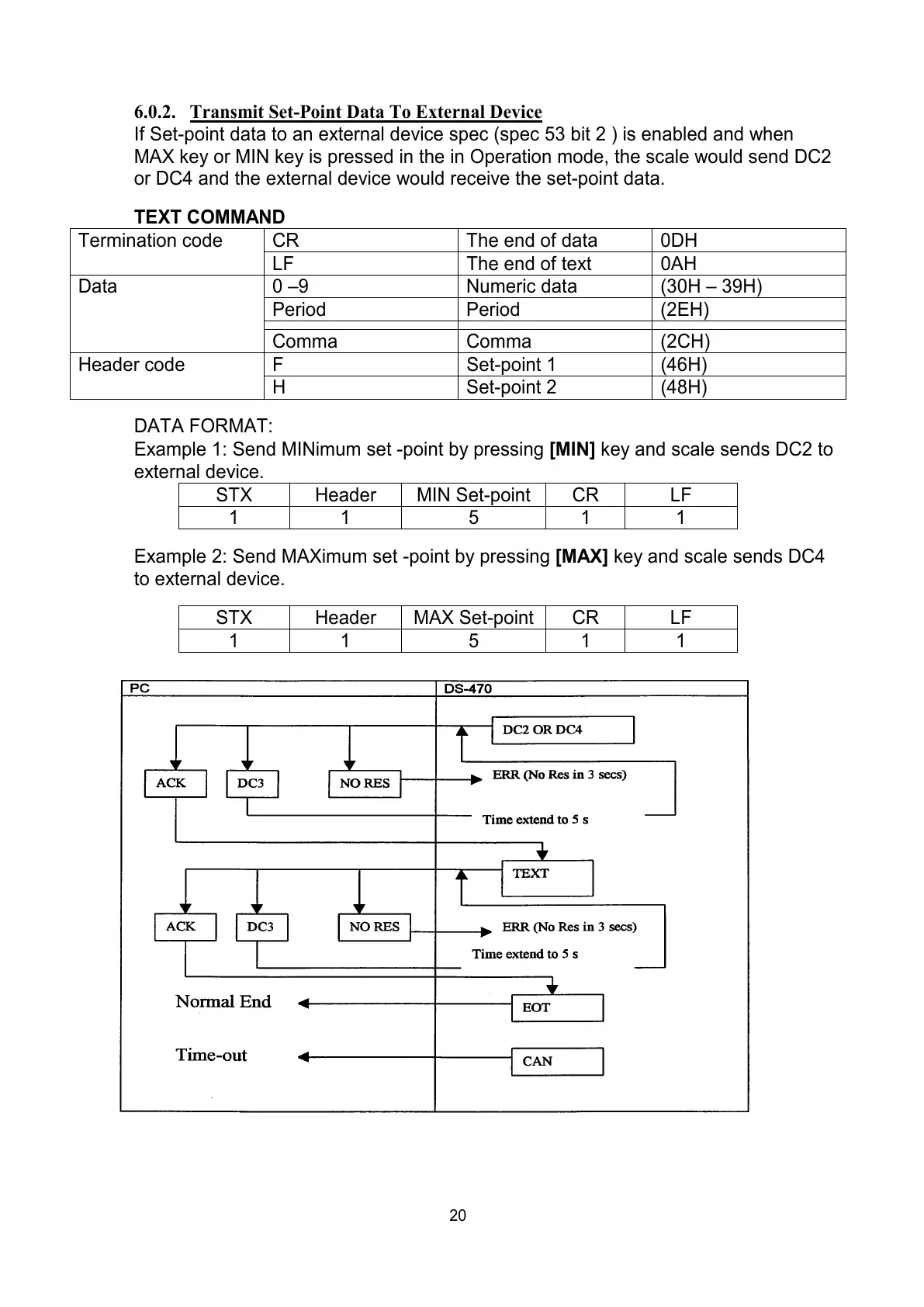

6.0.2. Transmit Set-Point Data To External Device
If Set-point data to an external device spec (spec 53 bit 2 ) is enabled and when
MAX key or MIN key is pressed in the in Operation mode, the scale would send DC2
or DC4 and the external device would receive the set-point data.
TEXT COMMAND
CR The end of data 0DH Termination code
LF The end of text 0AH
0 –9 Numeric data (30H – 39H)
Period Period (2EH)
Data
Comma Comma (2CH)
F Set-point 1 (46H) Header code
H Set-point 2 (48H)
DATA FORMAT:
Example 1: Send MINimum set -point by pressing [MIN] key and scale sends DC2 to
external device.
STX Header MIN Set-point CR LF
1 1 5 1 1
Example 2: Send MAXimum set -point by pressing [MAX] key and scale sends DC4
to external device.
STX Header MAX Set-point CR LF
1 1 5 1 1
