Digi SM-100 Service Manual

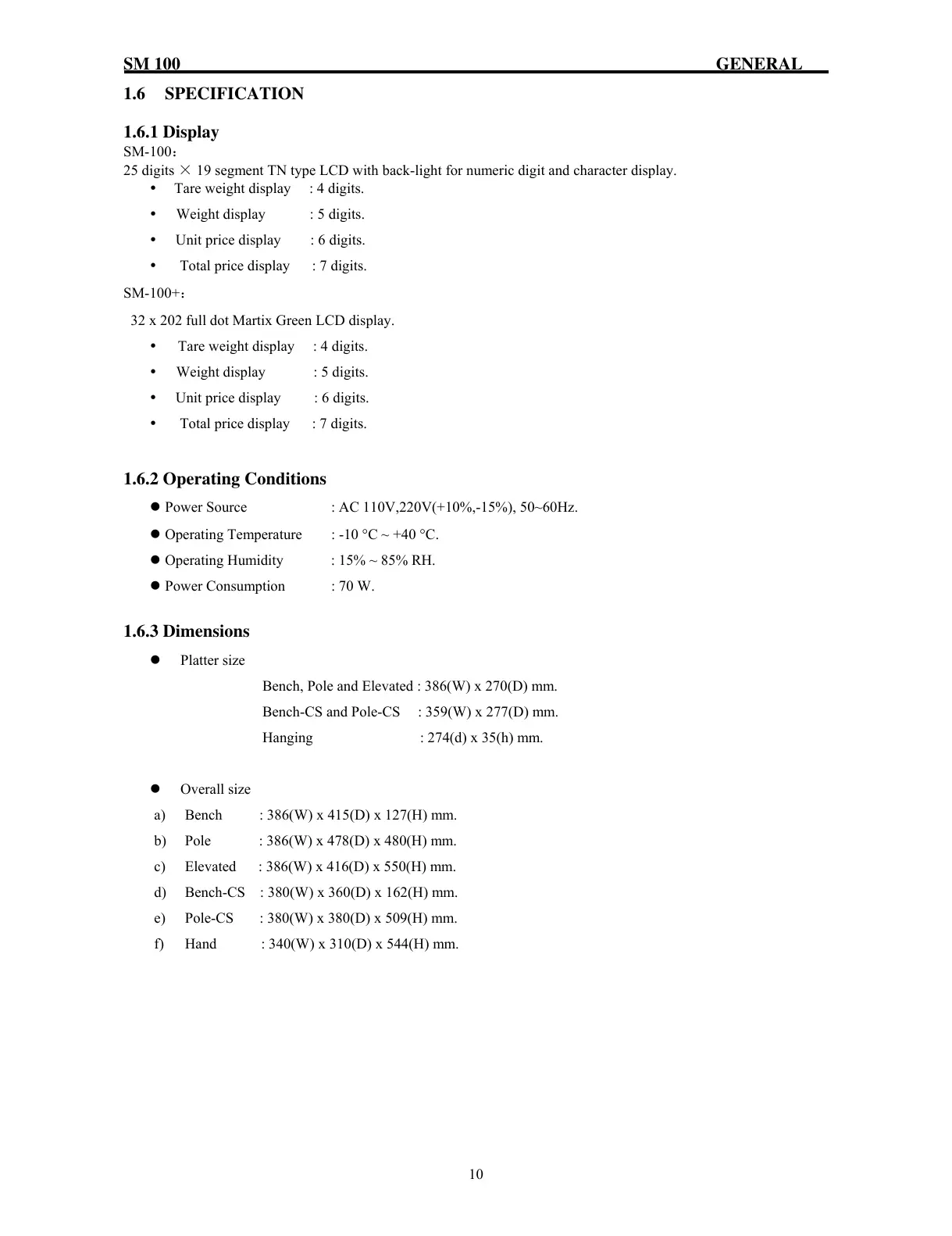

SM 100 GENERAL
10
1.6 SPECIFICATION
1.6.1 Display
SM-100
25 digits × 19 segment TN type LCD with back-light for numeric digit and character display.
„ Tare weight display : 4 digits.
„ Weight display : 5 digits.
„ Unit price display : 6 digits.
„ Total price display : 7 digits.
SM-100+
32 x 202 full dot Martix Green LCD display.
„ Tare weight display : 4 digits.
„ Weight display : 5 digits.
„ Unit price display : 6 digits.
„ Total price display : 7 digits.
1.6.2 Operating Conditions
” Power Source : AC 110V,220V(+10%,-15%), 50~60Hz.
” Operating Temperature : -10 °C ~ +40 °C.
” Operating Humidity : 15% ~ 85% RH.
” Power Consumption : 70 W.
1.6.3 Dimensions
” Platter size
Bench, Pole and Elevated : 386(W) x 270(D) mm.
Bench-CS and Pole-CS : 359(W) x 277(D) mm.
Hanging : 274(d) x 35(h) mm.
” Overall size
a) Bench : 386(W) x 415(D) x 127(H) mm.
b) Pole : 386(W) x 478(D) x 480(H) mm.
c) Elevated : 386(W) x 416(D) x 550(H) mm.
d) Bench-CS : 380(W) x 360(D) x 162(H) mm.
e) Pole-CS : 380(W) x 380(D) x 509(H) mm.
f) Hand : 340(W) x 310(D) x 544(H) mm.
