SM100 INTERFACE
44

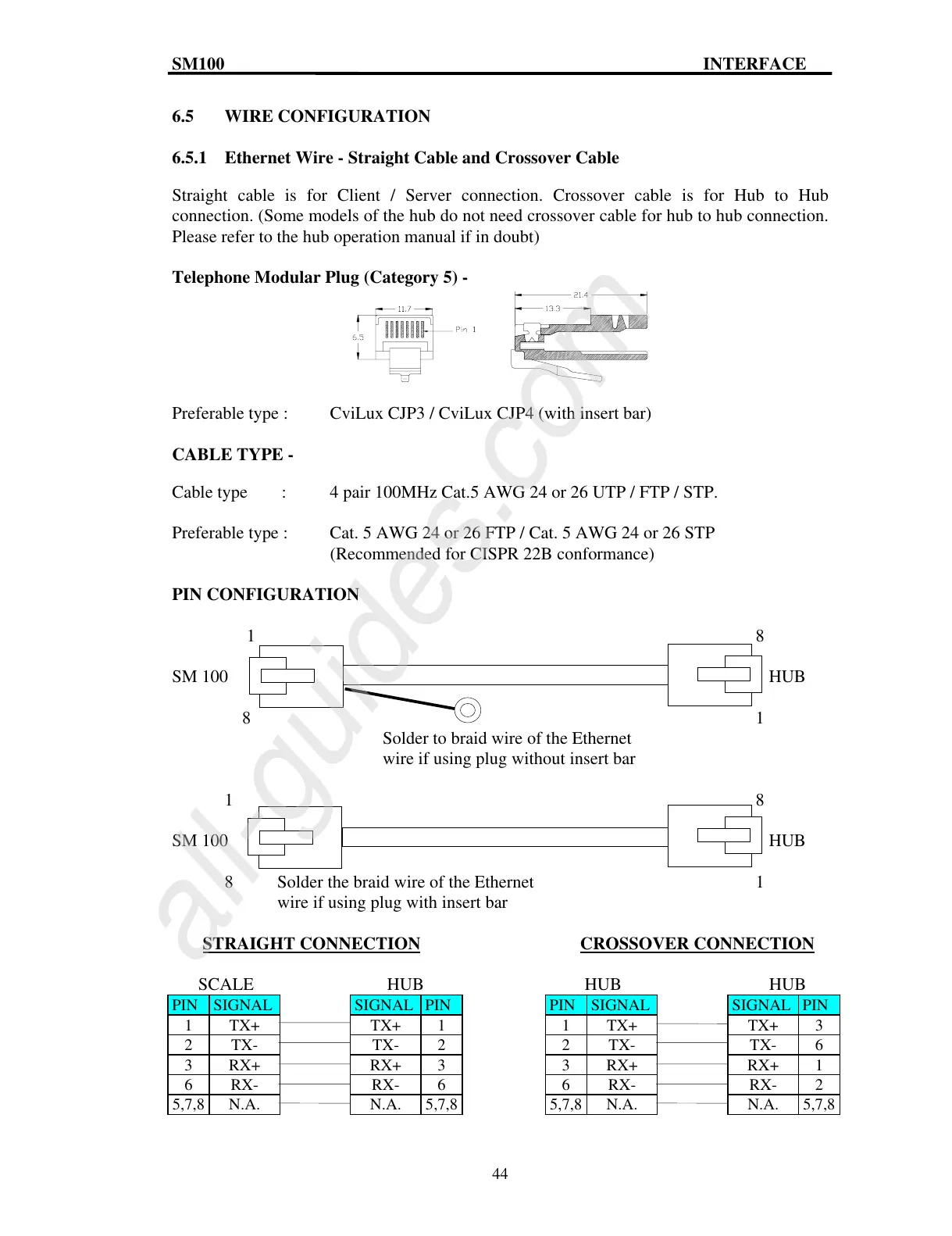

6.5 WIRE CONFIGURATION
6.5.1 Ethernet Wire - Straight Cable and Crossover Cable
Straight cable is for Client / Server connection. Crossover cable is for Hub to Hub
connection. (Some models of the hub do not need crossover cable for hub to hub connection.
Please refer to the hub operation manual if in doubt)
Telephone Modular Plug (Category 5) -
Preferable type : CviLux CJP3 / CviLux CJP4 (with insert bar)
CABLE TYPE -
Cable type : 4 pair 100MHz Cat.5 AWG 24 or 26 UTP / FTP / STP.
Preferable type : Cat. 5 AWG 24 or 26 FTP / Cat. 5 AWG 24 or 26 STP
(Recommended for CISPR 22B conformance)
PIN CONFIGURATION
1 8
SM 100 HUB
8 1
Solder to braid wire of the Ethernet
wire if using plug without insert bar
1 8
SM 100 HUB
8 Solder the braid wire of the Ethernet 1
wire if using plug with insert bar
STRAIGHT CONNECTION
CROSSOVER CONNECTION
SCALE HUB HUB HUB
PIN SIGNAL SIGNAL PIN PIN SIGNAL SIGNAL PIN
1 TX+ TX+ 1 1 TX+ TX+ 3
2 TX- TX- 2 2 TX- TX- 6
3 RX+ RX+ 3 3 RX+ RX+ 1
6 RX- RX- 6 6 RX- RX- 2
5,7,8 N.A. N.A. 5,7,8 5,7,8 N.A. N.A. 5,7,8
To Next Page
