SM100 INTERFACE
39

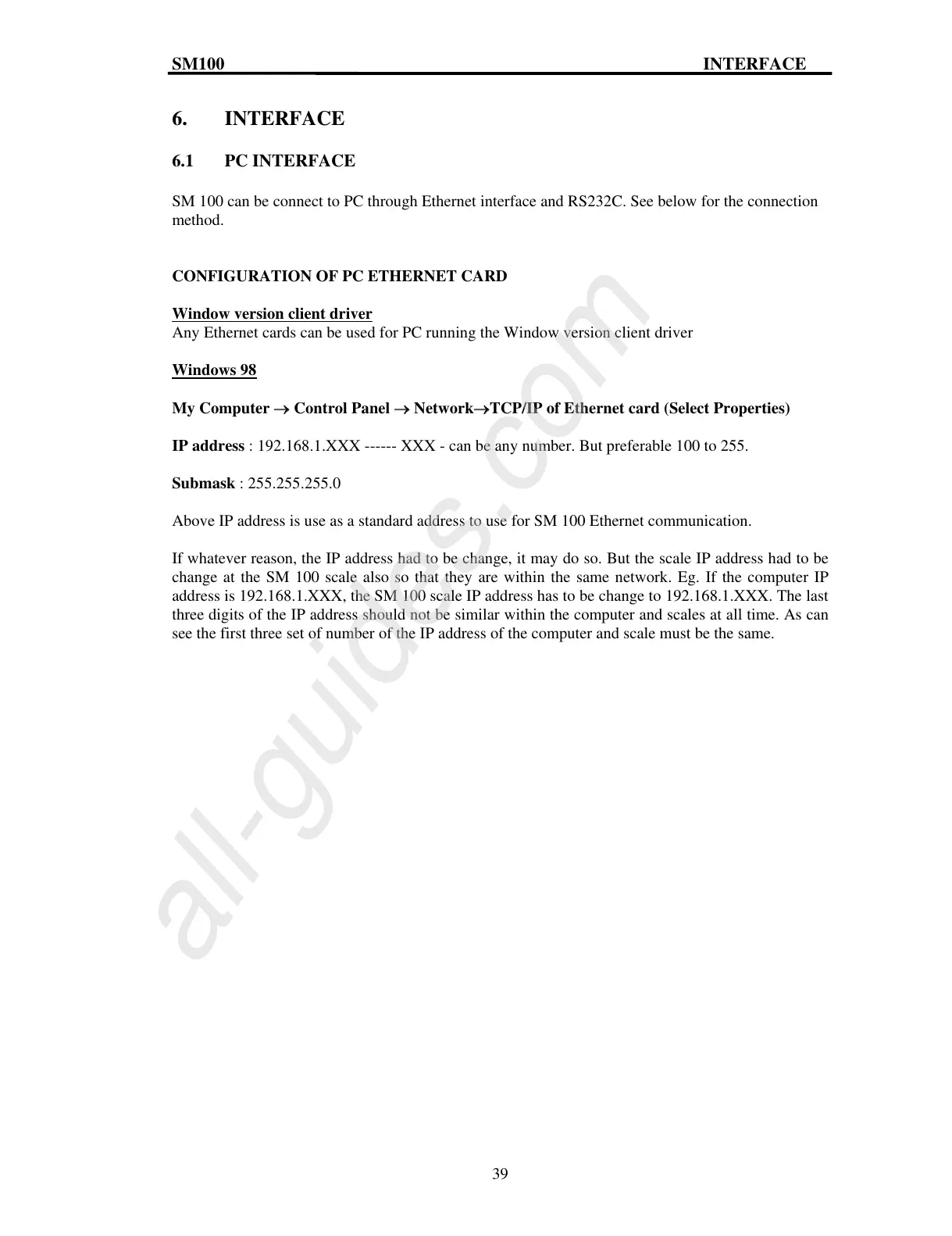

6. INTERFACE
6.1 PC INTERFACE
SM 100 can be connect to PC through Ethernet interface and RS232C. See below for the connection
method.
CONFIGURATION OF PC ETHERNET CARD
Window version client driver
Any Ethernet cards can be used for PC running the Window version client driver
Windows 98
My Computer →
Control Panel → Network→TCP/IP of Ethernet card (Select Properties)
IP address : 192.168.1.XXX ------ XXX - can be any number. But preferable 100 to 255.
Submask : 255.255.255.0
Above IP address is use as a standard address to use for SM 100 Ethernet communication.
If whatever reason, the IP address had to be change, it may do so. But the scale IP address had to be
change at the SM 100 scale also so that they are within the same network. Eg. If the computer IP
address is 192.168.1.XXX, the SM 100 scale IP address has to be change to 192.168.1.XXX. The last
three digits of the IP address should not be similar within the computer and scales at all time. As can
see the first three set of number of the IP address of the computer and scale must be the same.
