Hardware Associate LED functionality

Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide

109

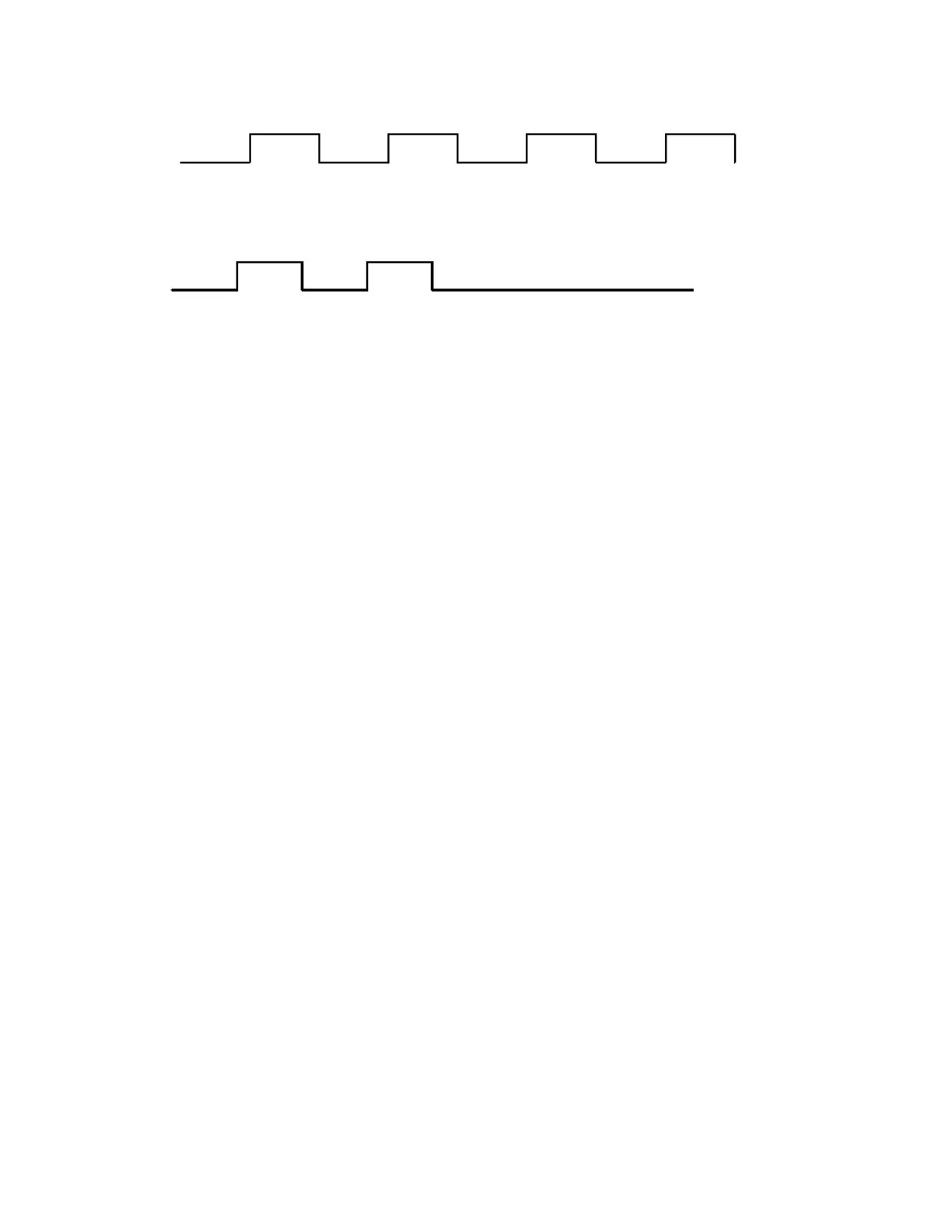

Where the low signal means LED off and the high signal means LED on.

When CI is not 0 or 0xFF, the Associate LED has a different blink pattern that looks like this:
