Troubleshooting Correct a macOS Java error

Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide

241

Correct a macOS Java error

When you use XCTU on macOS computer, you may encounter a Java error.

Condition

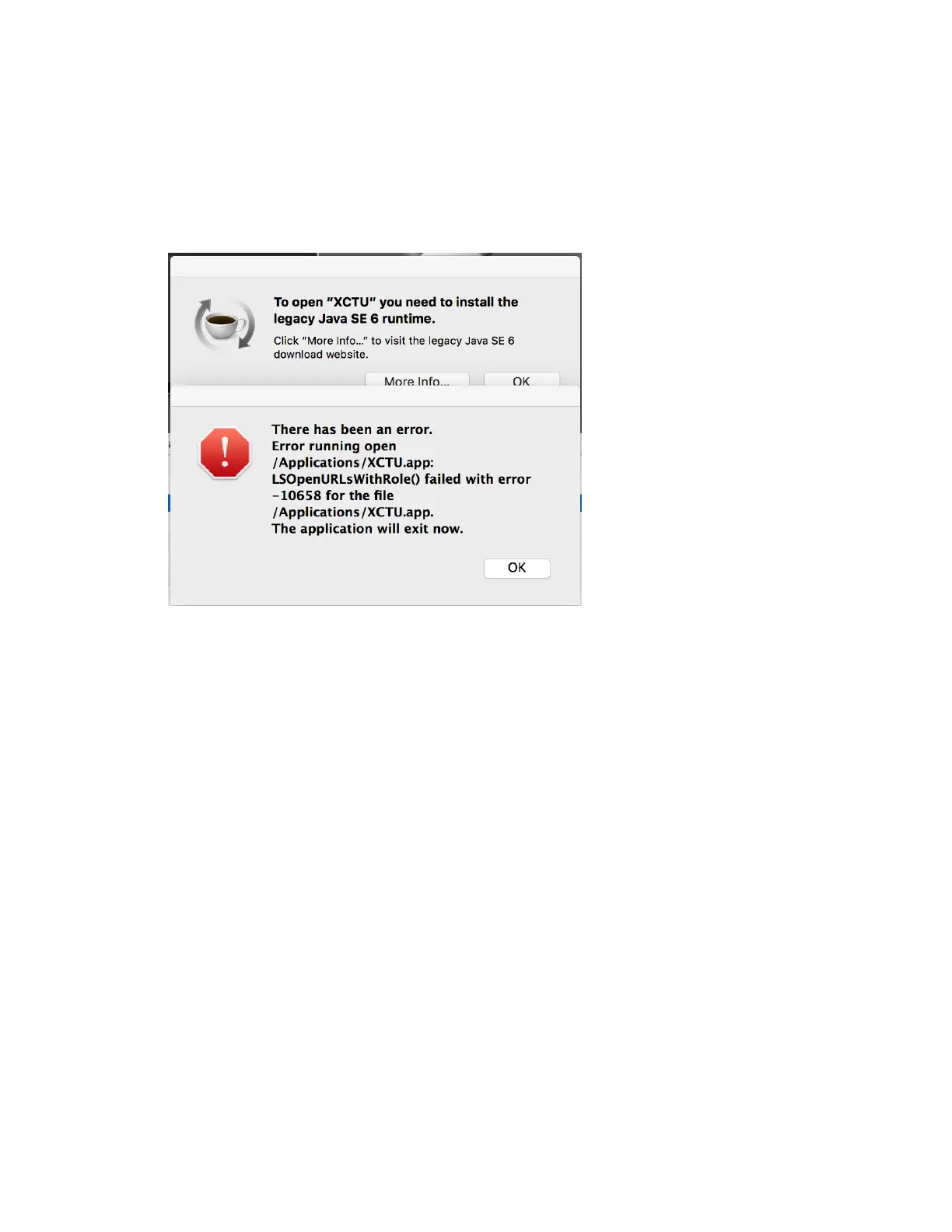

When opening XCTU for the first time on a macOS computer, you may see the following error:

Solution

1. Click More info to open a browser window.

2. Click Download to get the file javaforosx.dmg.

3. Double-click on the downloaded javaforosx.dmg.

4. In the dialog, double-click the JavaForOSX.pkg and follow the instructions to install Java.
