XBee connection examples Connect to the Daytime server

Digi XBee3 Cellular LTE-M/NB-IoT Global Smart Modem User Guide

11. Click in the left pane of the Console log, then type in the Console to query the Daytime server.

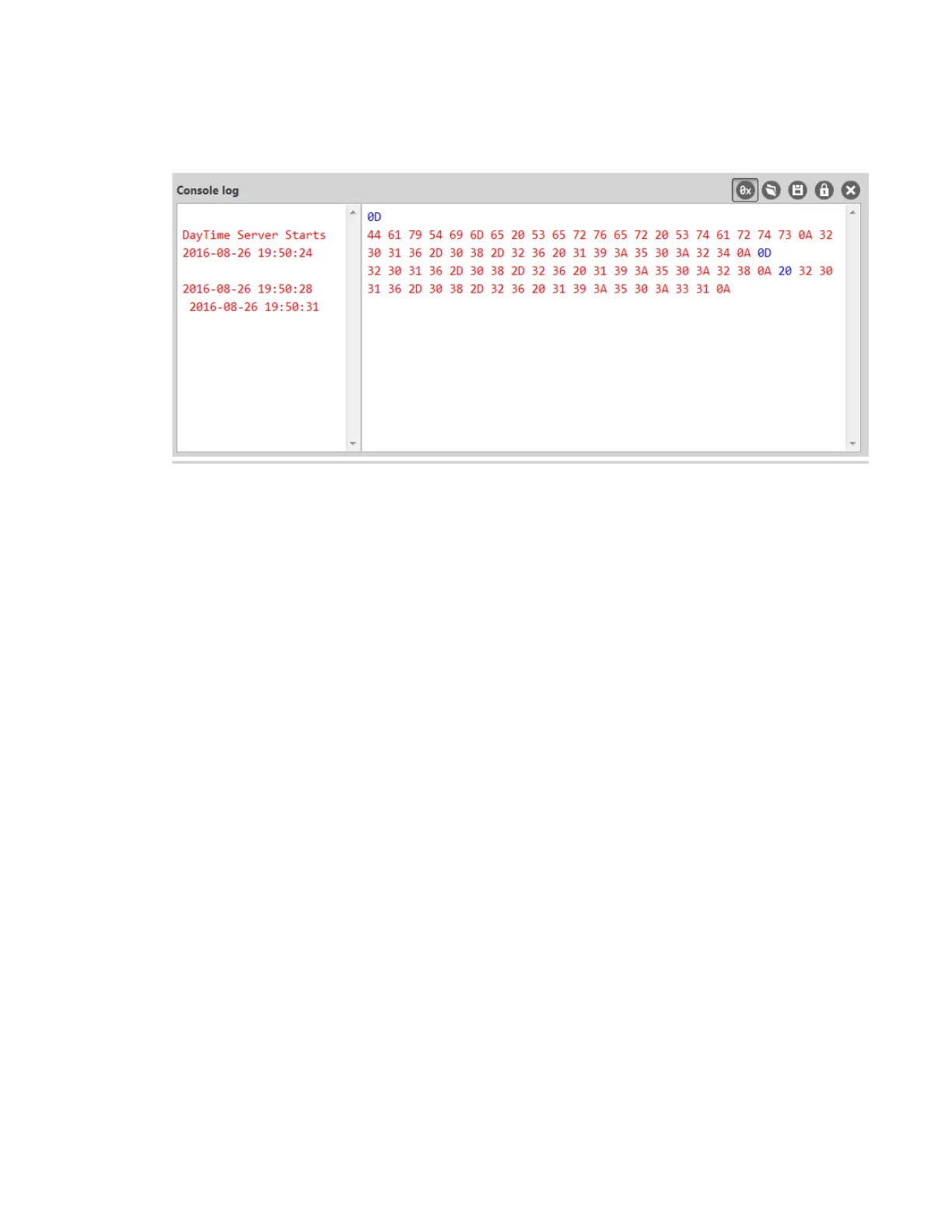

The following screenshot provides an example of this chat.
