DigiDesign D-Command User Manual

Chapter 4: Connecting D-Command 21
Headphone/Cue System Connections
Inputs
• Main Monitor Input (2 channels)
• Cue 1 Input (2 channels), balanced, +4 dBu
• Cue 2 Input (2 channels), balanced, +4 dBu
• Internal Talkback Mic (from internal mic)
• External Talkback Mic, mic level (XMON provides 18V phantom power)
Outputs
• Cue 1 (2 channels), +4 dBu
• Cue 2 (2 channels), +4 dBu
• Headphone (2 channels), to internal headphone jack
• Studio Loudspeaker (2 channels)
• Talkback/Slate Output (1 channel)

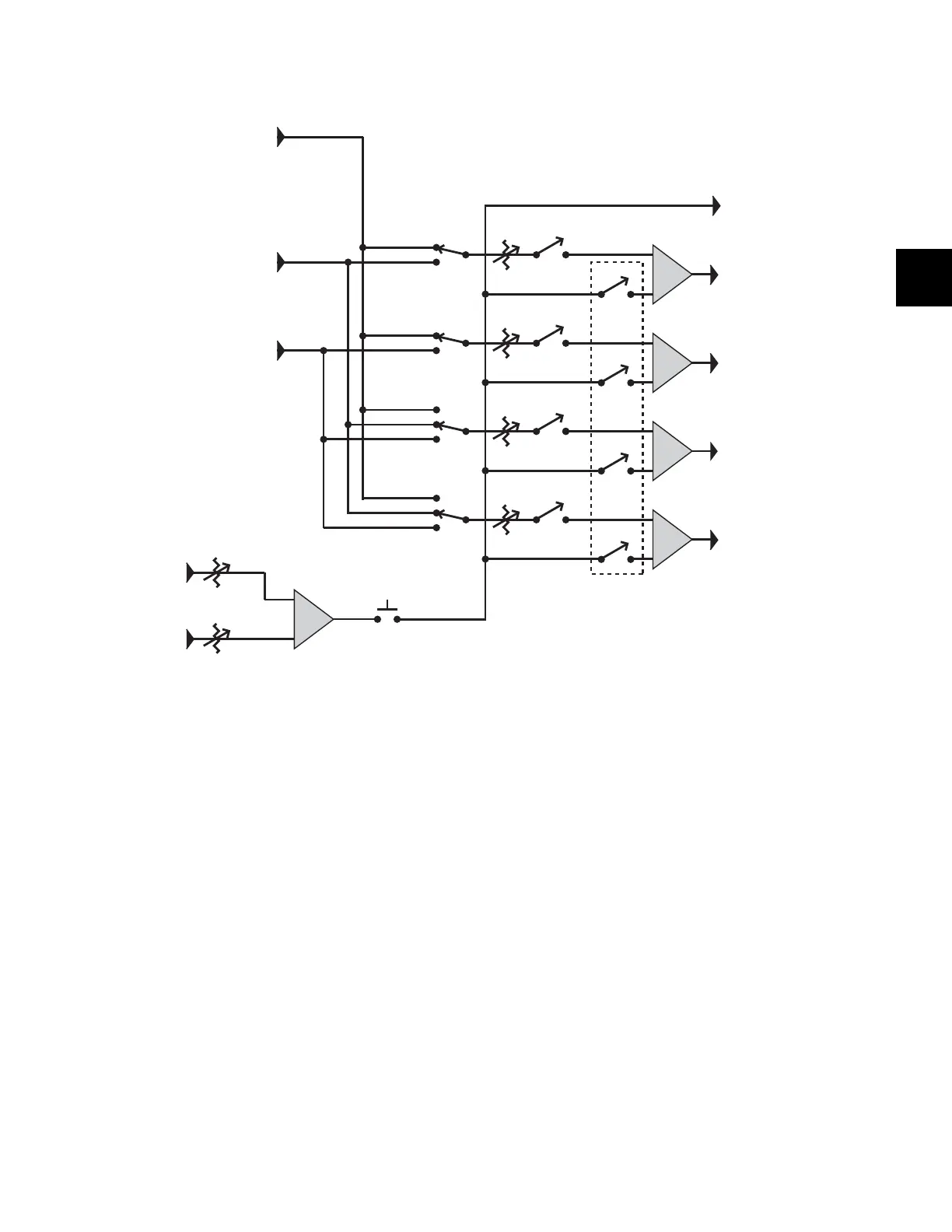

Figure 8. Headphone/Cue system block diagram
Main Monitor
Input
Cue 1
Input
(2 channels)
Cue 2
Input
(2 channels)
Internal
Talkback
Input
External
Talkback
Input
Talkback
switch Talkback
Assign
Internal
Talkback
Level
External
Talkback
Level
Talkback/Slate Out
(1 channel)
Cue 1 Out
(2 channels)
Cue 2 Out
(2 channels)
HP Out
(2 channels)
Studio LS
(2 channels)
(2 channels)
[from Control Room System]
