Chapter 10: Monitor and Meter Sections 87
Headphone/Cue Controls
Cue Input Source Switches
The Headphone/Cue monitor system has three input sources:
• Cue 1 Input (2 channels)
• Cue 2 Input (2 channels)
• Main Monitor Input (2 channels)
Cue Output On/Off Switches
The Cue system has four available outputs:
• Cue 1 (2 channels)
• Cue 2 (2 channels)
• Headphone (2 channels)
• Studio Loudspeaker (2 channels)
The two Cue Outputs, Headphone Output, and Studio Loud-
speaker Output can be active in any combination, including
all on or all off.
The following table shows possible outputs for each input
source. (Talkback can be added to each of the outputs.)
To assign an input source to an output:
1 Press the switch for the output for which you want to assign
an input. The switch will light, and the Monitor LED display
will show the currently selected source.
2 Press the Set Source switch repeatedly to cycle through the
available source choices.
Assign Talkback Switch
The Assign Talkback switch lets you add the talkback signal to
any of the Headphone/Cue system outputs. The Assign Talk-
back switch lights to indicate that talkback is active for a given
output.

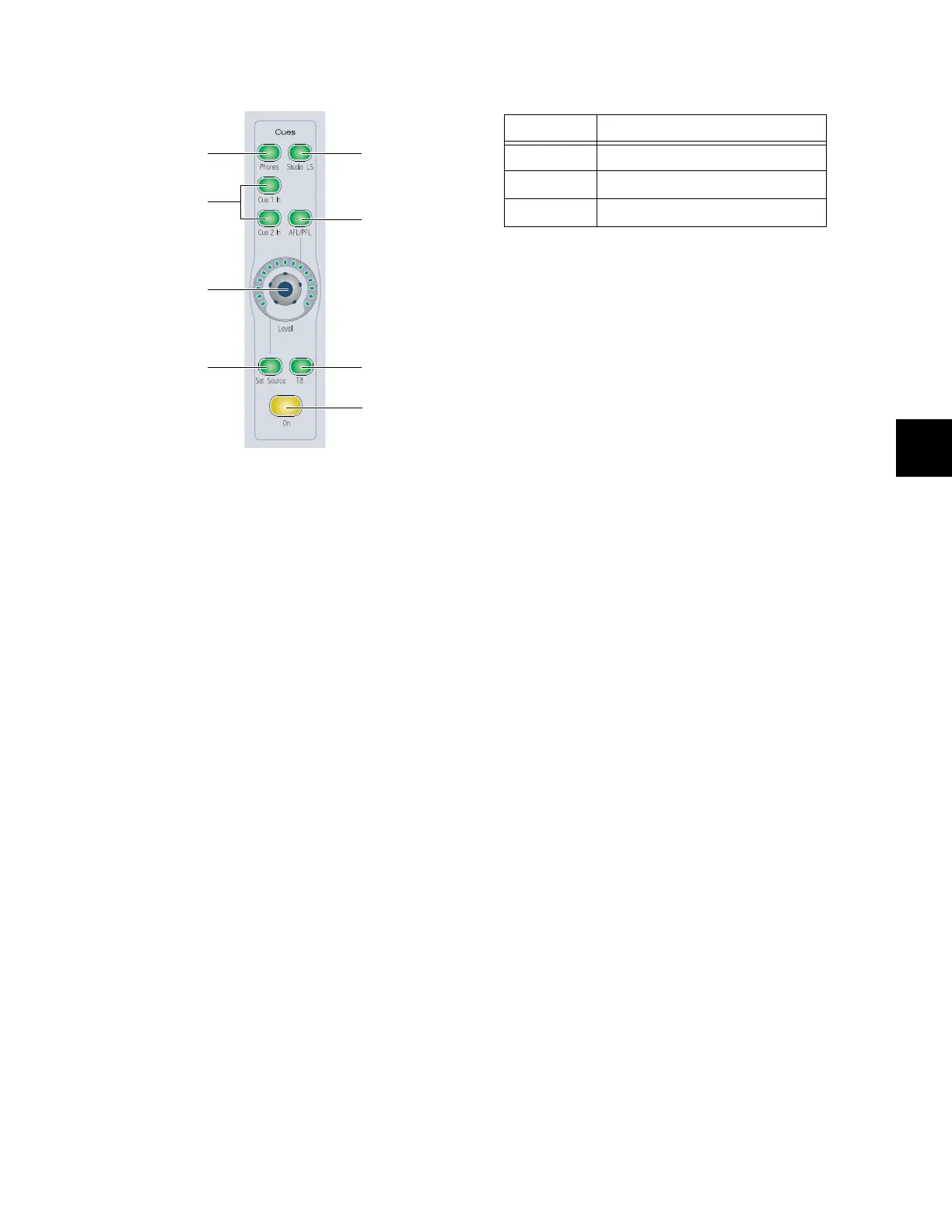

Cue controls
Studio Loudspeaker
switch
AFL/PFL Level
switch
Assign Talkback
switch
Cue Input Source
switches
Headphones
switch
Set Source
switch
Cue Output
On/Off switch
Cue Output
Level control
Input Possible Outputs
Cue 1 Cue 1, Headphone, Studio LS
Cue 2 Cue 2, Headphone, Studio LS
Main Monitor Cue 1, Cue 2, Headphone, Studio LS
