4.1.8 Programming the start address with a Lenz
control unit

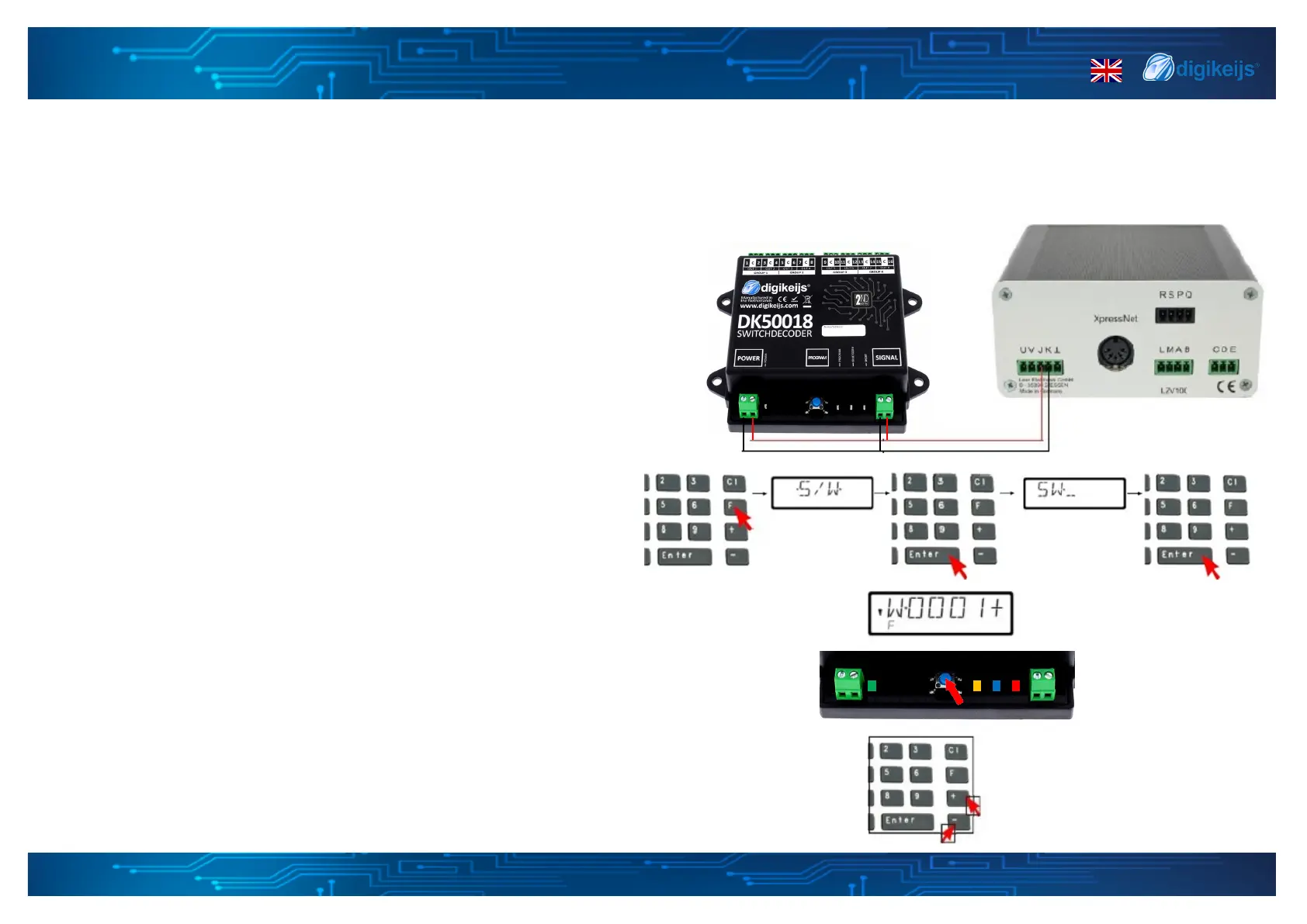

Programming the base address
1. Connect the DK50018 to the main channel output of your
LZV100 or higher.
2. Press [F] unl [*S/W*] appears on the LH100 display, then press
[Enter]. Enter the desired value for the rst switch and press
[Enter] again.
3. The selected address now appears on the display.
4. Press the buon on the DK50018 and the Yellow LED should light
up.
5. Switch the switch address using the [+] and [-] keys on the LH100
control unit. The yellow LED on the module goes o when
switching to the selected address conrming that it is stored as
the start addres.
